Whether you're designing a throttle linkage, engine shutoff system, or seat release mechanism, understanding the structural and dimensional options of your control cable is essential. We summarizes the standard specifications and configuration combinations for Phidix Pull-Only Tension Cables.

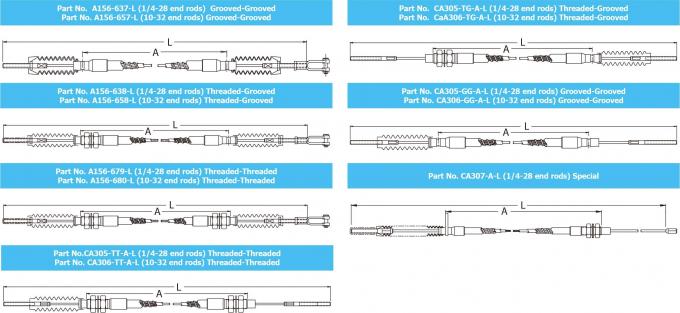

Phidix tension cables support a wide variety of end combinations, allowing integration with clevises, knobs, brackets, or direct panel mounts.
| End A | End B | Typical Use |
| Threaded | Threaded | Panel-mount control or rigid brackets |
| Threaded | Grooved | Lever actuation + spring return |
| Grooved | Grooved | Internal routing with cable stops |
Need a custom end style? See Customization Options →
| Parameter | Value |
| Standard Cable Lengths | 24” – 120” (custom available) |
| Core Material | High-tensile carbon steel |
| Sheath Diameter | 6.0 – 9.5 mm depending on configuration |
| Minimum Bend Radius | 5” (127 mm) |
| Stroke Range | 1.0” – 3.5” typical |
The above ranges are typical values. Final configuration is fully customizable based on your control stroke, cable routing, and end fitting requirements.
| Option | Benefit |
| Permanent Lubrication | Reduces friction over lifecycle |
| Dust Boots / End Seals | Protects cable entry from contaminants |
| Mounting Clips | For inline or edge mounting |
| Threaded Adjuster Sleeves | Enables fine tuning on-site |
Tell us your mounting constraints and operating environment—our team will help you select or configure the right cable size, stroke, and end fitting for your system.
To better understand the overall product design and application range, start with our
Pull-Only Tension Cable Overview→
Contact Phidix for a quote or recommendation.
