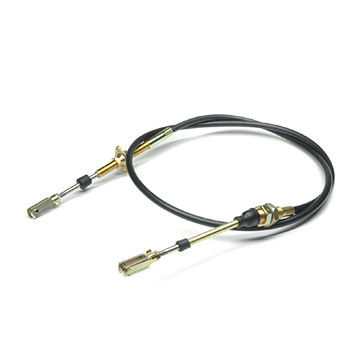

Phidix 4B series push-pull control cables are a series of high-performance push-pull control cables provided by Phidix for precision mechanical drive industrial solutions, designed for durability, smooth operation, and versatility. With four available models (4B60, 4B45-M8, 4B45-M6, 4B30-M5), these cables are built with a multi-strand high-tensile steel inner cable, PTFE core liner, and UV-stabilized polypropylene jackets. These cables are suitable for a wide range of control applications including throttle, clutch, valve actuation, and dashboard installations in marine, utility, and off-road equipment.
4 available models: 4B60-M10, 4B45-M8, 4B45-M6, 4B30-M5
Travel range: 1" to 5" depending on model
Inner cable: Multi-strand high-tensile steel, armored to resist compression
Liner: PTFE, for low-friction and smooth operation
Jacket: UV-stabilized black polypropylene, abrasion and chemical resistant
Reinforced conduit with longitudinal steel wires
Operating temperature: -40°C to +100°C
End fitting types: Swivel flange, bulkhead (threaded), clamp (grooved), dashboard flange
Marine engine throttle and shift control
Utility and industrial machinery
Off-road vehicle dashboard and remote actuation systems
| Model | Travel Range | Type | Suitable Mountings |
|---|---|---|---|
| 4B60 (M10) | 2"–5" | M10 | Bulkhead, Clamp, Dashboard, Swivel |
| 4B45-M8 | 2"-5" | M8 | Bulkhead, Clamp, Dashboard, Swivel |
| 4B45-M6 | 1"–4" | M6 | Bulkhead, Clamp, Dashboard, Swivel |
| 4B30-M5 | 1"–4" | M5 | Bulkhead, Clamp, Dashboard, Swivel |
Explore each model below for detailed dimensions, and technical specifications.
Phidix 4B45 – M8 Details
For custom solutions or assistance in selection, contact our technical team.
