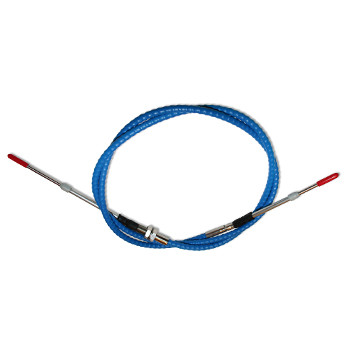

Phidix Blue Max push-pull cables are engineered for ultimate low-friction performance in demanding environments. With 3 inches of travel and a 4-inch minimum bend radius, this aviation-grade cable is ideal for marine shift/throttle control and high-performance racing functions. The PTFE-lined, stainless steel core ensures long life, smooth operation, and zero maintenance.
Travel: 3.00"
| Model | Travel Length | Working Load(lbs) | Max Input Load(lbs) | Min Bend Radius | Rotation angle limit |
Operating temperature |
| VLD | 3" | 40–120 | Up to 180 | 4" | 18° MIN CONICAL SWIVEL |
-65°F to +350°F
|
This push-pull control cable is not only suitable for long-distance operation with complex wiring, but also highly efficient in short distance operation, including
ps:Not Intended For Use as Steering Cable

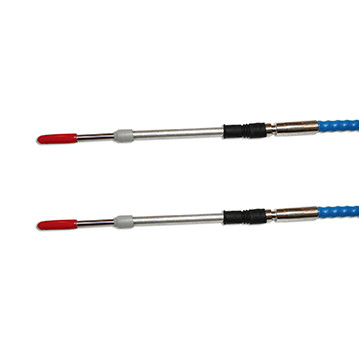

The Phidix Blue Max push-pull cable features a nylon-covered spring wire core with a low-friction PTFE liner for smooth, efficient operation. The outer conduit is blue LDPE, offering excellent resistance to abrasion, fuel, and chemicals. Stainless steel end fittings and plastic seals ensure durability and environmental protection. All materials are ROHS compliant, ideal for demanding marine and racing applications.
