【 Product Description 】

Rod ends, other names like heim joints, fish eye bearing, normally consist of an eye-shaped head with integral shank forming a housing and a standard spherical plain bearing, or a spherical plain bearing inner ring, or a spherical plain bearing inner ring and a sliding layer between the bore of the head and the inner ring. Our metric rod ends category shows rod ends in different materials, structures and features. By materials are chromoly steel, carbon steel, stainless steel. By structures are 2-piece, 3-piece and injection molded design. By feature are female or male thread and right hand thread or left hand thread. By sliding contact surfaces are steel-on-steel, steel-on-brass and steel-on-PTFE.

【 Characteristics 】

The basic type consists of inner and outer rings with spherical sliding spherical contact surfaces. The spherical plain bearing is mainly composed of an inner ring with an outer spherical surface and an outer ring with an inner spherical surface, which can bear a larger load.

【 Applications 】

Spherical plain bearings are widely used in engineering hydraulic cylinders, forging machine tools, engineering machinery, automation equipment, automotive shock absorbers, water conservancy machinery and other industries.

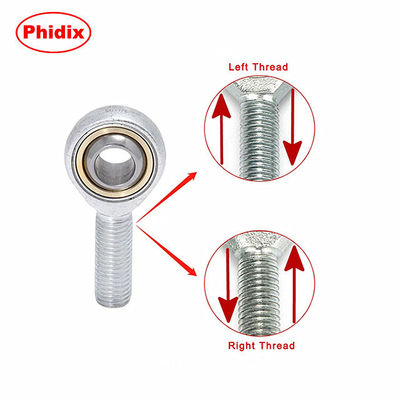

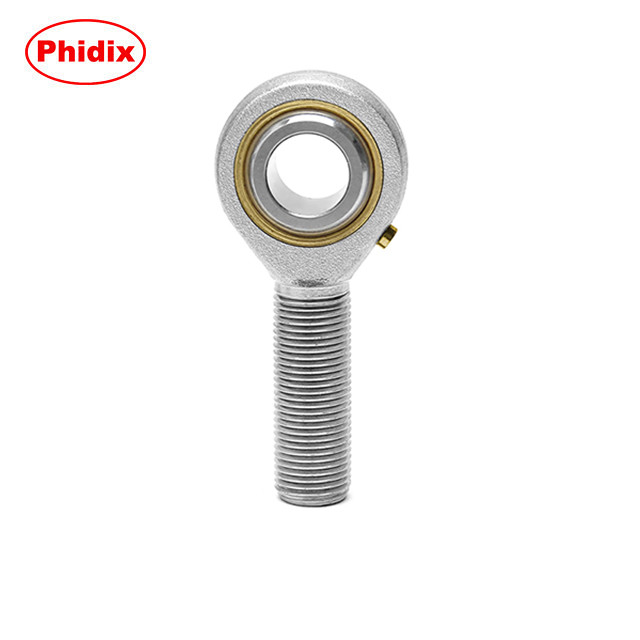

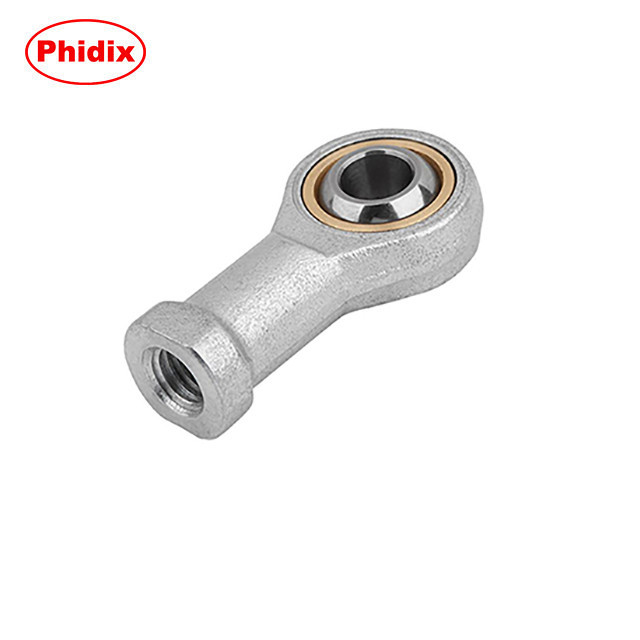

【 Real Picture 】
