| Brand Name: | PHIDIX |
| Model Number: | Control Head |
| MOQ: | 100 Piece/Pieces |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 888 Piece/Pieces per Month |

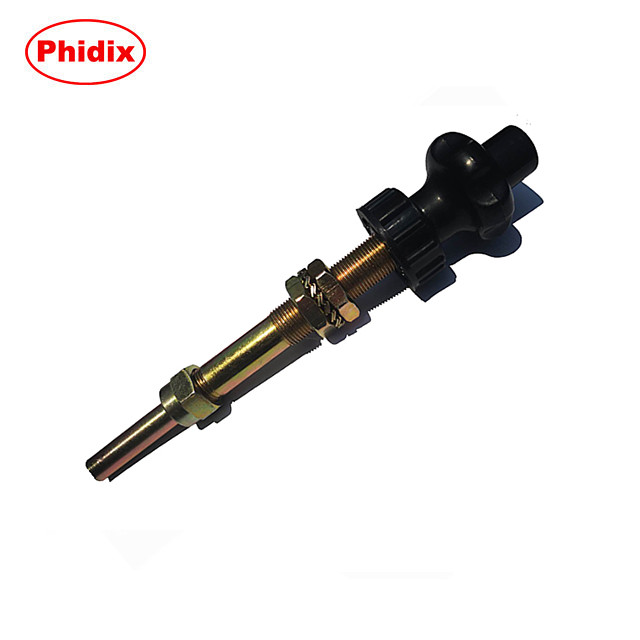

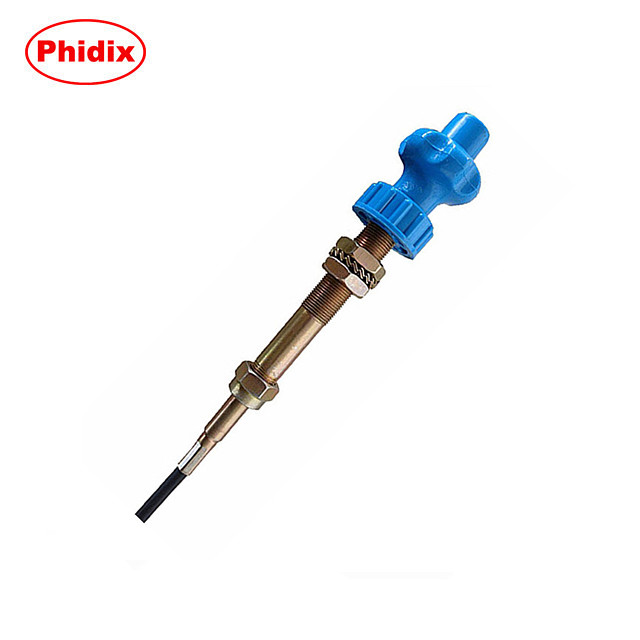

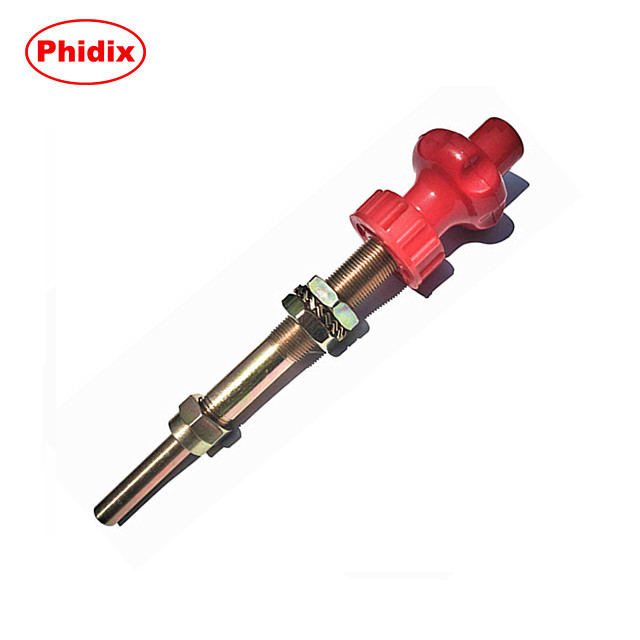

Metric Micro Adjust Control Head For Throttle Control
【 Product Description 】
Micro Adjust control heads are ideal for remote operation of a throttle, regulating valve, or other applications needing precise adjustment capabilities. Depressing the center button allows pushing or pulling the knob to make course travel adjustments. A flexible dust seal protects the internal release mechanism. Rotating the knob clockwise extends the output in the finite mode, and counter-clockwise retracts. Four and one-half turns results in 25mm of linear travel. The maximum recommended load is 9kg. Normal vibration does not affect the micro adjust setting. An optional friction lock accessory is available for applications where vibration is excessive. A disconnect feature and various output end configurations are available to suit a particular application.
【 Applications 】
• Throttle control
• Regulating valve
【 Features 】
• Load:25KG
• Travel: 80mm
• Threaded mount
• Friction lock
• Disconnect
【 Materials】
• Plated Carbon Steel Corrosion-Proof Control Heads
【 Function】
Stepless self-locking,rotatable handle,connected with a piece of cable.
【 Other Related Products】
• Twist Lock
• Non Lock
【 Real Picture 】
【 Our Services 】
If you are interested in our products,please tell us which model,quality you want to order.
A performa invoice will be made for your order.
We will deliver the product ASAP when we receive your payment.
Please contact us without hesitation, we are pleased to welcome to you!!!
