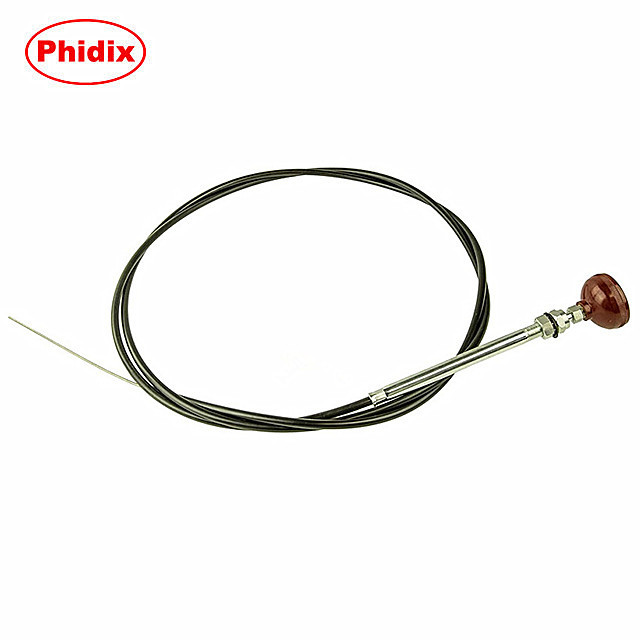

Engaging and disengaging your PTO (Power Take-Off) system should be simple, reliable, and intuitive. The Phidix PTO Control Cable Assembly delivers exactly that—a complete push-pull cable system with an integrated PTO knob and optional engine stop function, engineered to meet the needs of off-road, commercial, agricultural, and marine applications.
Whether you're operating in harsh environments or precision-driven setups, Phidix’s solution ensures tactile control, high durability, and safe operation.
• Dual Function Design: Enables both PTO control and engine stop in one cable
• Push-Pull Operation: Offers smooth linear control with minimal friction
• Locking Mechanism (Optional): Twist-to-lock knob version available for vibration-prone applications
• Knob Options: Red pull-to-stop and black twist-lock types for visual feedback and operational safety
• High-End Materials: Combines stainless steel or plated carbon steel innermember with plastic-coated conduit
• Sealed Construction: Plastic molded end seals resist moisture and dust
• Custom Lengths & Sizes: Available in multiple lengths, diameters, and knob shapes
• OEM Compatibility: Designed to fit mounting brackets of Muncie®, Chelsea®, and similar PTO units
The Phidix PTO Cable is constructed for durability and performance in tough conditions:
Component | Specification |
---|---|
Inner Member | Stainless Steel or Plated Carbon Steel |
Conduit | Plastic-Coated Carbon Steel |
Seals & Knob | High-quality plastic, weather-resistant |
Locking Option | Twist-to-lock knob with secure position holding |
Actuation Type | Manual Push-Pull |
Mounting Interface | Compatible with Muncie® / Chelsea® Brackets |
Need to prevent accidental disengagement? Choose the twist-lock version to ensure the PTO remains engaged under vibration or movement.
• Agricultural Machinery: Tractors, harvesters, balers
• Construction Equipment: Excavators, loaders, concrete mixers
• Industrial Systems: Pumps, generators, compressors
• Commercial Vehicles: Dump trucks, sweepers, service vehicles
• Garden Equipment: Snow blowers, ride-on mowers
• Recreational Vehicles: ATVs, snowmobiles
• Marine Equipment: Winches, engines, auxiliary systems
We offer a variety of standard configurations for both PTO and mushroom-head style knobs. Below are commonly requested part numbers:

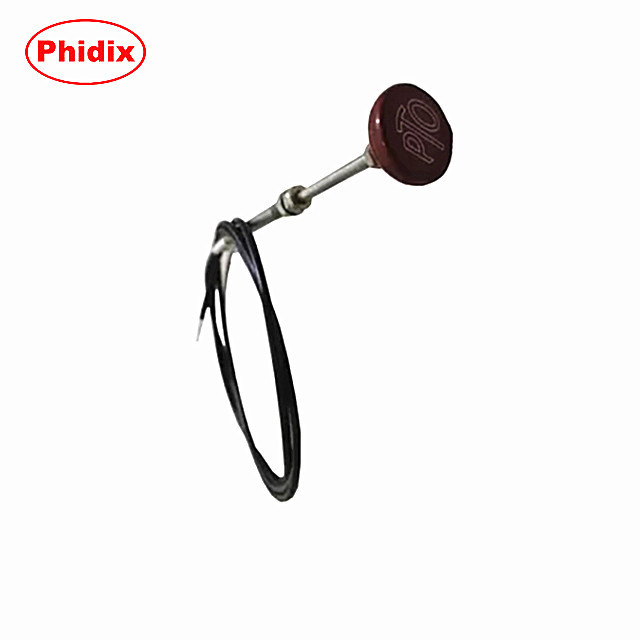

PTO Knob Type:
Model Number | Thread Type |
---|---|
165-183-001 | 1/4-28 UNF |
165-183-002 | 1/4-20 UNC |
165-183-003 | 5/16-18 UNC |
165-183-004 | 5/16-24 UNF |
2" Mushroom-Head Type
Model Number | Thread Type |
---|---|
165-103-001 | 1/4-28 UNF |
165-103-002 | 1/4-20 UNC |
165-103-004 | 3/8-24 UNF |
165-103-006 | 5/16-18 UNC |
A PTO cable is not just a mechanical link—it’s a critical control interface. Phidix's assembly ensures:
• Positive operator feedback
• Secure position holding (with locking option)
• Durability under vibration, moisture, and load
• Cost-effective OEM-level replacement
Can’t find the exact size or thread? We offer tailored builds to meet your needs:
• Custom cable lengths
• Unique knob shapes or materials
• Thread types to match legacy or specialized equipment
Contact us now to request drawings, quotes, or technical support.
