High Performance Quick Disconnect Ball Joint Assemblies For Control Cables

High Performance Quick Disconnect Ball Joint Assemblies For Control Cable

【 Product Description 】

Quick disconnect ball joint assemblies are mechanical components used in various applications for quick and easy assembly and disassembly. These assemblies consist of a ball stud and a socket that allow for angular movement in various directions.

They are commonly used in automotive, aerospace, industrial machinery, and other applications where quick connections and disconnects are required.

【 Application 】

A ball joint used to connect engine control cables to the engine:

• Connects the throttle control cable to the throttle/governor assembly.

• Connects the transmission control cable to the transmission lever.

【 Material 】

- Body: low carbon steel.

- Ball Stud: low carbon steel, heat treated, zinc plated, yellow dichromate treated.

- Sleeve: low carbon steel, zinc plated, yellow dichromate treated.

- Spring: stainless steel.

- Alternative: stainless steel.

【 Drawing 】

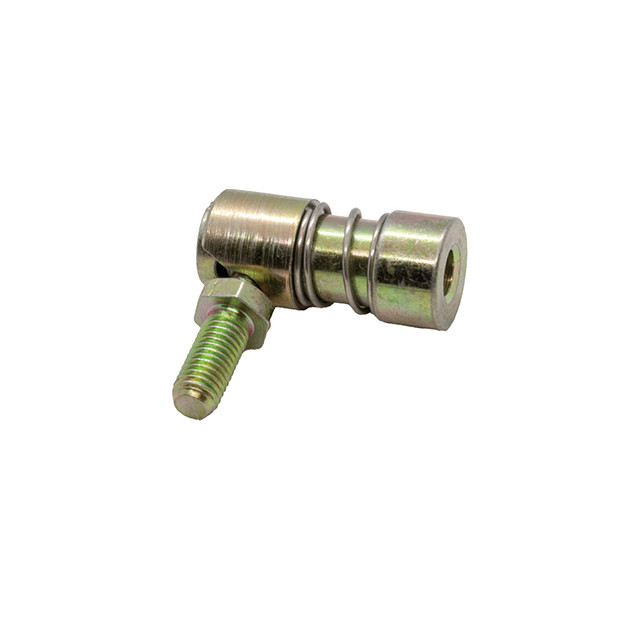

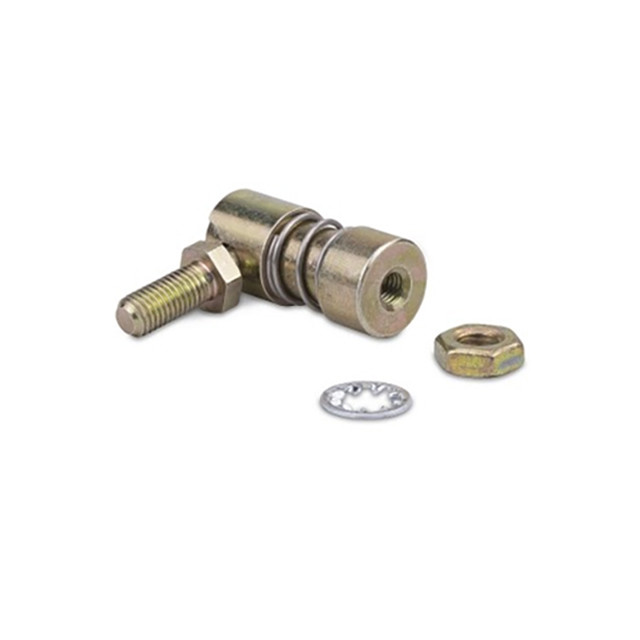

【 Real Picture 】
