| Brand Name: | PHIDIX |
| Model Number: | Customized |
| MOQ: | 10 Piece/Pieces |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 888 Piece/Pieces per Month |

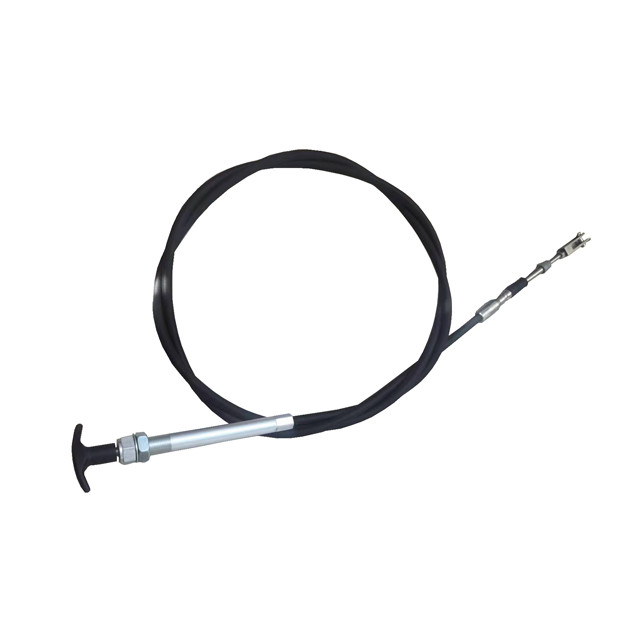

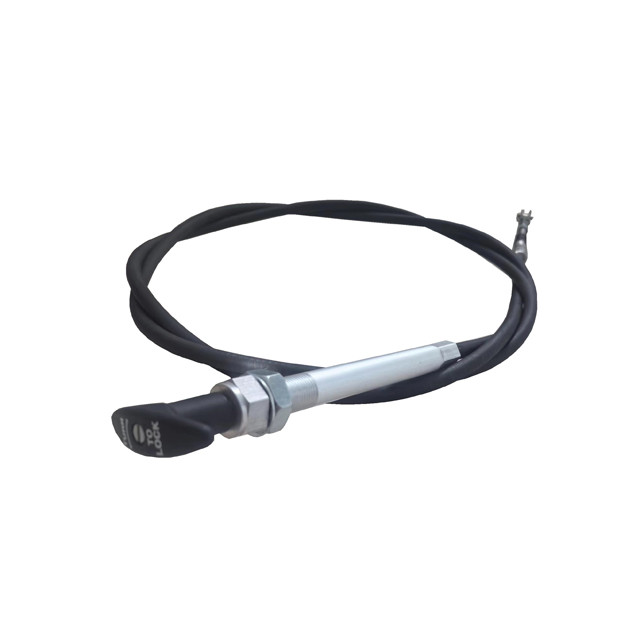

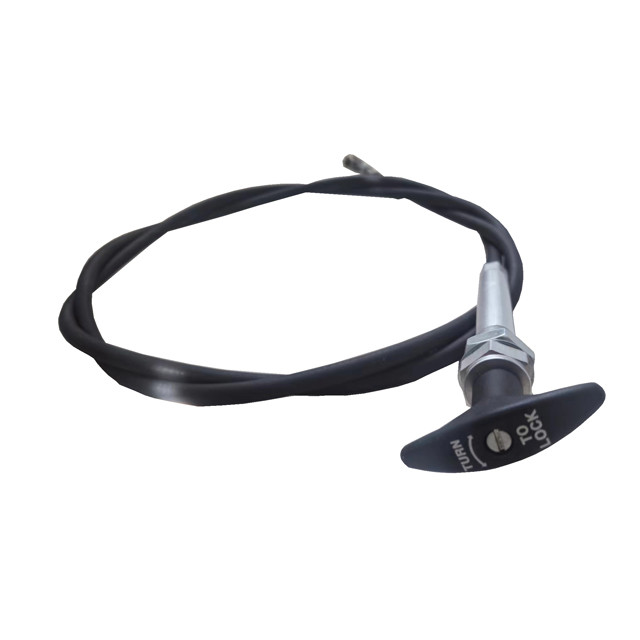

Control Cable Assembly With Twist Locking Handle, 96" Long, Black
【 Product Description 】
This control cable is used where an application calls for the ability to “lock in” a specific position. A “T” handle allows movement of the cable the entire length of the stroke. When the desired position is achieved, simply twist the handle a 1/4 turn to lock the position in place. Used widely in engine stop, engine choke, latch, and valve operations. These cables feature a combination plastic and plated metal body. Permits high torque installations and have a rugged locking collet to provide smooth, positive action. Assorted standard knob options available.
【 Features 】
• Built tough for push-pull operations.
• Locking feature keeps cable in position.
• Available in lengths from 6 ft to 30 ft.
【 Applications 】
• Engine shut down
• Engine choke
• Latch operation
• Valve operation
【 Function 】
Self-locking,micro adjustment by rotating handle,control a push-pull cable or a pull-only cable.
【 Additional End Fitting Options 】
• Stainless
• Nickel Plated Brass
• Zinc Plated Steel
【 Real Pictures 】
