Push-Pull Control Head Micro Adjustable Series
【 Product Description 】
Micro-adjustable control head is ideal for remote operations of throttles, valves, and other applications where extreme accuracy of adjustment is required. The travel adjustment is produced by depressing the button once the knob has been pulled or pushed. The adjustment is produced by the rotation of the pull knob. Four and a half turns provide a movement result of one inch (25 mm). Normal vibrations should not affect the situation of the MICRO-ADJUSTABLE, with included locking nut for applications under severe vibrations.The mechanism of the pull knob it is protected with a flexible dust cover. He MICRO-ADJUSTABLE control It is recommended for applications with efforts not greater than 20 Lbs / 25 Lbs ~ 10/13Kgf.
【 General Characteristics 】
• Load: 20 lbs. Maximum.
• Travel: maximum 3”.
• Threaded mount.
• Disconnectable manufacturing.
• Quick settings operation.
• For fine adjustments.
• Vibration resistant.
【 Applications 】
• Throttle control
• Regulating valve
【 Material】
• Plated Carbon Steel Corrosion-Proof Control Heads

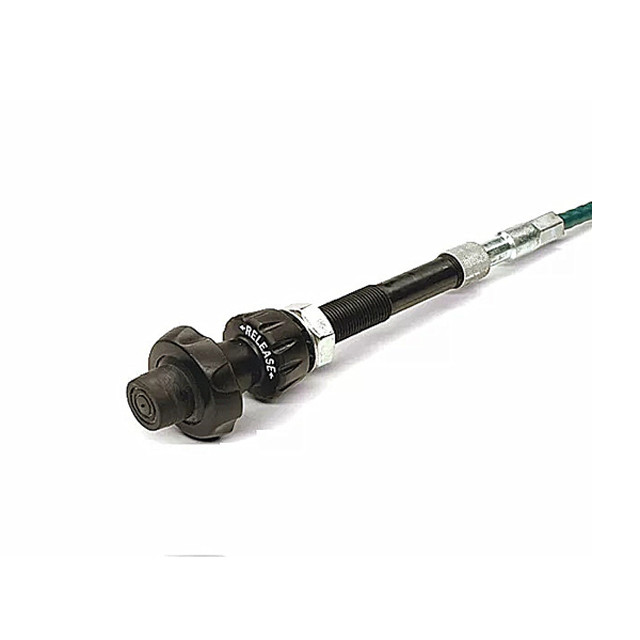

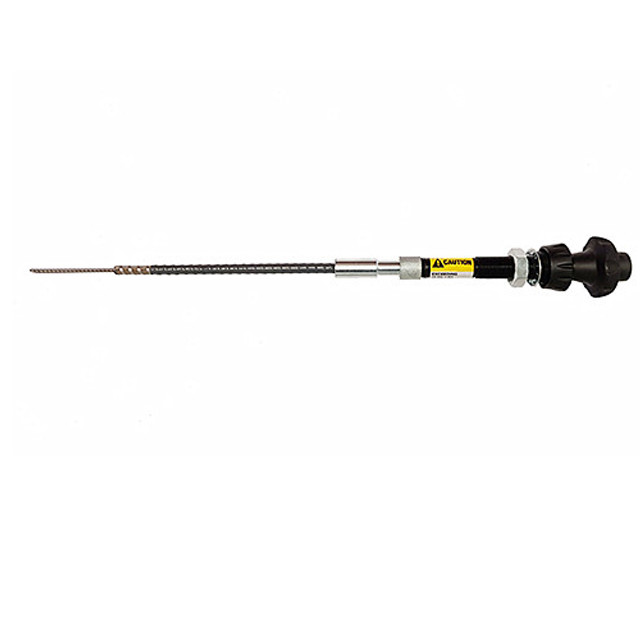

【 Real Picture 】
