High Temperature Resistance Tractor Engine Stop Cable with IATF16949 Certification

10 piece
MOQ
Negotiation
Price
High Temperature Resistance Tractor Engine Stop Cable with IATF16949 Certification
Features Gallery Product Description Request A Quote
Features
Specifications
Series: Pull Only Industrial Control Cable Assembly
Applications: Throttle Control,Blade Engagement,Choke,Latch Release,Window Release,Seat Release
Temperature Range: −65ºF To 185ºF
Material: Brass Conduit Caps And Stainless End Fittings (optional)
Oem: Yes
Ransmission Direction: Pull Only Unidirectional
Highlight:

IATF16949 Certification Engine Stop Cable

,

IATF16949 Tractor Engine Stop Cable
Basic Infomation
Place of Origin: Shang Hai
Brand Name: Phidix
Certification: IATF16949
Model Number: CA306-TT-A-L
Payment & Shipping Terms
Packaging Details: carton or wood case
Delivery Time: 7 - 40 work days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 800 pcs per month
Product Description

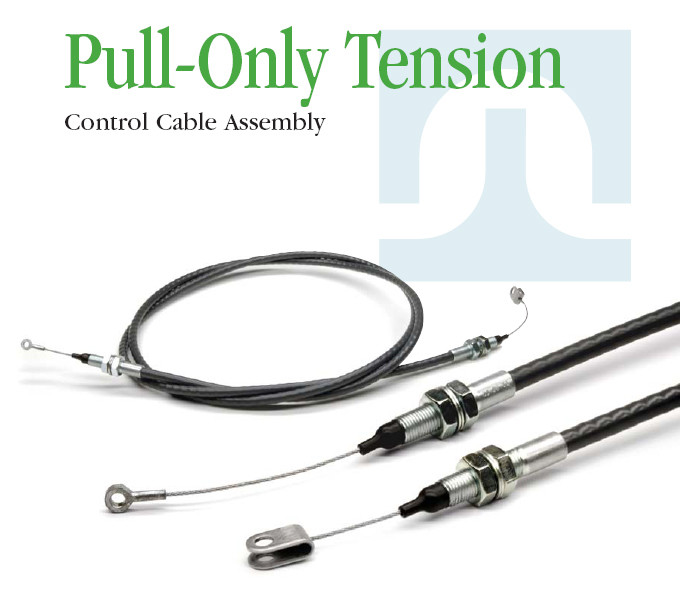

Engine Shutoff Made Simple: Phidix Pull-Only Tension Cable for Manual Stop Control


Where Manual Engine Stop Is Still Essential

While electronic shutdowns are common, many critical diesel and agricultural machines still rely on mechanical shutoff cables to:
•  Ensure control when electrical systems fail
•  Provide a simple, tactile emergency stop mechanism
•  Integrate with mechanical fuel pumps, governor levers, or cut-off valves
The Phidix Pull-Only Tension Cable enables direct mechanical disengagement—even in dusty, hot, or vibration-heavy environments.

Designed for Reliability in Harsh Conditions

•  Lubed-for-life core prevents seizure from dust or debris
•  Sealed conduit and caps protect internal elements from oil, heat, and washdown
•  Consistent pull resistance ensures reliable shutoff every time
•  Field-proven fittings for secure attachment to engine levers or control knobs

Typical Use Cases

Application Description
Diesel Engine Fuel Shutoff Cable pulls directly on injection pump lever
Agricultural Machinery Stop Panel-mounted emergency pull knob
Generator Kill Switch Mechanical override line routed to governor
Forklift or Skid Steer Manual cable disengages ignition or hydraulics
Marine Engine Kill Manual shutdown for inboard diesel

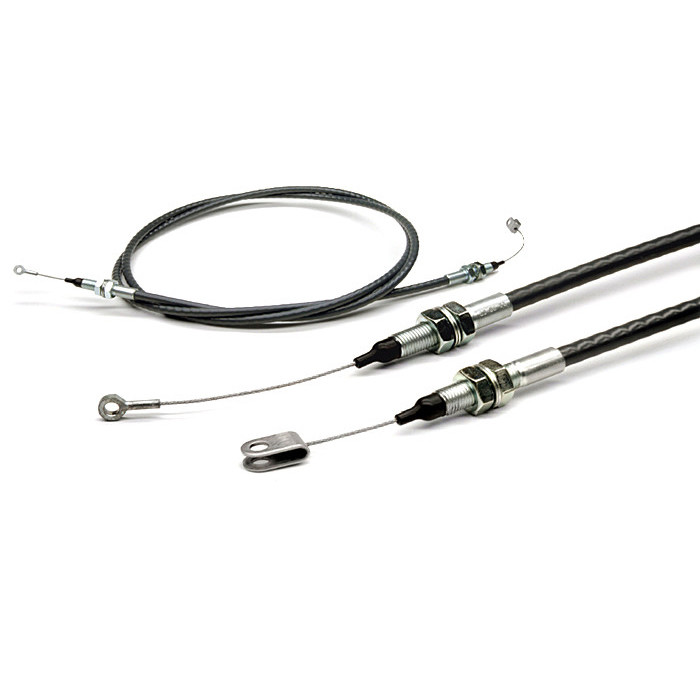

High Temperature Resistance Tractor Engine Stop Cable with IATF16949 Certification 0

Technical Compatibility

Feature Value
Pull Load Capacity Up to 2200 lb
Core Diameter 0.125" typical
Standard Fittings Clevis, threaded rod, ball end
Bend Radius 5" minimum
Jacket Options PVC or PP


Call to Action

Need a mechanical shutoff cable that works when everything else fails?
Choose Phidix Tension Series—field-tested, sealed, and ready.

Request Spec Sheet

Back to Tension Main Page
