Ball And Socket Joints Throttle Linkage
【 Product Description 】
These ball & socket joints feature induction hardened balls to resist wear. Security clips retain the threaded ball studs in their sockets and spanner flats are provided on the stud. Spanner flats can be provided on the sockets to order. Available in mild steel - zinc plated and clear passivated or in stainless steel, from stock. Maximum static push/pull values are valid for both radial and axial loads but do not apply to stainless steel versions. Supplied with appropriate lock nut.
【 Material 】
Body: Low carbon steel.
Ball stud: Carbon steel, Ball is induction hardened.
Inner retaining ring and safety clip: Hard drawn spring steel.
【 Protective Finish 】
Ball joint components zinc plated and clear passivated, Ball stud.
Inner retaining ring and safety clip are de-embrittled.
【 Features 】
Ball stud is retained by a captive internal wire ring.
Additional stud retention security is provided by the external wire safety clip.
For improved wear resistance, the ball is induction hardened.

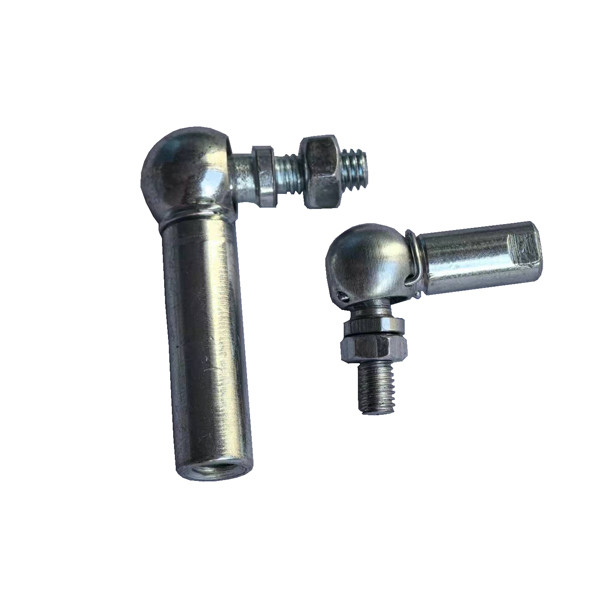

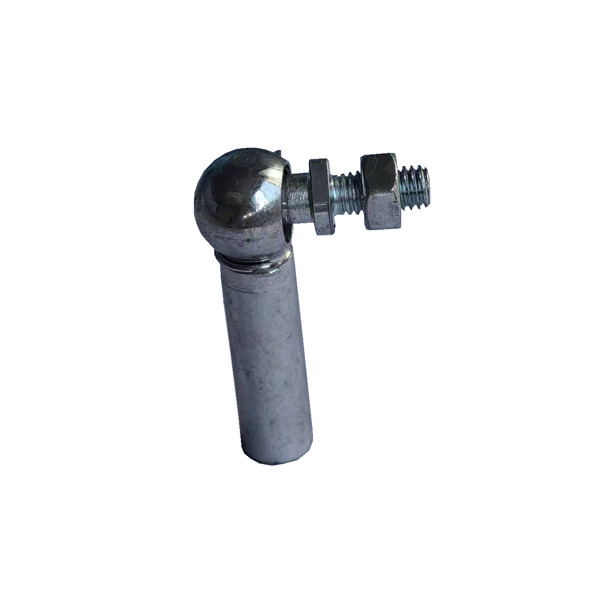

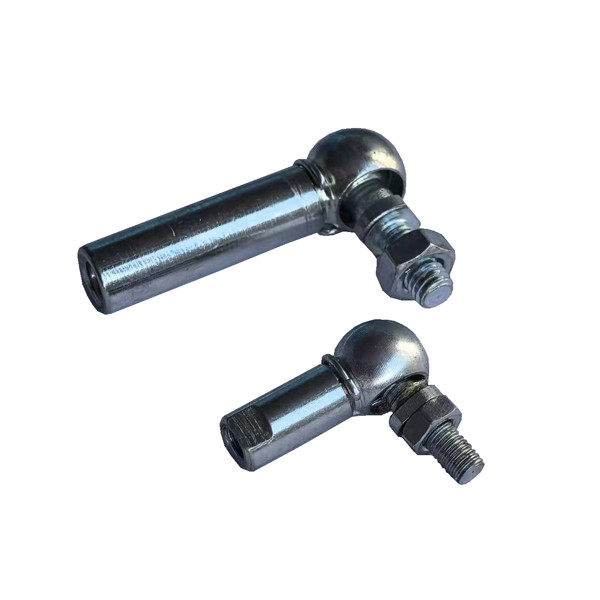

【 Real Picture 】
