Marine Push Pull Cable Marine Engine Throttle Control Cable
Place of Origin | Shanghai, China (Mainland) |
---|---|
Brand Name | PHIDIX |
Certification | IATF16949 |
Model Number | Customized |
Minimum Order Quantity | 100 piece |
Price | Negotiation |
Packaging Details | carton or wood case |
Delivery Time | 7-40 work days |
Payment Terms | L/C, D/A, D/P, T/T |
Supply Ability | 888 Piece/Pieces per Month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Marine Push Pull Cable Marine Engine Throttle Control Cable | Material | Stainless Steel, Rubber |
---|---|---|---|
Feature | High Temperature Resistance, Low Loss , Long Service Life | Length | Can Be Customized |
Certificate | IATF16949 | Application | For Yamaha Outboard Engine Boat Motor Steering System, Etc. |
Cable Colour | Blue | Thread Size | 10-32 UNF |
Travel | 3"minimum | Minimum Bend Radius | 4.00" |
Operating Temperature | From -65°F To +350°F | Outer Pipe | PVC/HDPE |
Inner Wire | High Quality Stainless Steel Wire |
Marine Push Pull Cable Marine Engine Throttle Control Cable
【 Product Description 】
High quality,long lasting flexible cables are suitable for outboard- inboard and stern drive engines.They are ideal for high perfomance application and long cable runs and complex routings.The innovative core design maximises the efficiency and minimises lost motion, while teh exclusive design of the conduit provides extremely high level of flexibility. High flexibilty for reduced bend radius High efficiency for smooth operation stranded core wires increase strength and resist kinking. Exposed metals are stainless steel to help protect against corrosion. High resistance blue outer jacket against abraision, UV & chemicals.
【 Applications 】
Marine Applications: |
Racing Applications: |
• Shift |
• Shift |
• Throttle |
• Fuel Shut Off |
• Trim |
• Chute Release |
Not Intended For Use as Steering Cabl |
Not Intended For Use as Steering Cable |
【 Features 】
• Travel: 3.00
• Bulkhead type (threaded)
conduit caps, stainless steel
• Clamp type (grooved)
conduit caps, stainless steel
• 10-32 end rod threads
【 Material 】
• Nylon Covered Innermember
• Stainless Steel
• LDPE Covered (Blue) Conduit
• Spring Wire Liner Core PTFE
Suggested End Fittings:
• Full Range
【 Note 】
Please measure and compare the original cable length and connector before ordering, especially the connector.Please allow 1-2cm error due to manual measurement..

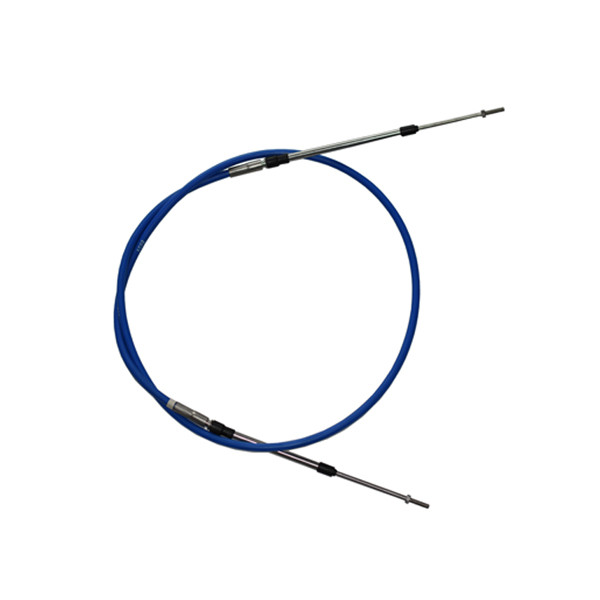

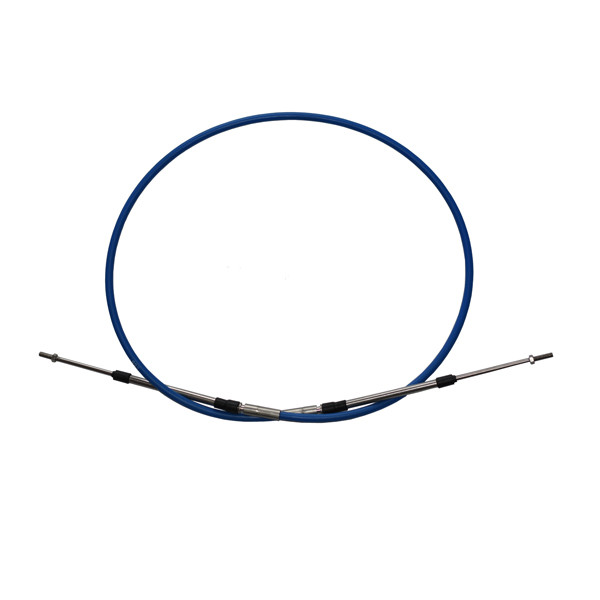

【 Real Pictures 】
