Name: Custom-made Mechanical Control Cable For Marine Applications
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: Customized
Price: 500.00 USD
Availability: InStock

Custom-made Mechanical Control Cable For Marine Applications

100 piece

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Custom-made Mechanical Control Cable For Marine Applications

Feature: High Temperature Resistance, Low Loss , Long Service Life

Length: Customized

Certificate: IATF16949

Application: Yamaha, Honda, Nissan, Suzuki, Tohatsu Etc

Color: Black, Red, Blue

Thread End: 10-32UNF Or M5

Stroke: 90mm

Conduit Diameter: 8.5mm

Wire Diameter: 3.1mm

Highlight:

Marine Applications Mechanical Control Cable

Marine Applications Control Cable

Basic Infomation

Place of Origin: Shanghai, China (Mainland)

Brand Name: PHIDIX

Certification: IATF16949

Model Number: Customized

Payment & Shipping Terms

Packaging Details: carton or wood case

Delivery Time: 7-40 work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 888 Piece/Pieces per Month

Gallery

Custom-made Mechanical Control Cable For Marine Applications

Product Description

Custom-made Mechanical Control Cable For Marine Applications

【 Product Description 】

Cable has a 10-32 threaded terminal and clamp type fitting at each end, 90mm nominal travel.

Under 12meters use normal cable series.

Above 12meters use Extreme cable series(Only black is available).

【 Key Features 】

• Unique splined core reduces friction for smooth shift and throttle control

• Designed for complex and/or long cable runs

• Ideal for foot throttle applications on performance boats/bass boats

• Long-wearing HDPE liner is ultra-smooth and lubed for life

• Durable HPDE jacket provides excellent protection against the elements

【 Specification 】

• Travel: 3"

• Connections: 10-32 threads at both ends

• Bend Radius: 4"

【 Applications 】

For Yamaha, Honda, Nissan, Suzuki, Tohatsu and other controls and engines with 10-32 threaded connection on both ends.

【 Real Pictures 】

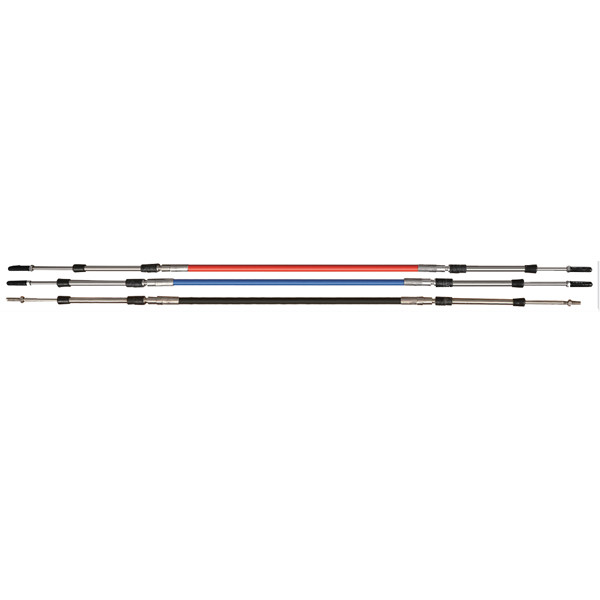

Custom-made Mechanical Control Cable For Marine Applications 0
