YK9S Mount Zinc Alloy Single Lever Engine Throttle Control

YK9S Mount Zinc Alloy Single Lever Engine Throttle Control

Brand Name: PHIDIX
Model Number: Control Lever
MOQ: 10 Piece/Pieces
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece/Pieces per Month
Detail Information
Place of Origin:
China
Certification:
IATF16949
Name:
YK9S Mount Zinc Alloy Single Lever Engine Throttle Control
Applications:
Boat, Transmixer, Pump And Throttle Control
Material:
Aluminum Alloy
Function:
Control 2 Pcs Cable
Cable Length:
Customer Tailor
Certificate:
IATF16949
Cable Stroke:
90mm
Pull Force:
1400N Max
Push Force:
190N Max
Packaging Details:
carton or wood case
Supply Ability:
888 Piece/Pieces per Month
Product Description



YK9S Mount Zinc Alloy Single Lever Engine Throttle Control



【 Product Description 】

This boat throttle control lever has only one single lever. You can operate both throttles and shift for one engine in one lever to achieve dual-action. Pull-out handle disengages shift for throttle only warm-up.The boat throttle has smooth shifting and throttling to be labor-saving and to lower the difficulties to operate. It uses built-in friction to avoid throttle creep.All the parts of the top mount boat throttle is well packed in the package, you can put them together with ease. The introduction of the product is written in detail so that you can fully understand it.This boat throttle lever works on all types of boats with outboard, inboard or I/O power, gas, or diesel. Moreover, all 33C style and other engine control cables suit for it.



【 Features 】

• Usually work for inborad engine

• Throttle and shift on one handle.YK9S for 1 engine and Yk9D for 2 engines

• Single lever connect with 2 pieces cable,dual lever connect with 4 pieces cable

• Neutral warm-up is done by pulling out the hand levers in the neutral position

• Built-in friction drag helps reduce slippage and throttle creep while underway



【 Material 】

• Housing part:chrome plated zinc alloy construction

• Interior part:304 stainless steel

• Waterproofing and antirust



【 Suggested Connection cable systems 】

• YK9S connect with 2 pieces 3300/33C type control cables



【 YK9S Dual Station Exchanger 】

This solution needs 2 sets YK9S marine control and 7pcs control cables to control one outboard or engine.

YK9S Mount Zinc Alloy Single Lever Engine Throttle Control 0



【 Drawing 】

YK9S Mount Zinc Alloy Single Lever Engine Throttle Control 1

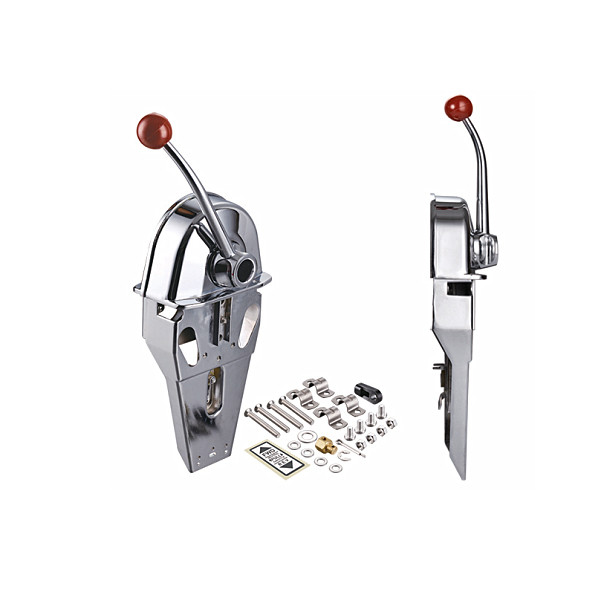

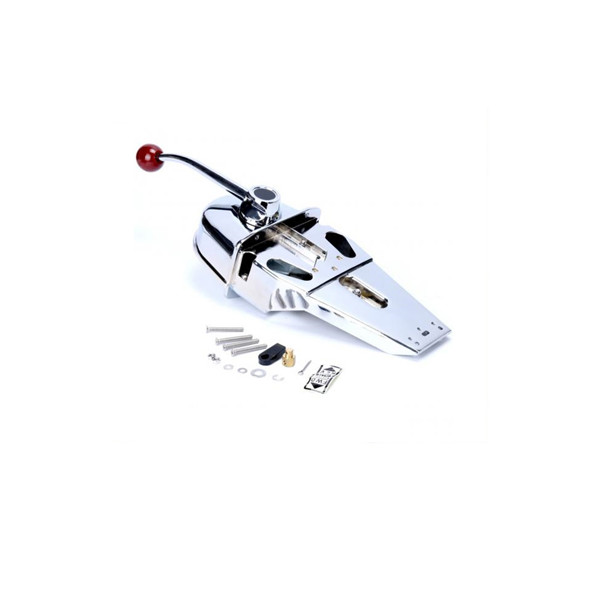

【 Real Picture 】

YK9S Mount Zinc Alloy Single Lever Engine Throttle Control 2
