YK6 Top Mount Marine Boat Engine Throttle Control Dual Lever

YK6 Top Mount Marine Boat Engine Throttle Control Dual Lever

【 Product Description 】

• Mainly applied for motorboats, fishing boats and other waterborne vehicles, to control accelerator and gearshifting of diesel or gasolene engines.

• Accelerator control is with locking device, you can screw locking handle when moving at a constant speed, when accelerating or decelerating, unscrew the handle to enable it shake back and forth which allows microadjust accelerator or decelerator then control speed. Shift control is divided as front, middle and back shifts, can shift easily .

• Zinc alloy, chrome plated, stainless steel as part material. The whole body is waterproofing and antirust with advanced structure.

• Controls one engine so connects with 2 cables.

【 Features 】

• Suitable for most boat/engine combinations, control throttle and shift of diesel or gasoline engines.

• Throttle control is with locking device, can screw locking handle when moving at a constant speed, when accelerating or deceler ating, unscrew the handle to enable it shake back and forth which allows micro adjust accelerator or decelerator then control speed. Shift control is divided as front, middle and back shifts, can

shift easily.

• Zinc alloy housing, chrome plated, stainless steel as interior part material, waterproofing and on trust with advanced structure.

• Ergonomically designed, easy installation.

【 Suggested Connection Cable Systems 】

• Connect with 2 pieces 3300/33C type control cables

• Cable length:within 23 meters

• Cable stroke:96mm

• Pull force:1400N max

• Push force:190N max

【 Drawing 】

【 Accessories 】

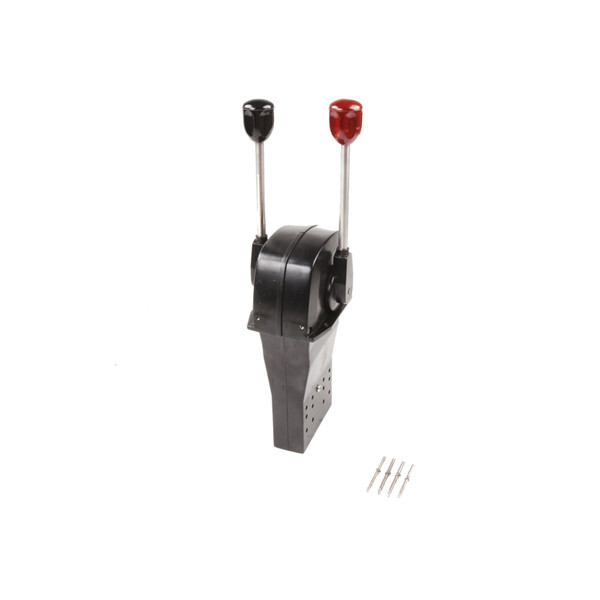

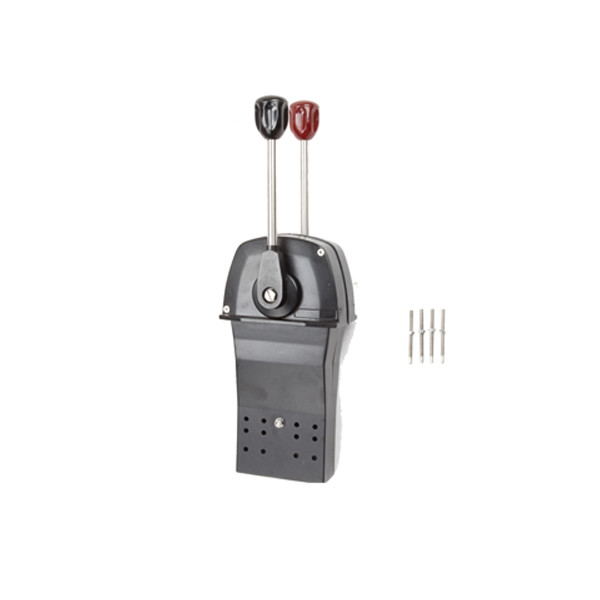

【 Real Picture 】
