2.8m Control Cable Assembly Aerospace IATF16949 Push Pull Control Cables

High Efficiency Push Pull Control Cables Push-Pull Cable Control Systems

【 Product Description 】

Full range of push-pull controls that provide a means of transmitting linear motion from one location to another. They offer ease of installation as well as superior performance.Push-Pull Cables are made with tough/durable materials with long lasting seals that keeps them environmentally protected withstanding temperatures between -65°F — 230°F.These cables are suited for implement and throttle control, PTO/4WD and valve activation, remote battery and electrical disconnect, transmission shift, hydrostatic drives and latches.

【 Custom Length Cables 】

A - Duty (Load capacities & length of travel)

B - Conduit End Fittings

• Type T

Threaded Conduit End Fitting for bulkhead mounting.

• Type G

Grooved Conduit End Fitting for mounting with U-bolts or clamps.

For Replacement Cables

• 1 Remove old cable

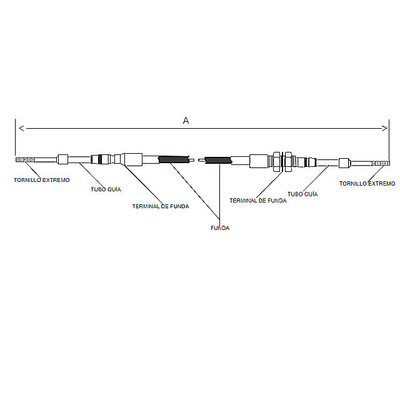

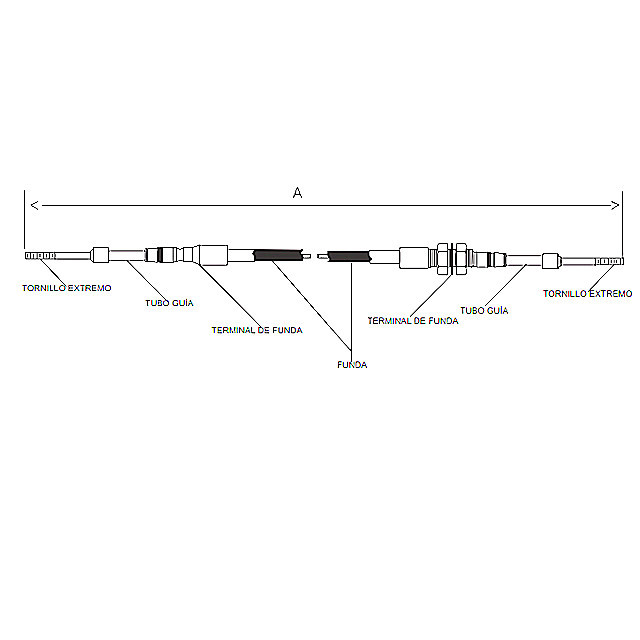

• 2 Measure length as shown below

• 3 Measure length of travel. 1" through 6"

• 4 Determine size of thread "F." Select basic part number from the table above

For New Cables

• 1 Determine overall length.

• 2 Measure travel required. Add 1/4" and then round upward to nearest whole inch.

• 3 Determine loads and select basic part number from the table above

C - Overall Length & Travel in Inches

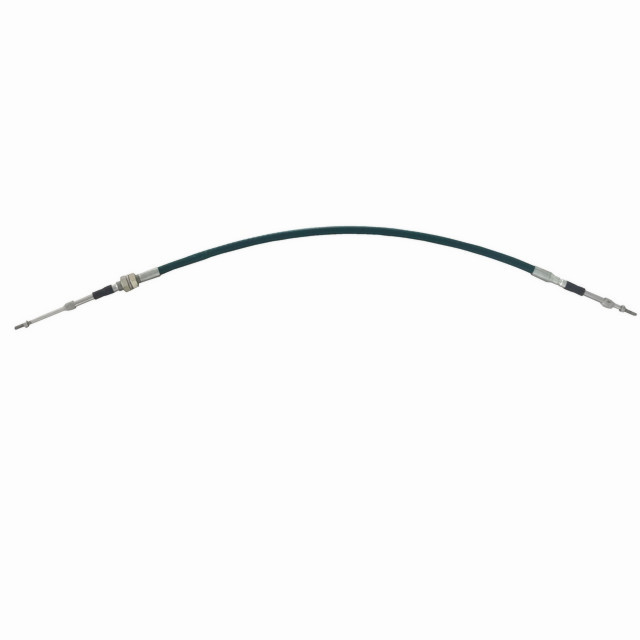

【 Real Picture 】
