Name: Universal Push Pull Control Cable Assembly With Turn Lock T Handle
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: Customized
Price: 500.00 USD
Availability: InStock

Universal Push Pull Control Cable Assembly With Turn Lock T Handle

10 piece

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: New Universal Push Pull Control Cable With Turn To Lock T-Handle

Material: As Per Requirements

Length: Customized

Certificate: IATF16949

Applications: Engine Shut Down, Engine Choke, Latch Operation, Valve Operation

Specification: Rotatable Handle, Connected With A Piece Of Cable

Color: Black ,Green, Gray

Feature: High Temperature Resistance, Low Loss, Long Service Life

Function: Self-Locking, Micro Adjustment By Rotating Handle, Control A Push Pull Cable Or A Pull Cable

Minimum Bend Radius: 6”

Operating Ranges: -65° F To 225° F

Highlight:

Rotatable Handle Pull Control Cable Assembly

Universal Push Pull Control Cable IATF16949

T Handle Universal Push Pull Cables

Basic Infomation

Place of Origin: China

Brand Name: PHIDIX

Certification: IATF16949

Model Number: Customized

Payment & Shipping Terms

Packaging Details: carton or wood case

Delivery Time: 7 - 40 work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 888 Piece / Pieces per Month

Gallery

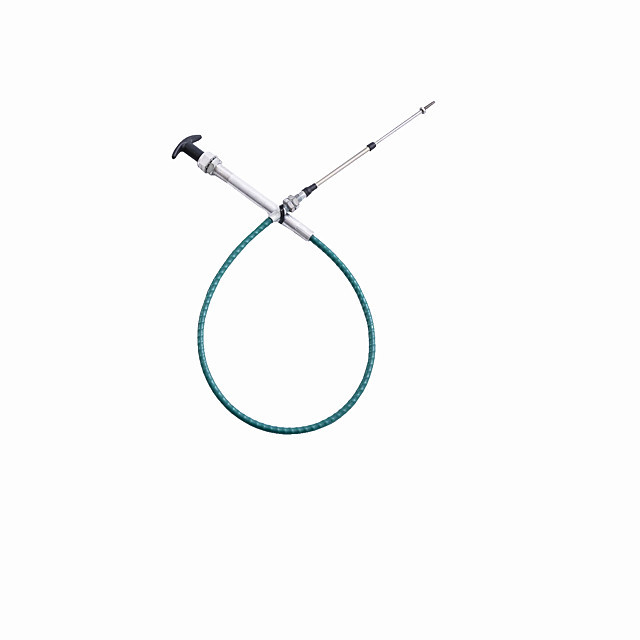

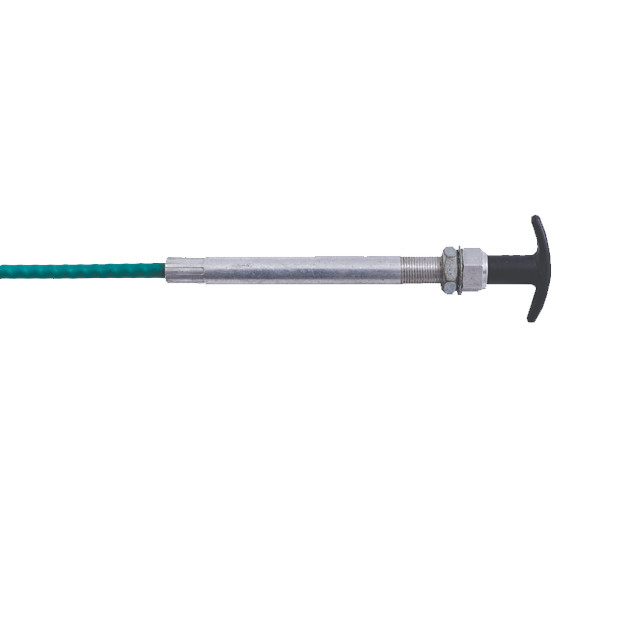

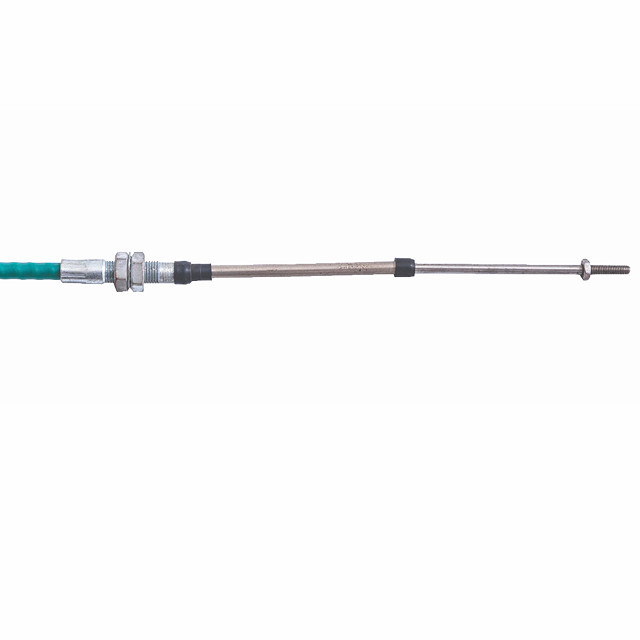

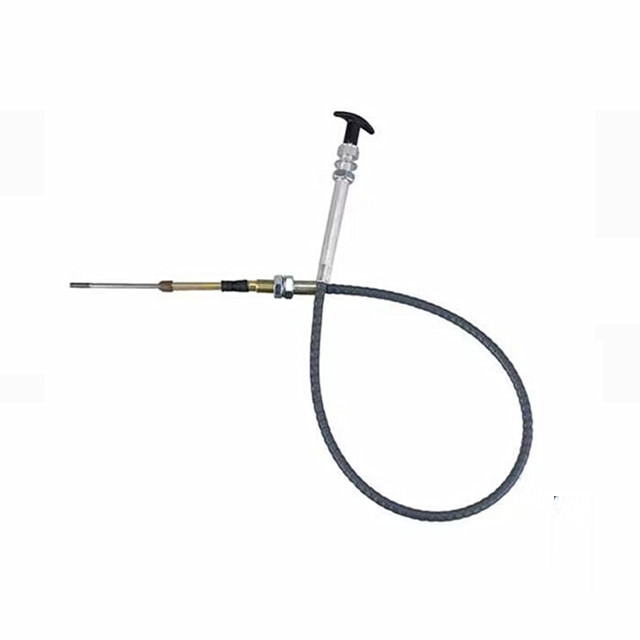

Universal Push Pull Control Cable Assembly With Turn Lock T Handle

Product Description

New Universal Push Pull Control Cable With Turn To Lock T-Handle

【 Product Description 】

Turn-to-lock panel control systems, used in operating chokes, throttles, engine shut-offs and valves where a positive lock is needed. These controls provide smooth and easy operation and are designed to be long lasting.These Twist to lock cables can be pushed or pulled in or out to control throttle adjustment, then twisted either way to lock the cable in place.

【 Features 】

• T-handle is free to travel the full length of the control until locked

• Rotating the T-handle 1/8 turn in either direction along the travel will secure loads up to 100 lb., yet unlocks with ease

• Especially effective when space is limited or rod linkage and bell cranks are not suitable choices

【 Real Picture 】

Universal Push Pull Control Cable Assembly With Turn Lock T Handle 0
