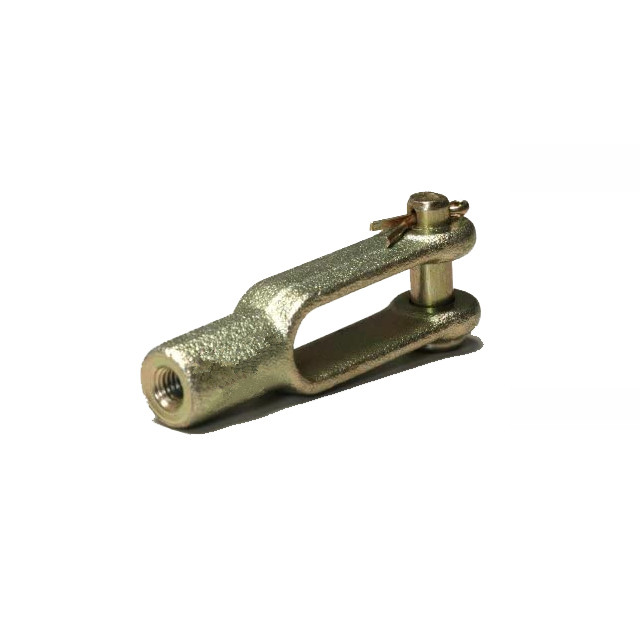

Clevis Assembly Includes Clevis Pin And Split Pin
【 Product Description 】
Clevises can be used in a wide range of applications from lawn and garden to heavy construction. They are made from low carbon steel and zinc plated for corrosion resistance. A clevis can be used in situations where a link needs to be easily disconnected. In those cases, many of our easy to install and remove retaining clips may be used along without pins to lock the clevis in place through the eye of the linkage. Spring pins are made using low carbon steel pins and a heat treated spring steel bodies. Retaining clips are made using heat treated spring steel.
【 Features 】
• Low carbon steel for economical design
• Machined clevis style for higher precision fit and appearance
• Offered in both metric and inch
• Both metric and inch are available in RH & LH versions
• Multiple style retaining clips available
• Similar to DIN 71 752 (metric)
【 Clevis Pin Retaining Clip Chart 】
| CLEVIS ASSEMBLIES |
Part No. | Thread | Pin Diameter | Length | Inside Opening | Inside Depth |
|
Clevis Assembly Includes Clevis Pin and Split Pin |
175-601-202 | 10-32 UNF | 3/16" | 1.56" | .19" | 1.00" |
| 175-601-204 | 10-32 UNF | 1/4" | 2.00" | .29" | 1.30" | |
| 175-601-206 | 1/4-28 UNF | 1/4" | 2.00" | .29" | 1.30" | |
| 175-601-210 | 1/4-28 UNF | 5/16" | 2.25" | .34" | 1.44" | |
| 175-601-208 | 5/16-24 UNF | 1/4" | 2.00" | .29" | 1.30" | |
| 175-601-212 | 5/16-24 UNF | 5/16" | 2.25" | .34" | 1.44" | |
| 175-601-216 | 5/16-24 UNF | 3/8" | 2.50" | .44" | 1.63" | |
| 175-601-214 | 3/8-24 UNF | 5/16" | 2.25" | .34" | 1.44" | |
| 175-601-218 | 3/8-24 UNF | 3/8" | 2.50" | .44" | 1.63" | |
| 175-601-222 | 3/8-24 UNF | 7/16" | 2.88" | .50" | 1.88" | |
| 175-601-487 | 3/8-24 UNF | 1/2" | 3.00" | .57" | 1.88" | |
| 175-601-220 | 7/16-20 UNF | 3/8" | 2.50" | .44" | 1.63" | |
| 175-601-226 | 1/2-20 UNF | 7/16" | 2.88" | .50" | 1.88" | |
| 175-601-230 | 1/2-20 UNF | 1/2" | 3.00" | .57" | 1.88" | |

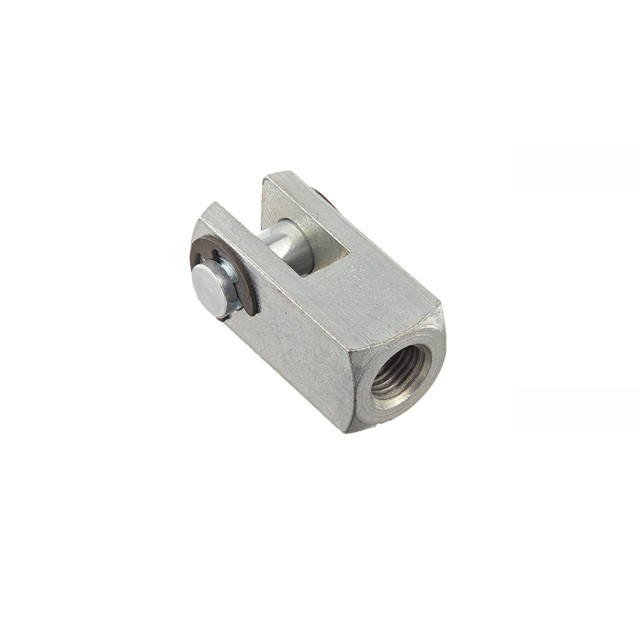

| Machined Clevis | 175-435-088 | 1/2-20 UNF | 1/2" | 1.68” | .53” | 1.18” |
| Slip Clevis | AC310 | 1/4-28 UNF | 2.5" | 1/4" | 3.25" | .28" |
