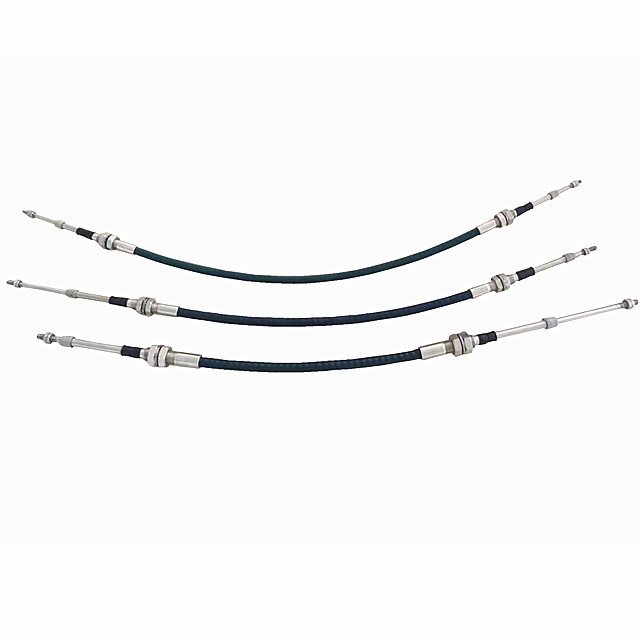

Mechanical Control Cable PVC PE Push Pull Cable Customized

Factory Customized Mechanical Push Pull Cable Mechanical Control Cable

Product Description

Cables designed with sold wire cores are used in applications that require the transmission of forces in both the push and pull mode of operation. The vast majority of these products use various combinations of conduit styles and solid wire cores in their construction. Solid wire cores can be formed on the ends to eliminate the need to apply separate fittings or terminations. Bend radii should be large and routing must be simple in order to avoid a permanent set in the core wire.

In other cases, stiffer, small diameter stranded cables can be used for push-pull cables, providing the push load is very light and the combination of cable and conduit is carefully considered. In some applications, a reinforced stranded cable (Armored Core) can be used which offers higher load capacities but with increased flexibility.

All stranded core push-pull cables typically require cable end-fittings but the routing allows for more bends between connection points.

Features

• Typical temperature range

-65°F — 230°F (Bristow)

-65°F — 230°F (Utility)

-65°F — 230°F (Low Friction EXT)

-65°F — 230°F (Low Friction)

• Tough/durable materials

• Long lasting seals

• Environmentally protected

Applications

• Instrument control

• Throttle control

• Power drive

• Valve drive

• Remote power control

• Variable speed control

• Hydraulic switch driver

• Gating

Fittings

We offer a wide variety of standard cable end-fittings which simplify the design process saving you time to market and minimizing development costs; both zinc die-cast fittings as well as steel fittings.

Our Engineering team will also design the correct custom cable fittings to meet any unique or proprietary design requirements.

Target Industries

• Bus factory

• Truck factory

• Airlines

• Special vehicle factory

• Engineering machinery

• Mining machinery

Real Picture

Packing and Shipping

Ordering Codes — UNF Threads
Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX
Ordering Codes — Metric Threads
Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX

FAQ

Q: What is the brand of the Control Cables?

A: The brand of the Control Cables is PHIDIX.

Q: What is the model number of the Control Cables?

A: The model number of the Control Cables is PHIDIX.

Q: Where is the Control Cables manufactured?

A: The Control Cables is manufactured in Shanghai.

Q: What are the specifications of the Control Cables?

A: Please contact us for the specifications of the Control Cables.
