Micro Mechanical Push Pull Control Cable Assemblies Throttle Regulating Valve

Micro Adjust Control Heads Push Pull Control Head

【 Product Description 】

Micro Adjust control heads are ideal for remote operation of a throttle, regulating valve, or other applications needing precise adjustment capabilities.

By pressing the center button it allows pushing or pulling the knob to make course travel adjustments. Rotating the knob clockwise extends the output in the finite mode, and counter-clockwise retracts. (Four and one-half turns results in 1" of linear travel) Normal vibration does not affect the micro adjust setting, however these also have a Friction-Lock collar which can be tightened to lock the control in place.

【 Common Applications 】

Throttle control, regulating valve

• Depressing the center button allows pushing or pulling the knob to make course travel adjustments

• Flexible dust seal protects internal release mechanism

• Rotating the knob clockwise extends the output in the finite mode, and counter-clockwise retracts

• Four and one-half turns results in 1” of linear travel

• Normal vibration does not affect the micro adjust setting

【 Optional 】

• Friction lock accessory for applications where vibration is excessive

• Disconnect feature and various output end configurations to suit a particular application

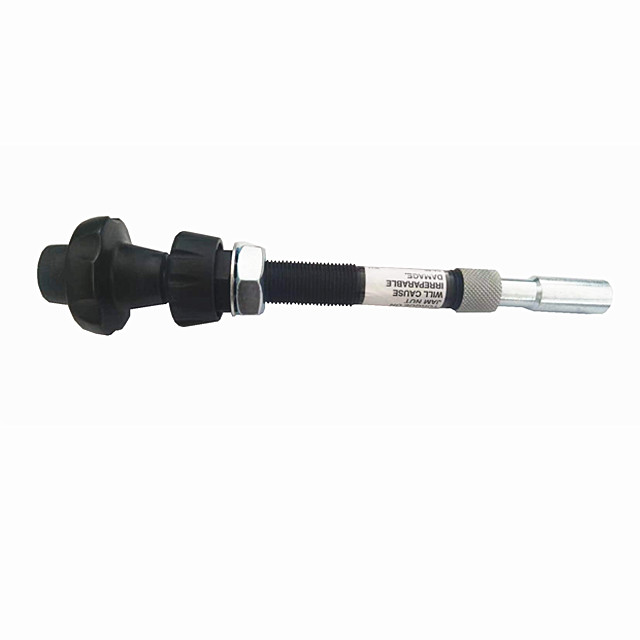

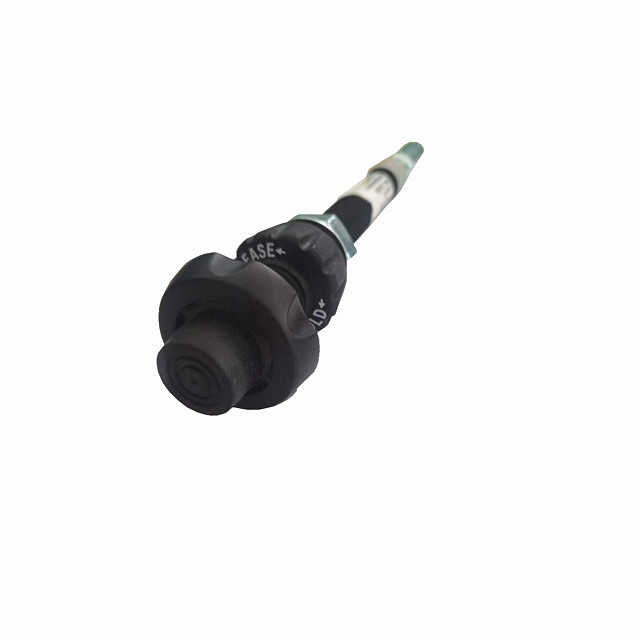

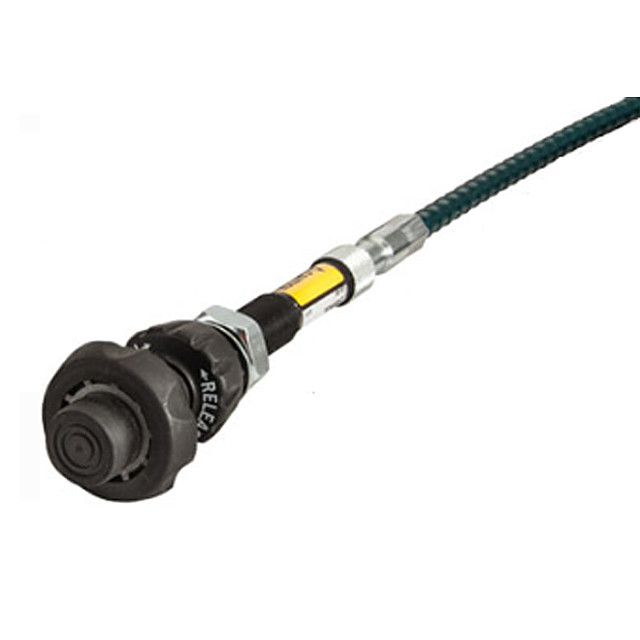

【 Real Picture 】
