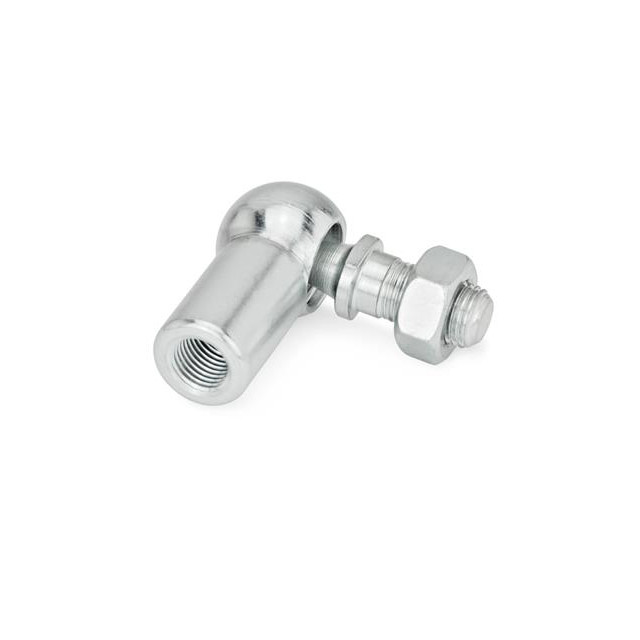

M6 M10 Stainless Steel Ball Joint Threaded Linkages Consist A Ball Stud

10 Piece/Pieces
MOQ
Negotiation
Price
M6 M10 Stainless Steel Ball Joint Threaded Linkages Consist A Ball Stud
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Threaded Ball Joint Linkages Consist Of A Ball Socket And A Ball Stud
Applications: Engineering
Material: Carbon Steel Galvanized
Free Sample: Available
Service: Customized Services
Certificate: IATF16949
Highlight:

M6 Stainless Steel Ball Joint

,

IATF16949 Stainless Steel Ball Joint

,

M10 threaded ball joint
Basic Infomation
Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized
Payment & Shipping Terms
Packaging Details: carton or wood case
Delivery Time: 7-40 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece/Pieces per Month
Product Description



Threaded Ball Joint Linkages Consist Of A Ball Socket And A Ball Stud



【 Product Description 】

Threaded ball joint linkages consist of a ball socket and a ball stud.

The swivel angle for the type with safety catch (types CS) is 15°, without safety catch (types C) it is 18°.

During assembly, the ball socket is pushed over the snap ring, which acts as a retainer. If the retaining forceis not sufficient, the connection of ball socket / ball stud can be secured by the safety catch, which can easily be fitted.

To protect the threaded ball joint linkages against contamination, dust caps can be used.

The hexagon nut is part of the threaded ball joint linkages with threaded stud.



【 Protective Finish 】

Body and ball stud Zinc plated and passivated; ball stud is de-embrittled. The assembly is lubricated.



【 Type 】

 C  With threaded stud, without safety catch
 CS  With threaded stud, with safety catch



【 Specification 】

 Housing and threaded stud   Ball
 Steel   Steel
• Property class 5 • Hardened
• Zinc plated, colorless passivated finish • Ball socket lubricated



【 Dimensions in: Metric 】

 d1  d2 d3 d5 d6 l1 l3 l4 t A/F Min.
H9/h9 Right hand thread Left hand thread Thread           min.   pull-off force
8 M 5 M 5L M 5 8 12.8 10 8.5 22 10.5 7 6.74 lbf (30 N)
10 M 6 M 6L M 6 10 14.8 12.5 10.5 25 11.5 8 8.99 lbf (40 N)
13 M 8 M 8L M 8 13 19.3 16.5 12 30 14 11 13.49 lbf (60 N)
16 M 10 M 10L M 10 16 24 20 15 35 15.5 13 17.98 lbf (80 N)
16 M 12 M 12L M 12 16 24 20 15 35 15.5 13 17.98 lbf (80 N)
19 M 14F M 14FL M 14 x 1.5 22 30 28 19.5 45 21.5 16 22.48 lbf (100 N)

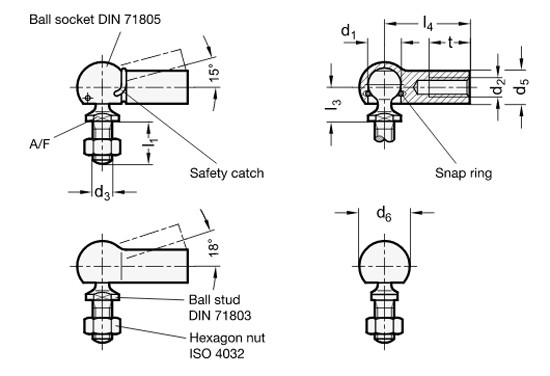

【 Drawing 】

M6 M10 Stainless Steel Ball Joint Threaded Linkages Consist A Ball Stud 0
