VLD Cable Assembly, Remote Pull Cable Kit With Twist Lock Handle

VLD Cable Assembly, Remote Pull Cable Kit With Twist Lock Handle

Brand Name: PHIDIX
Model Number: Customized
MOQ: 1 piece
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece / Pieces per Month
Detail Information
Place of Origin:
China
Certification:
IATF16949
Name:
VLD Cable Assembly, Remote Pull Cable Kit With Twist Lock Handle
Feature:
High Temperature Resistance, Low Loss ,Long Service Life
Material:
Stainless Steel Or Plated Carbon Steel / Plastic Coated Carbon Steel Conduit And Innermember / Plastic Seal / Plastic Knob
Process:
Cutting, Welding, Punching
Length:
Customized
Main Purpose:
Choke Cable, Used For Operation Of Battery Master Switch Or Mechanical Fire Extinguisher.
Function:
Stepless Self-locking, Rotatable Handle
Package:
Wooden Case, Carton Box, Customer Require
Packaging Details:
carton or wood case
Supply Ability:
888 Piece / Pieces per Month
Highlight:

990MM Mechanical Control Cable

,

Stepless Mechanical Control Cable

,

Self Locking VLD Cable Assembly

Product Description



VLD Cable Assembly, Remote Pull Cable Kit With Twist Lock Handle



【 Product Description 】

Twist lock control cables are used where an application calls for the ability to “lock in” a specific position. A “T” handle allows movement of the cable the entire length of the stroke. When the desired position is achieved, simply twist the handle a 1/4 turn to lock the position in place. Used widely in engine stop, engine choke, latch, and valve operations. These cables feature a combination plastic and plated metal body. Permits high torque installations and have a rugged locking collet to provide smooth, positive action. Assorted standard knob options available.



【 Function 】

Locking at any position, trimming by rotating handle, control one push-pull cable or pull cable.



【 End Parts Of Fittings 】

A large selection of end fittings, including U shape terminals, eyelet terminals, zinc nipples ,compressed spring ,screws, handlebar, rigging hardware or etc.


【 Drawing 】

VLD Cable Assembly, Remote Pull Cable Kit With Twist Lock Handle 0

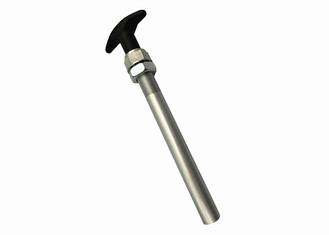

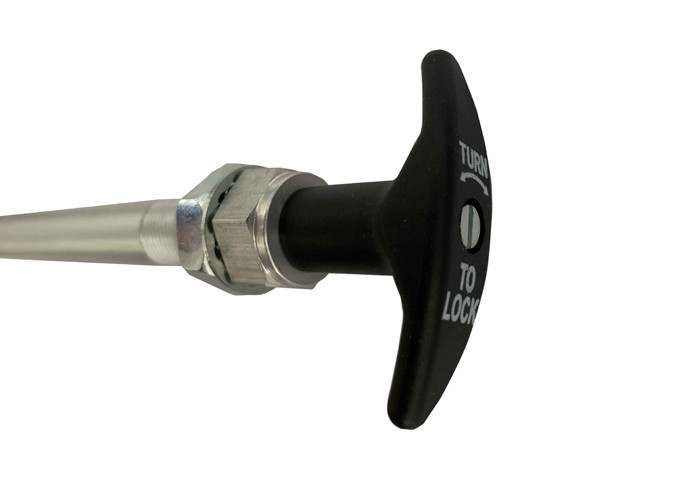

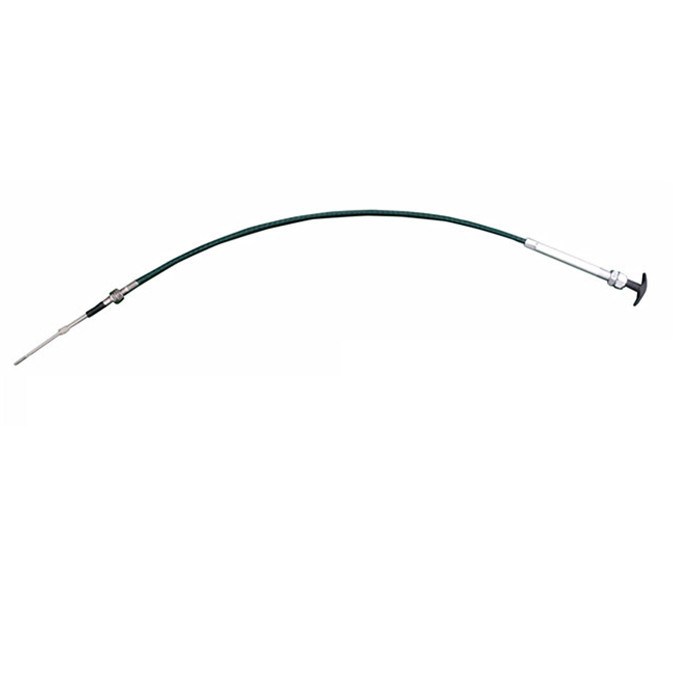

【 Real Picture 】

VLD Cable Assembly, Remote Pull Cable Kit With Twist Lock Handle 1



VLD Cable Assembly, Remote Pull Cable Kit With Twist Lock Handle 2    VLD Cable Assembly, Remote Pull Cable Kit With Twist Lock Handle 3
