Phidix Motion Controls (Shanghai) Co., Ltd. 86-021-37214606 lisa.tu@phidixglobal.com
Customize Different Control Cables Mechanical Control Cable Push Pull Control Cable Various Material Simple Install Easy

Customize Different Control Cables Mechanical Control Cable Push Pull Control Cable Various Material Simple Install Easy

  • High Light

    4WD Activation Mechanical Control Cable

    ,

    Latches Activation Mechanical Control Cable

    ,

    PTO Activation Mechanical Control Cable

  • Name
    Custom Push Pull Control Cable Various Material Simple Install Easy Maintain
  • Material
    As Per Requirements
  • Feature
    High Temperature Resistance, Low Loss, Long Service Life
  • Cover Color Options
    Black, Gray, Green Or As Per Requirements
  • Application
    Automotive, Truck, Industrial, Motorcycle, ATV & Marine, Trains
  • Length
    Customized
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7-40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece/Pieces per Month

Customize Different Control Cables Mechanical Control Cable Push Pull Control Cable Various Material Simple Install Easy



Custom Push Pull Control Cable Various Material Simple Install Easy Maintain



【Product Description】

We offer a full range of push-pull controls that provide a means of transmitting linear motion from one location to another. They offer ease of installation as well as superior performance.


【 Cable Types 】

V = 10-32, L = 1/4-28, M = 5/16-24, H = 3/8-24.

(Very light duty; Light duty; Medium duty; Heavy duty)



【 Applicationss 】

• Implement control

• Throttle control

• PTO/4WD activation

• Valve actuation

• Remote battery disconnect

• Remote electrical disconnect

• Transmission shift

• Hydrostatic drives

• Latches



【 Standard Push-Pull Cable Terminology 】

Customize Different Control Cables Mechanical Control Cable Push Pull Control Cable Various Material Simple Install Easy 0



【 How To Ldentify Push-Pull Cables 】

Your goal is to determine the information required to make up the “ordering code” or part number. An example of a typical ordering code is 173-VTG-3-144.

Step 1: Determine the “duty” (size) of the cable by the diameter and threads of the end rods. V = 10-32, L = 1/4-28, M = 5/16-24, H = 3/8-24.

(Very light duty; Light duty; Medium duty; Heavy duty)

Step 2: Determine the type of conduit end fittings (conduit caps) for left end and right end. T = Threaded, G = Grooved. TT, GG or TG combinations.

Step 3: Determine the travel of the end rod. 1 through 6 in one inch increments.

Customize Different Control Cables Mechanical Control Cable Push Pull Control Cable Various Material Simple Install Easy 1

Step 4: Determine the overall length of the cable.

Step 5: Determine cable materials depending on usage and conditions.

See details of 173, 174, 175 Utility, 313, 314, 315 Low Friction EXT and 183,184 and 185 Low Friction.

Utility: “The Rugged Gray Cable” is the industry-standard and is designed for a long life under rugged conditions (173, 174, 175).

Low Friction EXT: “The Green Cable” is the proper cable to use when superior efficiency is required. The extruded nylon cover over the innermember works very smoothly with the polyliner (313, 314, 315).

Low Friction: The proper cable to use when superior efficiency is required. The bonded PTFE cover over the inner operating member works very smoothly with the plastic liner (183, 184, 185).

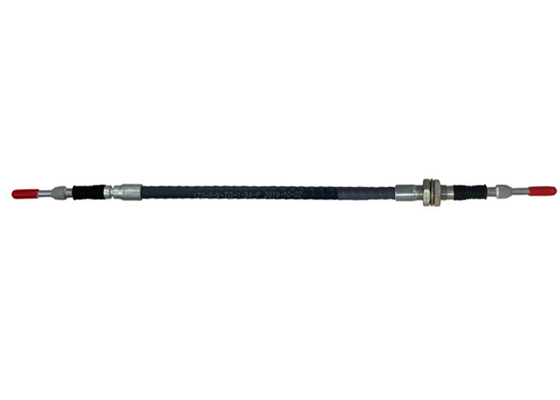

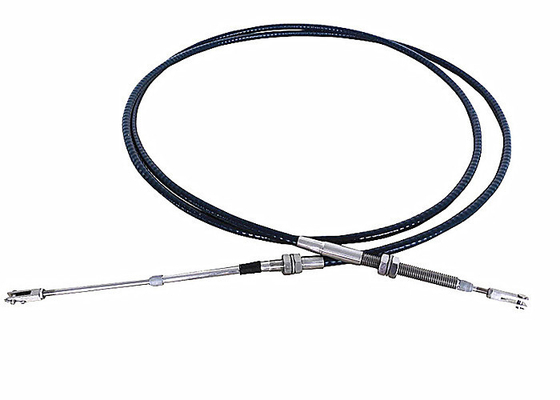

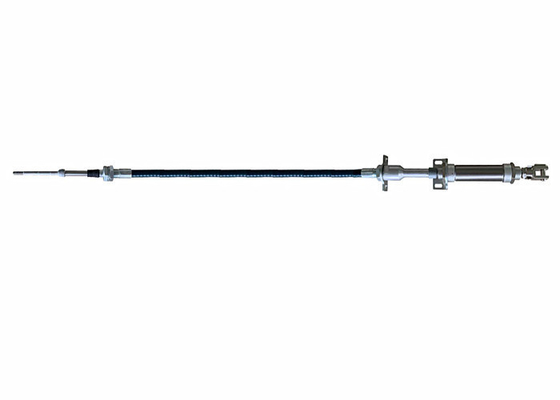

【 Real Picture 】

Customize Different Control Cables Mechanical Control Cable Push Pull Control Cable Various Material Simple Install Easy 2

Customize Different Control Cables Mechanical Control Cable Push Pull Control Cable Various Material Simple Install Easy 3
