Stamdard Product HD Series Control Cable Assembly Mechanical Control Cables
【 Product Description 】
Phidix is a manufacturing company specialising in mechanical control cables,We are located in Shanghai,China.
We supply cables for the Automotive,Truck,Industrial,Motorcycle, ATV & Marine,for excellent quality,to exacting standards of quality,The extensive product range includes Accelerator Cable, Handbrake Cable, Speedometer Cable, Choke Cable, Gearshift Push pull cable, Clutch Cable, PTO Cable, Heater Cable & Components..
【 Technical Requirement 】
(1)Travel not less than 50MM;
(2)Maximum thrust not greater than 4400N;
(3)Maximum pulling force is not greater than 6600N;
(4)Use ambient temperature -40-+120;
(5)Red threaded shield at both ends;
【 Custom Length Cables 】
Load Capacities and length of travel
【 Conduit End Fittings 】
Type T Threaded Conduit End Fitting for bulkhead mounting.
Type G Grooved Conduit End Fitting for mounting with U-bolts or clamps.
【 Overall Length and Travel in Inches 】
FOR REPLACEMENT CABLES
A Remove old cable.
B Measure length as shown below.
C Measure length of travel. 1" through 6".
D Determine size of thread "F." Select basic
part number from the table above. |
FOR NEW CABLES
A Determine overall length.
B Measure travel required. Add 1/4" and then
round upward to nearest whole inch.
C Determine loads and select basic part
number from the table above |
【 Standard Length Industrial / Performance Cables & Accessories 】
• Utility Style adds a binder wire for structural integrity and a tighter minimum bend radius
than other controls.
• Low Friction controls have the same advantages as Utility with an added plastic covered
innermember which provides improved efficiency.
• Blue Max™ is the high performance control cable with extreme low friction and minimal loss
of motion. True 4" minimum bend radius, lubed for life and outer jacket is resistant to
abrasions, gasoline, diesel and chemicals. Designed for long runs with complicated cable
routing while being extremely efficient on shorter runs. All exposed fittings/parts are
stainless steel.
These 3" travel cables have #10-32 (3/16") end rod threads and are ideal for use as fuel
shut-off, parachute release, throttle and shift cables.
Grooved End Fittings
Threaded End Fittings
Threaded On One Side, Grooved On The Other

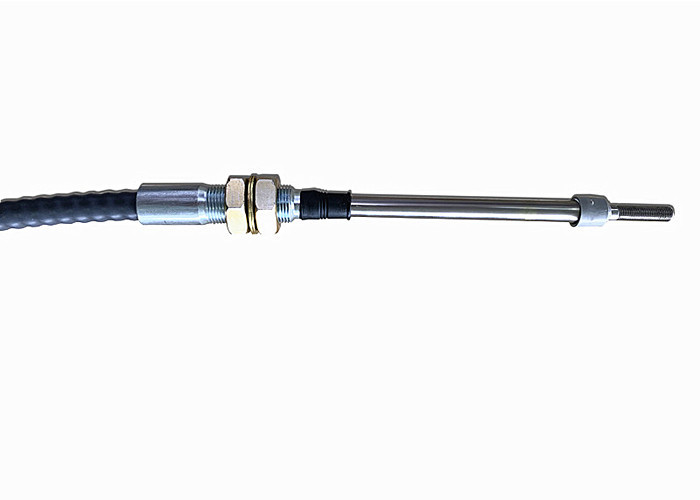

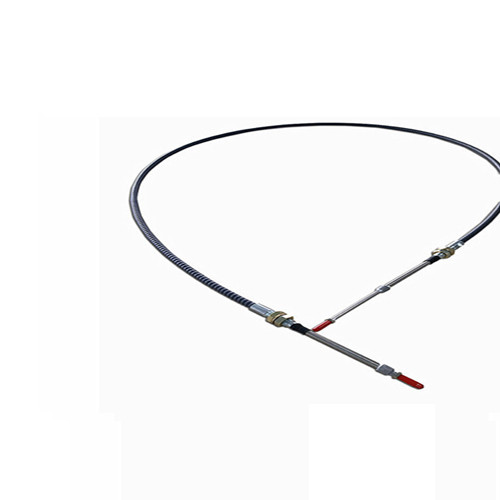

【 Real Picture 】
【 Package 】
