Stainless Steel Rod Ends
Created with Pixso.

HOT Race High Temperature Stainless Steel Rod Ends And Linkages

HOT Race High Temperature Stainless Steel Rod Ends And Linkages

Brand Name: PHIDIX
Model Number: Customized
MOQ: 10 Piece/Pieces
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece/Pieces per Month
Detail Information
Place of Origin:
China
Certification:
IATF16949
Features:
High Temperature Resistance Race Material, Self Lubricating, Wear Resistant
Name:
HOT-Race High-Temperature Rod Ends & Linkages
Material:
Stainless Steel
Certificate:
IATF16949
Applications:
Engine Controls, Heating Controls And Switches, Precision Positioning And Linkages
Operating Temperature:
450°F To 650°F
Packaging Details:
carton or wood case
Supply Ability:
888 Piece/Pieces per Month
Highlight:

metric spherical rod ends

,

spherical bearing rod ends

Product Description



HOT-Race High-Temperature Rod Ends & Linkages



【 Product Description 】

HP Series rod-ends are designed to operate in high cycle, low to moderate load applications, demanding superior thermal stability, at high operating temperatures, and resistance to harsh environments.

Capable of withstanding temperatures from 450° F to 650° F, potentially reducing or eliminating the need for heat shielding. In commercial/passenger vehicle turbocharger applications, Exhaust Gas Recovery Systems (EGRS), and other temperature elevated applications; overall system costs can often be significantly reduced.

The assemblies are suited for applications requiring low friction, low moisture absorption and extended wear. The design is also chemical resistant and survives in high vibration environments.

The HP Series is the latest addition to our broad line of linkage products and motion control solutions.



【 Description 】

• Industrial precision rod ends

• Design for high temperature operation

• Qualified for high performance capability in dirt, vibration, and long cycle life



【 Design/Applications 】

• Engine controls

• Heating controls and switches

• Precision positioning and linkages

• Sensor controls and linkages

• Exhaust systems

• Hybrid vehicles



【 Drawing 】

HOT Race High Temperature Stainless Steel Rod Ends And Linkages 0



【 Operational Temperature 】

HOT Race High Temperature Stainless Steel Rod Ends And Linkages 1



【 Stud Detail 】

HOT Race High Temperature Stainless Steel Rod Ends And Linkages 2



【 Loading Characteristics 】

HOT Race High Temperature Stainless Steel Rod Ends And Linkages 3



【 Part Number Definition 】

HOT Race High Temperature Stainless Steel Rod Ends And Linkages 4

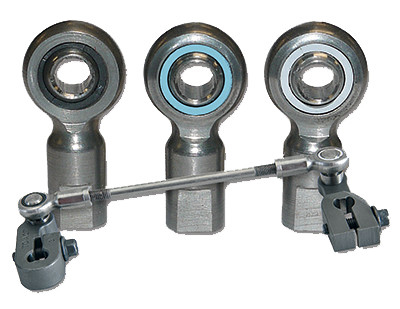

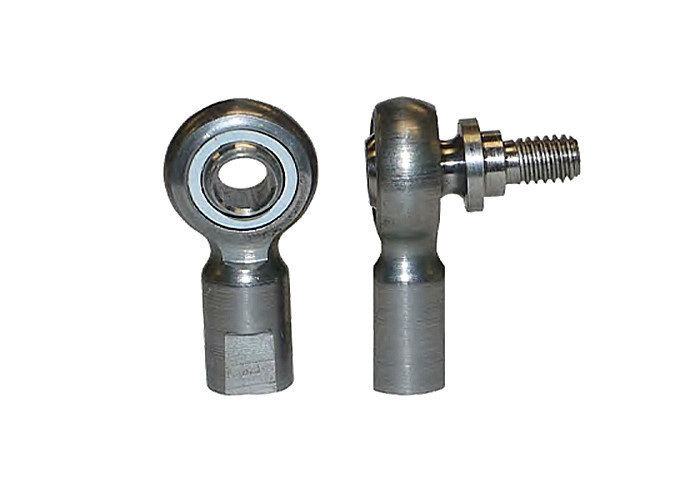

  【 Real Picture 】

HOT Race High Temperature Stainless Steel Rod Ends And Linkages 5
