Zinc Plated Angle Joint M8 Ball Joint / Female Rod End Ball Joint Customized Size

Carbon Steel Zinc Plated Angle Joint M8 Ball Joint

【 Product Description 】

【 Material 】

1) Ball socket: Carbon steel

    Ball stud: Carbon steel

    Outer/Inner circlip : spring steel

2) Dust shield : neoprene ,work on -40~120℃ temperature(excellent performance).

     - Surface : galvanized,passivated in zinc/clear or zinc/yellow

     - Optional material for all Angle joints: stainless steel 304 / Aluminium

     - Notes :

     1. A,B,C type without outer circlip on the ball socket.

         AS,BS,CS type with outer circlip on the ball socket.

     2. Left-hand thread in the ball socket is possible ; Dust shield upon customer’ request .

     3. There is spanner width for type C and CS on the ball stud.

The manufacturer reserve the right to supply the ball socket with or without spanner surface. Customer can choose which one to use.

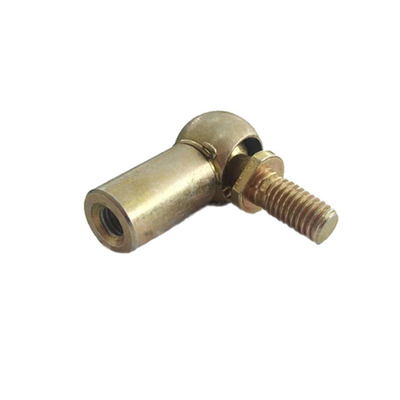

【 Real Picture 】
