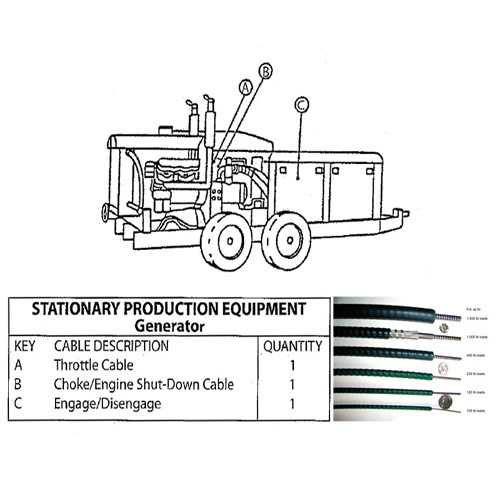

Mechanical Push Pull Gear Shift Cable For Stationary Production Equipment
【 Product Description 】
We offer a full range of push-pull controls that provide a means of transmitting linear motion from one location to another. They offer easy of installation as well as superior performance.
Each of our push pull control cables for industrial purposes feature super rigid structuring and various lengths, depending on your requirements. Additionally, these products are easy to install for repair jobs, maintenance or construction. Perfect for industrial vehicles and purposes, all of our goods are flexible enough to be used around corners, or to run along walls with small openings. Best of all, they are able to withstand weather, corrosion and environmental damage.
【 Cable Considerations 】
There are many factors that affect cable operation and performance.
Please consider the following when planning your cable applications.
Bend Radius: All cables have a minimum bend radius that should not be exceeded (see push-pull cable specifications).
Any excessive bends or kinks will prevent the cable from operating properly.
Total Degrees of Bend: As the degrees of bend increase, cable efficiency decreases.Keep the bend radius as large as possible and the degrees of bend to a minimum for optimal performance.
Backlash (lost motion): Motion lost between the input end rod and the output end rod is due to factors such as the amount of clearance between the conduit and innermember, applied loads, degrees of bend, overall length and material characteristics.
Efficiency: The amount of force lost between the input load and the output load is due to factors such as friction, increasing loads, etc. As efficiency decreases, the cable becomes harder to operate.
Length: As length increases, cable efficiency may decrease. Maximum lengths depend on materials, degrees of bend, load, etc.
Loads: All cables have limited load capacities (see push-pull cable specifications). Prudent choice of cable capability/size will enhance life and performance.
Environment: Factors such as temperature, moisture, dirt/contamination can significantly affect cable performance and life. Choose our standard Model 5 wiper seal for normal conditions or Model 6 seal for severe environments.

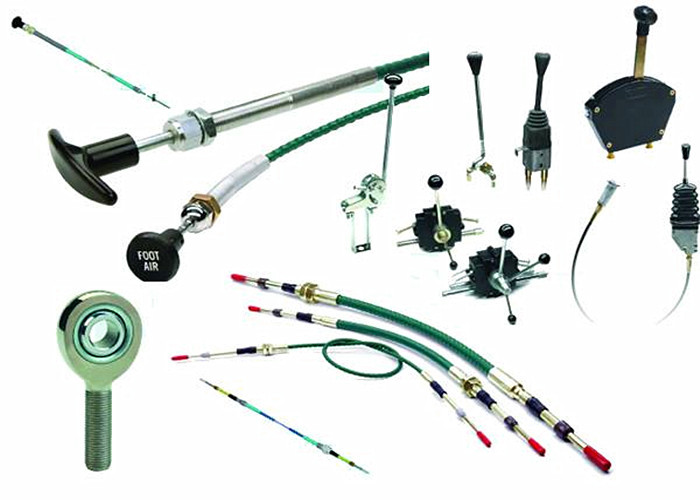

【 Real Picture 】
