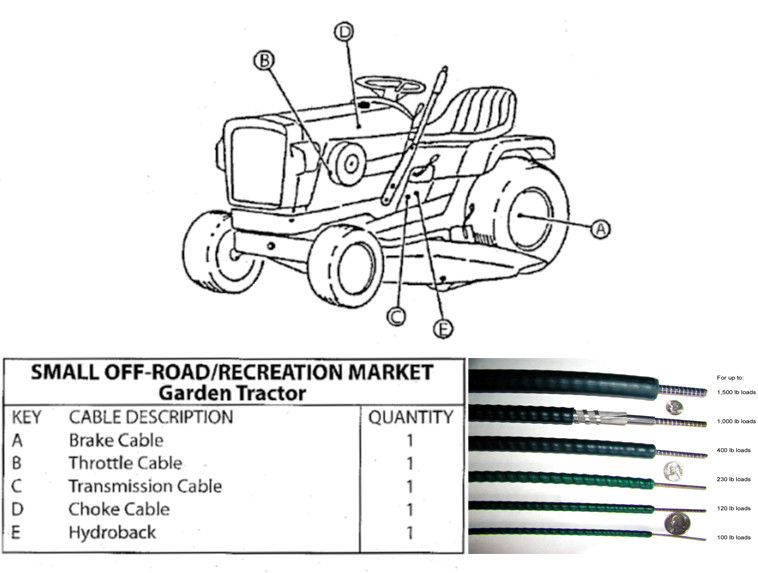

High quality mechanical control cable brake cable throttle cable transmission cable choke cable for garden tractor
【 Product Description 】
We could serve the needs of industrial, agricultural, automotive, marine and production equipment manufacturers, stock and assemble a wide range of push-pull control cables, PTO cables, clutch and brake cables, built specifically to your requirements.
【 How to Identify Push-Pull Cables 】
Your goal is to determine the information required to make up the “ordering code” or part
number. An example of a typical ordering code is 173-V-TG-3-144.
Step 1:
Determine the “duty” (size) of the cable by the diameter and threads of the end rods. V = 10-32, L = 1/4-28, M = 5/16-24, H = 3/8-24.(Very light duty; Light duty; Medium duty; Heavy duty)
Step 2:
Determine the type of conduit end fittings (conduit caps) for left end and right end. T = Threaded, G = Grooved. TT, GG or TG combinations.
Step 3:
Determine the travel of the end rod. 1" through 6" in one inch increments.
Step 4:
Determine the overall length of the cable.
Step 5:
Determine cable materials depending on usage and conditions.See details of 173, 174, 175 Utility, 313, 314, 315Low Friction EXT and 183, 184 and 185 Low Friction.

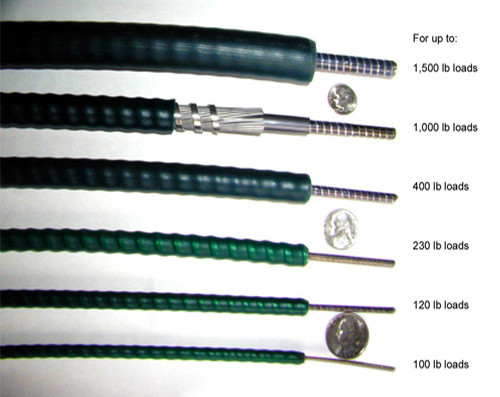

Utility: “The Rugged Gray Cable” is the industry-standard and is designed for a long life under rugged conditions (173, 174, 175).
Low Friction EXT: “The Green Cable” is the proper cable to use when superior efficiency is required. The extruded nylon cover over the innermember works very smoothly with the polyliner (313, 314, 315).
Low Friction: The proper cable to use when superior efficiency is required. The bonded PTFE cover over the inner operating member works very smoothly with the plastic liner.
【 Main Products 】
We can not only custom the cables but aslo can provide the raw material such as conduits, inner member and fittings and so on.In case that your customer has some non-standard item requirement, or you want to lower down some items’ cost by purchasing from China instead, please feel free to contact us. I hope we have a chance to cooperate.
