【 Design 】

Conduit:
Utility: Gray plastic covering. Used on 173, 174 & 175 series cables.
Low Friction EXT: Green plastic covering. Used on 313, 314, 315, 183, 184 & 185 controls.

Innermember:
Made of flexible 1x19 carbon strand, armored with a swaged steel jacket for smoothness and compression strength.
173 — Carbon steel jacket.
174 & 175 — Stainless steel jacket.
313, 314 & 315 — Extruded nylon cover over carbon steel jacket.
183, 184 & 185 — PTFE cover.

Lubrication:
All standard controls are lubricated during construction with carefully selected compounds to provide optimum performance. No further service is necessary or recommended.

End Rods:
All end rods are 300 series stainless steel burnished to a flawless finish.

Wiper Seals:
Designed to prevent entry of moisture and contamination into the support tube and provide a bearing surface for the end rod. Improved Model 5 seals (brown) are standard and Model 6 seals (gray) are optional for severe conditions.

Support Tube and Swivel Seal:
The swivel joint between the support tube and conduit cap is designed to allow 8 degrees swivel from control center line.
Plated steel — 173, 313 controls.
Stainless steel — 174, 175, 314, 315, 184 & 185 controls.
The swivel seal protects this joint from entry of moisture and contamination.

Conduit Caps: Threaded for bulkhead installation or grooved for clamp application.
Plated steel — 173, 174, 313, 314, 183 & 184 controls.
Stainless steel — 175, 315 & 185 controls.

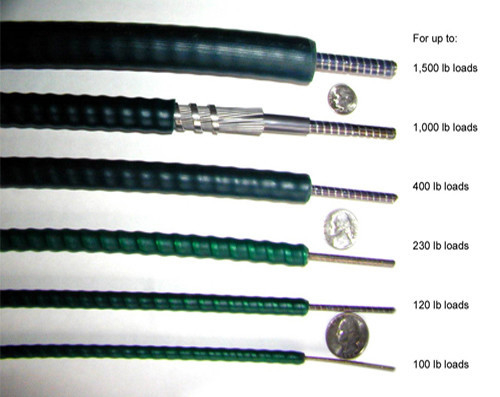

【 Real Picture 】
