Yellow Zinc - Plated Stainless Steel Ball Joint With Ss Spring For Cable Assemblies

10 Piece/Pieces
MOQ
Negotiation
Price
Yellow Zinc - Plated Stainless Steel Ball Joint With Ss Spring For Cable Assemblies
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Push-Pull Cable 10-32 Quick Release Ball Joint End
Material: Low Carbon Steel, Zinc Plated
Applications: Cable Assemblies
Diameter: 10-32 Thread
Range Of Temperatures: 60°F — 250°F(-51°C — 121°C)
Package: Carton Or Wood Case
Highlight:

rod end ball joint

,

universal ball joint

Basic Infomation
Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: SS
Payment & Shipping Terms
Packaging Details: carton or wood case
Delivery Time: 7-40 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece/Pieces per Month
Product Description



BALL JOINT WITH SS SPRING, INNER SCREW 10-32TPI, OUTER SCREW ¼ x28TPI, YELLOW ZINC-PLATED



【 Product Description 】

Push/Pull quick release ball joint end for use with throttle linkages. 10-32 female thread on bottom and 10-32 male thread (3/16) for the stud. It fits both the clip style and bulk head style #3 push/pull brands such as Control Cables, Morse Cables, IDI, Latest Rage, or EMPI.

Originally push/pull cables came from the Military industry. When they say #3, -3, or dash 3 they are referring to the diameter of the threaded ends of the cable which are 3/16 inch diameter 10-32 thread. Or if they say #4, -4, or dash 4 they are referring to the diameter of the threaded ends of the cable which are 1/4 inch diameter 28 thread.



【 Material 】
Ball Stud
• Low Carbon Steel, Heat Treated
• Zinc Plated, Yellow DichromateTreated
Sleeve
• Low Carbon Steel
• Zinc Plated, Yellow Dichromate Treated
Body:
• Low Carbon Steel
Spring:
• Stainless Steel
【 Applications 】
Light to medium-duty linkage applications, including:
• Cable assemblies
• Light industrial applications
• Agricultural, lawn and garden equipment
• Racing (throttle links)

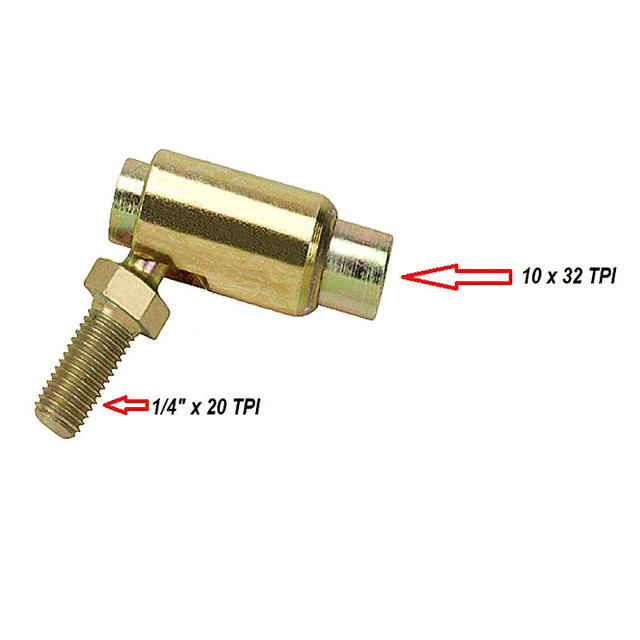

【 Real Picture 】

Yellow Zinc - Plated Stainless Steel Ball Joint With Ss Spring For Cable Assemblies 0
