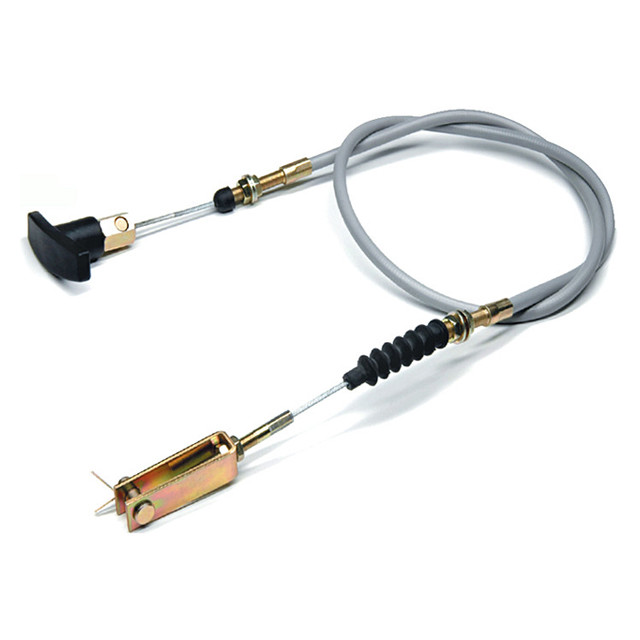

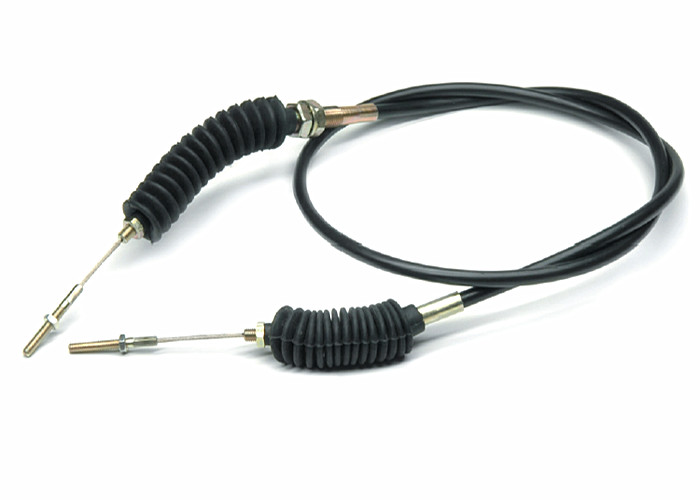

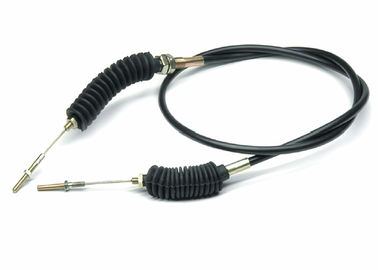

Gear Shift Control Cable Assembly – Pull-Only T-Flex for Transmission Systems
Phidix’s pull-only T-Flex cable assembly is a proven solution for gear shift control systems in industrial vehicles, off-road machinery, and specialized equipment. Designed for applications that require precise unidirectional actuation, this cable ensures reliable shifting performance with minimal backlash and long service life.
Built for Heavy-Duty Shift Applications
In gear systems where smooth engagement and accurate transmission control are critical, a standard push-pull cable may be unnecessary or space-prohibitive. That’s where T-Flex pull-only shift cables excel.
• Transmit force reliably from shift lever to gearbox
• Ideal for spring-return transmissions
• Withstand frequent actuation and outdoor vibration
• Support tight routing paths with 5-inch minimum bend radius
Commonly used in:
• Agricultural vehicles and attachments
• Utility vehicles and material handling carts
• Off-highway equipment
• Construction machines with mechanical shift levers
Compatible with Shift Levers, Knobs & Linkages
Phidix offers a range of end fitting options to match your existing shift mechanism, including:
• Rod ends for lever linkage
• Strap clevis or yoke terminations
• Ball ends or knob adapters for panel control
• Our engineers will help match cable ends to your exact shift assembly configuration.
Available Configurations
| Feature |
Details |
| Load Capacity |
Up to 3000 lb |
| Core |
Carbon Steel, High-Tensile Strand |
| Sheath |
Polypropylene or heat-resistant outer jacket |
| Routing |
5"min. bend radius |
| Customization |
Length, travel, end fittings – all customizable |
For full stroke ranges, cable types, and end configurations, refer to our T-Flex Technical Specification Page.
Same Cable, Different Needs
While this version shows the gear shift use case, the same T-Flex assembly can be:
• Installed in high-heat zones
• Optimized for cost-sensitive builds
• Sized differently depending on stroke and mounting
See specifications or other configurations for system-specific options.
Ready to Build Your Gear Shift Control Cable?
Let us know your transmission system specs—lever distance, actuation stroke, and space constraints—and we’ll configure the ideal pull-only cable for your system.
Contact Phidix to start your configuration.
