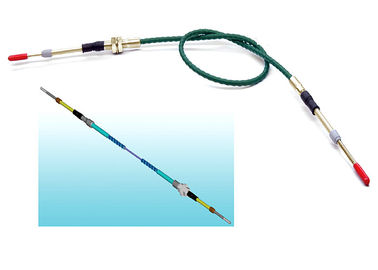

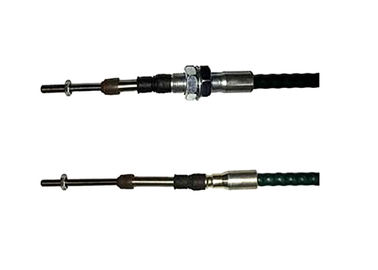

Good Performance Automotive Shifting Control Cable Gear Shift Cable
【 Product Description 】
We offer a full range of push-pull controls that provide a means of transmitting linear motion from one location to another. They offer ease of installation as well as superior performance.
The Bristow® Type control is an economical construction for applications which do not require tight bend radii, and are temperature rated for use from a low of -65°F to a peak of +230°F.
The Utility Style adds a binder wire for structural integrity and a tighter minimum bend radius than other controls.
Low Friction EXT controls have the same advantages as utility with an added plastic covered innermember which provides improved efficiency.
Low Friction controls provide the standard of excellence for industrial controls. Features include a binder wire for structural integrity, tight minimum bend radius, and PTFE covered innermember for the ultimate in efficient, smooth operation. Temperature rated for use from a low of -65°F to a peak of +230°F, they will provide long life in the most demanding applications.
|
【 Features 】 |
【 Material 】 Steel Conduit and Innermember
【 Suggested End Fittings 】 |
【 Push-Pull Standard Specifications 】
Efficiency Factor
• Input Force = (Output Load x Total Degrees of Bend x Efficiency Factor) + Output Load
For Bristow & Utility Efficiency
• Factor = .002
For Low Friction EXT & Low Friction
• EXT Efficiency Factor = .001
Note: Efficiency will be slightly reduced in applications when output load is substantially less than
rated loads.
【 Push- Pull Standard Order Code 】
【 Push-Pull Cable Parameter Table 】
【 Our Service 】
Need a push pull control cables solution for your industrial needs? PHIDIX offer a range of push and pull cables and hardware to fit a range of circumstances.All of our products are made with the highest grade materials that are built to last.
Used for a variety of industrial contexts, these items are convenient for jobs that require smooth movement and minimal risk of corrosion occurring. Our range is so that all technicians can rely on our industrial push pull cables completely, no matter the environment or constructional job at hand.
