Name: Micro Adjust Series Control Cable Assembly Custom Auto Control Cables Head
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: Customized
Price: 500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Flex Control Cable

Applications: General Aviation Aircraft

Travel: 3.00” Maximum

Bend Radius: 3.00” Minimum & 7.00” Minimum

Operating Temp: -65°F — 165°F (input) 230°F (output)

Material: Stainless Steel Or Plated Carbon Steel / Plastic Coated Carbon Steel Conduit And Innermember / Plastic Seal / Plastic Knob

Highlight:

control cable parts

push pull cable parts

Basic Infomation

Place of Origin: China

Brand Name: PHIDIX

Certification: IATF16949

Model Number: Customized

Payment & Shipping Terms

Packaging Details: carton or wood case

Delivery Time: 7 - 40 work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 888 Piece / Pieces per Month

Gallery

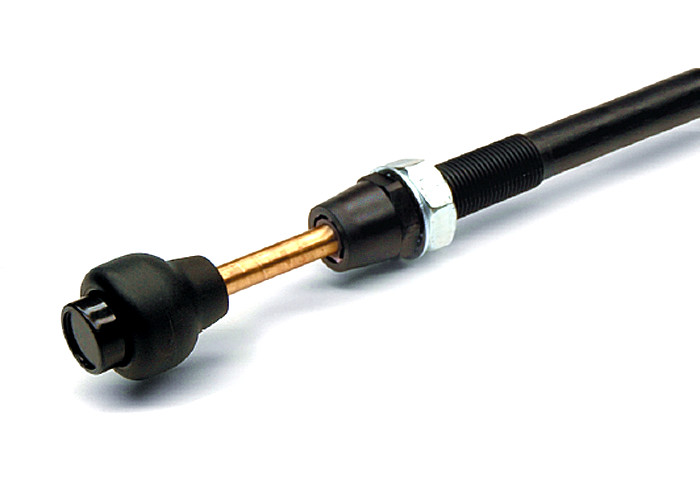

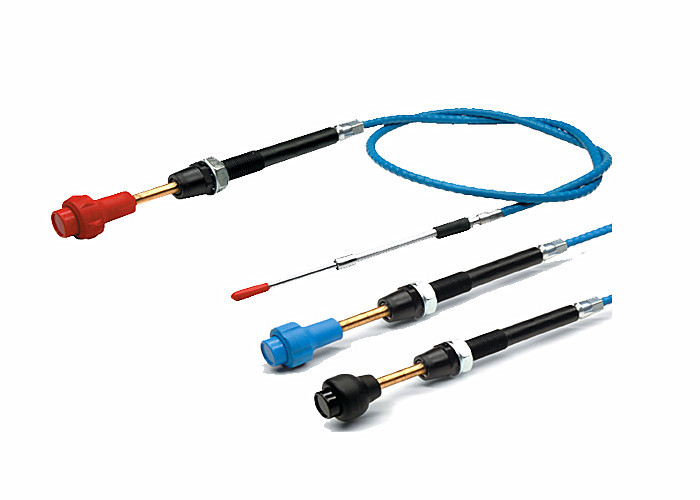

Micro Adjust Series Control Cable Assembly Custom Auto Control Cables Head

Product Description

New Type Micro Adjust Series Control Cable , Micro Adjust Control Head

【Product Description】

We are a designer and manufacturer of an extensive range of aircraft cables. The throttle, mixture, and prop/pitch micro adjust controls are in full compliance with FAA regulations. For adjusting course travel, the knob needs to be pushed or pulled by depressing the center button.
Counter-clockwise rotation of the knob leads to retraction of the output in finite mode, while clockwise rotation leads to its extension. For 1" of linear travel, four and one-half turns are needed. The micro adjust setting is not affected by normal vibration.
In terms of accessories, an optional friction lock is available. This is needed for applications getting impacted by extreme vibration. Also available is a control head only for friction lock.

【 Applications 】
• General aviation aircraft
• Throttle control
• Mixture control
• Prop/pitch control

【 Material 】
• Stainless Steel or Plated Carbon Steel
• Plastic Coated Carbon Steel Conduit

and Innermember
• Plastic Seal
• Plastic Knob

【 Features 】
• Glass filled nylon control head
• Travel: 3.00" maximum
• Bend radius:3.00" minimum & 7.00" minimum
• Operating temp:-65°F — 165°F (input)
230°F (output)

【 Suggested End Fittings 】
• Full Range

【 Micro Adjust Control Heads 】

Standard Output - Throttle 565-550

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius:3.00"

Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end

Lost motion: .030 + .0004 per
degree of bend with ± 5.0lb of force
Normal load: ±20lb
Glass filled nylon control head.

Micro Adjust Series Control Cable Assembly Custom Auto Control Cables Head 0

Wire Rope Output - Throttle 565-557

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"

Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end

Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.

Micro Adjust Series Control Cable Assembly Custom Auto Control Cables Head 1

Solid Wire Output - Throttle 565-558

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 7.00"

Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end

Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.

Micro Adjust Series Control Cable Assembly Custom Auto Control Cables Head 2

Friction Lock Control - Throttle 565-555

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"

Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Lost motion: .030 + .0004 per
degree of bend with ± 5.0lb of force

Normal load: 120lb tension,
25lb compression
Glass filled nylon control head.

Micro Adjust Series Control Cable Assembly Custom Auto Control Cables Head 3

Standard Output - Mixture 565-550

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"

Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end

Lost motion: .030 + .0004 per degree of bend with ± 5.0lb of force
Normal load: ± 20lb
Glass filled nylon control head.

Micro Adjust Series Control Cable Assembly Custom Auto Control Cables Head 4

Wire Rope Output - Mixture 565-557

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"

Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end

Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.

Micro Adjust Series Control Cable Assembly Custom Auto Control Cables Head 5

Solid Wire Output - Mixture 565-558

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 7.00"

Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end

Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.

Micro Adjust Series Control Cable Assembly Custom Auto Control Cables Head 6

Standard Output - Prop/Pitch 565-550

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 7.00"

Operating temperature:
from -65°F — +230°F
Normal load: ±20lb

Lost motion: .030 + .0004 per degree of bend with ± 5.0lb of force
Glass filled nylon control head.

Micro Adjust Series Control Cable Assembly Custom Auto Control Cables Head 7

Wire Rope Output - Prop/Pitch 565-557

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"

Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end

Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.

Micro Adjust Series Control Cable Assembly Custom Auto Control Cables Head 8

Solid Wire Output - Prop/Pitch 565-558

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 7.00"

Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end

Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.

Micro Adjust Series Control Cable Assembly Custom Auto Control Cables Head 9
