Threaded Mount Head Gear Shift Control Cable Head Prop / Pitch 565 - 550 Series

Threaded Mount Head Gear Shift Control Cable Head Prop / Pitch 565 - 550 Series

  • High Light

    marine engine control cables

    ,

    gear shift selector cable

  • Name
    Push Pull Cable / Gear Shift Cable
  • Applications
    General Aviation Aircraft
  • Travel
    3.00” Maximum
  • Minimum Bend Radius
    7.00”
  • Operating Temperature
    -65°F — 165°F (input) 230°F (output)
  • Lost Motion
    .030" + .0004 Per Degree Of Bend With ± 5.0lb Of Force
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7 - 40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece / Pieces per Month

Threaded Mount Head Gear Shift Control Cable Head Prop / Pitch 565 - 550 Series



Standard Output — Prop / Pitch 565 - 550 Series Threaded Mount Control Head Transmission Cable Head



【 Product Description 】

We can design and manufacture a wide range of aircraft cables. Our mixture, prop/pitch, and throttle micro adjust controls are compliant with FAA requirements. Depressing the center button allows pushing or pulling the knob to make course travel adjustments. Rotating the knob counter-clockwise retracts the output in the finite mode, and clockwise extends.

Four and one-half turns results in 1[1] of linear travel. Normal vibration does not affect the micro adjust setting. An optional friction lock accessory is available for applications influenced by excessive vibration. A friction lock (only) control head is also available.Various output configurations are available to suit specific applications. The ordering code and technical descriptions show these choices.



【 Applications 】
• General aviation aircraft
• Throttle control
• Mixture control
• Prop/pitch control

【 Material 】
• Stainless Steel or Plated Carbon Steel
• Plastic Coated Carbon Steel Conduit
 and Innermember
• Plastic Seal
• Plastic Knob



【 Standard Output - Prop/Pitch 565-550 】

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 7.00"
Operating temperature:
from -65°F — +230°F
Normal load: ±20lb
Lost motion: .030 + .0004 per degree of bend with ± 5.0lb of force
Glass filled nylon control head.

Threaded Mount Head Gear Shift Control Cable Head Prop / Pitch 565 - 550 Series 0



【 Micro Adjust Control Heads 】

Threaded Mount Head Gear Shift Control Cable Head Prop / Pitch 565 - 550 Series 1

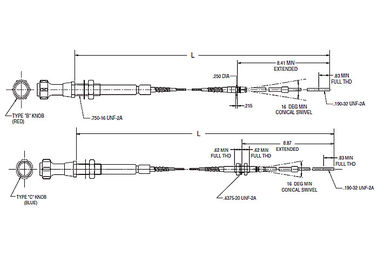

All line art dimensions are represented in inches
