Wire Rope Output Throttle Control Cable Head Mixture 565 - 557 Series For Engineer Machine

1 piece
MOQ
Negotiation
Price
Wire Rope Output Throttle Control Cable Head Mixture 565 - 557 Series For Engineer Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Gear Shift Selector Cable
Normal Load: Unspecified (determined By Installation Configuration)
Travel: 3.00” Maximum
Minimum Bend Radius: 3.00”
Operating Temperature: -65°F — 165°F (input) 230°F (output)
Material: Stainless Steel Or Plated Carbon Steel / Plastic Coated Carbon Steel Conduit And Innermember / Plastic Seal / Plastic Knob
Highlight:

marine engine control cables

,

throttle control cable

Basic Infomation
Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized
Payment & Shipping Terms
Packaging Details: carton or wood case
Delivery Time: 7 - 40 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece / Pieces per Month
Product Description



Wire Rope Output — Mixture 565 - 557 Series Engineering Machines Spare Parts Throttle Control Head



【 Product Description 】

We can design and manufacture a wide range of aircraft cables. Our mixture, prop/pitch, and throttle micro adjust controls are compliant with FAA requirements. Depressing the center button allows pushing or pulling the knob to make course travel adjustments. Rotating the knob counter-clockwise retracts the output in the finite mode, and clockwise extends.

Four and one-half turns results in 1[1] of linear travel. Normal vibration does not affect the micro adjust setting. An optional friction lock accessory is available for applications influenced by excessive vibration. A friction lock (only) control head is also available.Various output configurations are available to suit specific applications. The ordering code and technical descriptions show these choices.



【 Applications 】
• General aviation aircraft
• Throttle control
• Mixture control
• Prop/pitch control

【 Features 】
• Glass filled nylon control head
• Travel: 3.00" maximum
• Bend radius:3.00" minimum & 7.00" minimum
• Operating temp:-65°F — 165°F (input) 230°F (output)



【 Wire Rope Output - Mixture 565-557 】

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"
Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.

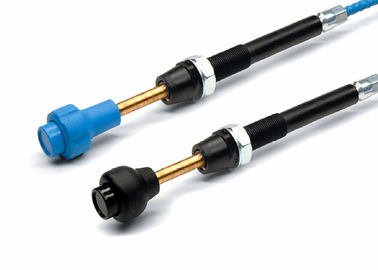

Wire Rope Output Throttle Control Cable Head Mixture 565 - 557 Series For Engineer Machine 0



【 Micro Adjust Control Heads 】

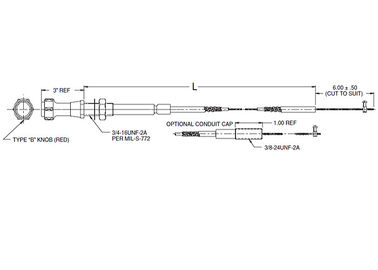

Wire Rope Output Throttle Control Cable Head Mixture 565 - 557 Series For Engineer Machine 1



All line art dimensions are represented in inches
