Mixture 565 - 550 Series Gear Shift Control Cable Push Pull Control Cable Head

1 piece
MOQ
Negotiation
Price
Mixture 565 - 550 Series Gear Shift Control Cable Push Pull Control Cable Head
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Mechanical Control Cable
Lost Motion: .030" + .0004 Per Degree Of Bend With ± 5.0lb Of Force
Stroke: 3.00”
Minimum Bbend Radius: 3.00”
Operating Temperature: -65°F — 165°F (input) 230°F (output)
Normal Load: ± 20lb
Highlight:

marine engine control cables

,

gear shift selector cable

Basic Infomation
Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized
Payment & Shipping Terms
Packaging Details: carton or wood case
Delivery Time: 7 - 40 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece / Pieces per Month
Product Description

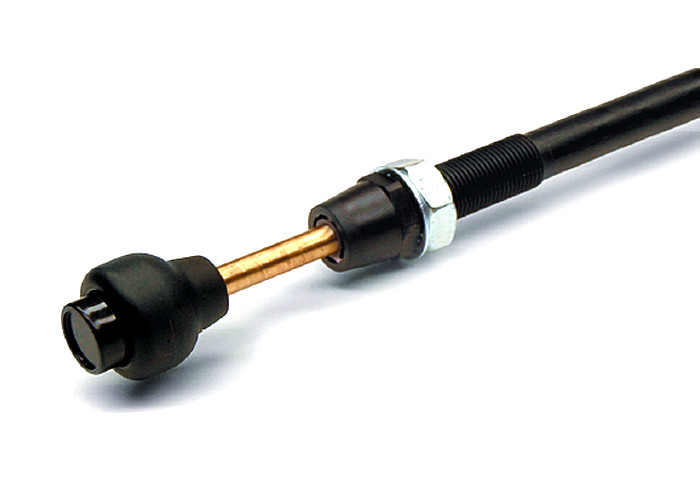

Standard Output — Mixture 565 - 550 Series Mechanical Push Pull Control Cable Head



【 Product Description 】

We can design and manufacture a wide range of aircraft cables. Our mixture, prop/pitch, and throttle micro adjust controls are compliant with FAA requirements. Depressing the center button allows pushing or pulling the knob to make course travel adjustments. Rotating the knob counter-clockwise retracts the output in the finite mode, and clockwise extends.

Four and one-half turns results in 1[1] of linear travel. Normal vibration does not affect the micro adjust setting. An optional friction lock accessory is available for applications influenced by excessive vibration. A friction lock (only) control head is also available.Various output configurations are available to suit specific applications. The ordering code and technical descriptions show these choices.



【 Applications 】
• General aviation aircraft
• Throttle control
• Mixture control
• Prop/pitch control



【 Material 】
• Stainless Steel or Plated Carbon Steel
• Plastic Coated Carbon Steel Conduit

   and  Innermember
• Plastic Seal
• Plastic Knob

【 Features 】
• Glass filled nylon control head
• Travel: 3.00" maximum
• Bend radius:3.00" minimum & 7.00"

   minimum
• Operating temp:-65°F — 165°F (input)
                                230°F (output)



【 Suggested End Fittings 】
• Full Range



【 Standard Output - Mixture 565-550 】

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"
Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Lost motion: .030 + .0004 per degree of bend with ± 5.0lb of force
Normal load: ± 20lb
Glass filled nylon control head.

Mixture 565 - 550 Series Gear Shift Control Cable Push Pull Control Cable Head 0

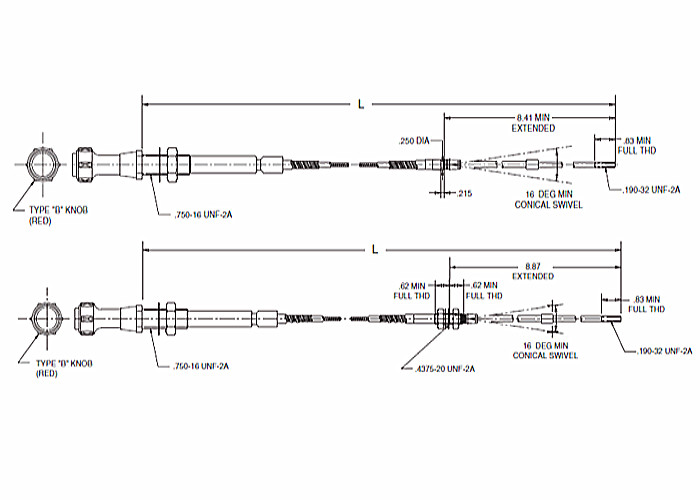

【 Micro Adjust Control Heads 】

Mixture 565 - 550 Series Gear Shift Control Cable Push Pull Control Cable Head 1

All line art dimensions are represented in inches
