S Series Stainless Steel Rod End Ball Joint Quick Disconnect With Spring / Spring Clip

S Series Stainless Steel Rod End Ball Joint Quick Disconnect With Spring / Spring Clip

Products - Stainless Steel Ball Joint
  • High Light

    swivel ball joint

    ,

    universal ball joint

  • Features
    All With Steel Ball Stud, Sleeve And Body
  • Name
    Small Ball Joint
  • Applications
    Light Industrial Applications / Agricultural, Lawn And Garden Equipment / Racing (throttle Links)
  • Range Of Temperatures
    60°F — 250°F(-51°C — 121°C)
  • Material
    Low Carbon Steel, Zinc Plated
  • Package
    Carton Or Wood Case
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    S
  • Minimum Order Quantity
    10 Piece/Pieces
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7-40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece/Pieces per Month

S Series Stainless Steel Rod End Ball Joint Quick Disconnect With Spring / Spring Clip

  • S Series Stainless Steel Rod End Ball Joint Quick Disconnect With Spring / Spring Clip
  • S Series Stainless Steel Rod End Ball Joint Quick Disconnect With Spring / Spring Clip
Get Price Contact Now



S Series Stainless Steel Rod End Ball Joint Quick Disconnect With Spring / Spring Clip



【 Product Description 】

S Series: spring loaded sleeve, smaller ball joint sizes ,suitable for applications requiring quick disconnect capabilities.

S "quick disconnect" ball joints are especially effective in applications requiring numerous and/or fast assembly/ disassembly of the ball joint. Ball stud, sleeve and body components are produced from low carbon steel and are zinc plated and yellow dichromate treated for extended corrosion resistance. The ball stud is heat treated on all models for extended wear resistance. Right and left-handed thread versions available.



【 Material 】
Ball Stud
• Low Carbon Steel, Heat Treated
• Zinc Plated, Yellow DichromateTreated
Sleeve
• Low Carbon Steel
• Zinc Plated, Yellow Dichromate Treated
Body: S
• Low Carbon Steel
Spring: S
• Stainless Steel

【 Applications 】
Light to medium-duty linkage applications, including:
• Cable assemblies
• Light industrial applications
• Agricultural, lawn and garden equipment
• Racing (throttle links)



【 Other Related Products 】
• SR-G Hardened Steel Housing, Retaining Ring

   with Rubber Grommet
• R-G Steel Housing, Staked Design with Rubber

   Grommet

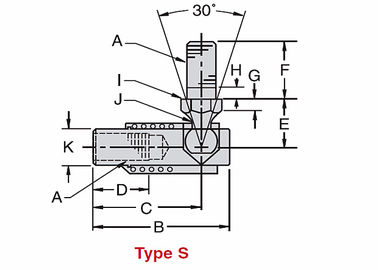

【 S 】
Quick Disconnect with Spring or Spring Clip

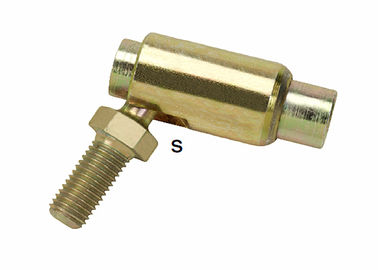

 S Series Stainless Steel Rod End Ball Joint Quick Disconnect With Spring / Spring Clip 0

S Series Stainless Steel Rod End Ball Joint Quick Disconnect With Spring / Spring Clip 1
