Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly

Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly

  • High Light

    gear shift control cable

    ,

    industrial control cables

  • Features
    Custom Engineered Assembly
  • Name
    Clutch Control Cable
  • Applications
    Clutch Controls / Heavy Duty Lanyards
  • Type
    Transmission Control
  • Installed Bend Radius
    Down To 5"
  • Material
    Nylon Covered Innermember , Plastic Covered Conduit
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7 - 40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece / Pieces per Month

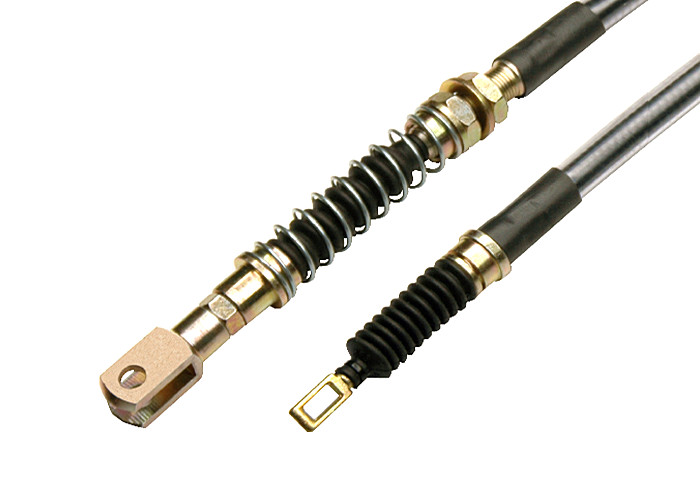

Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly



Universal Throttle Cable , Universal Pull - Only Clutch Cable Control Cable Assembly Mechanical Control Cable



【 Product Description 】
A flexible control designed to transmit pull motion between two mechanical devices without the use of rods, bellcranks, or other rigid mechanical linkage. Pull controls are specifically designed for applications which require a high load capability and low deflection. The cable often used for operating a vehicle parking brake is a typical example. Simple to install and easy to maintain, versatile pull controls are found on many types of mechanical equipment.



【 Applications 】
• Clutch controls
• Heavy duty lanyards


【 Added Features 】
• Sealed
• Economical
• Lubed for Life

【 Features 】
• Custom engineered assembly
• Installed bend radius down to 5"
• Nylon covered innermember
• Plastic covered conduit


【 Material 】
• Nylon Covered Innermember
• Plastic Covered Conduit



【 Pull-Only Clutch Specifications 】
High quality replacements for most cab-over engine vehicles and other similar applications.
Built to specifications by your local cable assembler.



Generic clutch replacement cables HD conduit, special clutch innermember
Part No. CA235-A-L (5/16-24 end rods)
Part No. CA236-A-L (3/8-24 end rods)



Order Code: A = Conduit length; L = Length overall

Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly 0



General Motors® style clutch cable. 1500lb brake conduit and innermember
Part No. CA270-XXX (XXX = Dash number, see table below)

Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly 1

Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly 2

GM is a registered trademark of General Motors.



General Motors® style clutch cable. 1500lb brake conduit and innermember
Part No. CA271-A-L (A = Conduit length; L = Length overall)

Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly 3



Truck® style clutch cable. HD conduit and special clutch innermember
Part No. CA312-A-L (A = Conduit length; L = Length overall; see table below)

Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly 4

Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly 5



Truck® style clutch cable. HD conduit and special clutch innermember
Part No. CA312-A-L (A = Conduit length; L = Length overall)

Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly 6

All line art dimensions are represented in inches

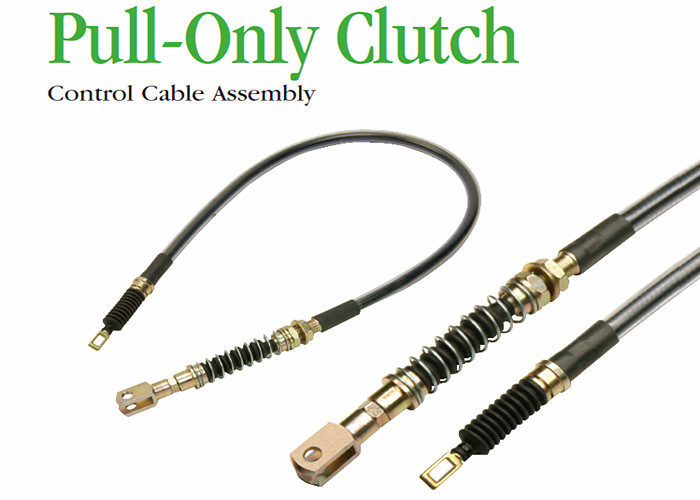

【 Pull- Only Clutch 】
High Performance Clutch Cables



See “Push-Pull Cable Specifications” for mid-travel dimensions.
HD conduit, brake/clutch innermember 500lb pull-only operating load.



Order Code: T = Travel 2"- 6" L = Length overall



Part No. A183-400-T-L (5/16-24 end rods MD) Grooved-Grooved
Part No. A183-111-T-L (3/8-24 end rods HD) Grooved-Grooved

Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly 7



Part No. A183-401-T-L (5/16-24 end rods MD) Grooved-Threaded 11/16-16
Part No. A183-110-T-L (3/8-24 end rods HD) Grooved-Threaded 7/8-14

Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly 8



Part No. A183-402-T-L (5/16-24 end rods MD) Threaded-Threaded (both ends 11/16-16)
Part No. A183-104-T-L (3/8-24 end rods HD) Threaded-Threaded (both ends 7/8-14)

Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly 9



All line art dimensions are represented in inches
