Brake Control Cable Assembly Pull Only With Optional Threaded End Rod

Brake Control Cable Assembly Pull Only With Optional Threaded End Rod

  • High Light

    push pull cable assemblies

    ,

    push pull cable parts

  • Name
    Control Cable Assembly Pull Only Brake Control Cable With Optional Threaded End Rod
  • Applications
    Park Brakes
  • Material
    Carbon Steel And Plastic
  • High Load Capacity
    1500lb Loads
  • Low Deflection
    3000lb Loads
  • Installed Bend Radius
    Down To 5"
  • Type
    Transmission Control
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7 - 40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece / Pieces per Month

Brake Control Cable Assembly Pull Only With Optional Threaded End Rod



Control Cable Assembly Pull Only Brake Control Cable With Optional Threaded End Rod



【 Product Description 】

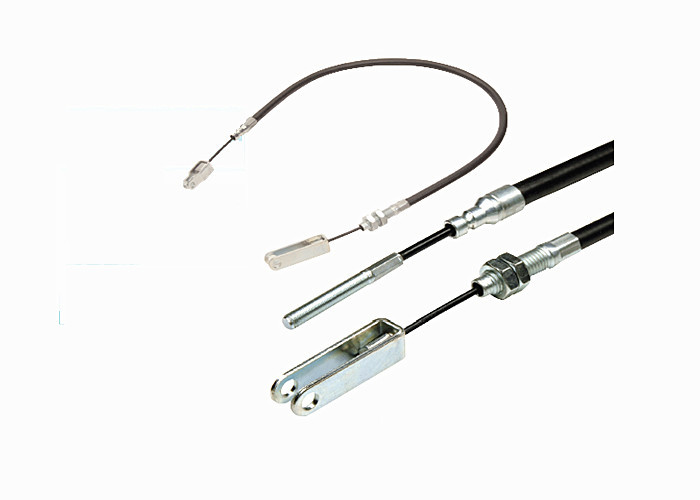

A flexible control designed to transmit pull motion between two mechanical devices without the use of rods, bellcranks, or other rigid mechanical linkage. Pull controls are specifically designed for applications which require a high load capability and low deflection. The cable often used for operating a vehicle parking brake is a typical example. Simple to install and easy to maintain, our versatile pull controls are found on many types of mechanical equipment.



【 Features 】
• High load capacity 1500 allows up to 1500lb loads
• Low deflection 3000 allows up to 3000lb loads
• Installed bend radius down to 5"

【 Other Related Products 】
• Hand Control Brake
• Clutch



【 Pull-Only Brake 1500lb Series 】

Ultimate Load: 1500lb Minimum Bend Radius: 5”
  Brake Control Cable Assembly Pull Only With Optional Threaded End Rod 0
Grooved End Fittings
Brake Control Cable Assembly Pull Only With Optional Threaded End Rod 1


Threaded End Fittings

48°Clip-Lock End Fitting Clip-Lock End Fitting
 Brake Control Cable Assembly Pull Only With Optional Threaded End Rod 2

Ball End Eye End Cable Stop
Brake Control Cable Assembly Pull Only With Optional Threaded End Rod 3


【 Pull-Only Brake 3000lb Series 】

Ultimate Load: 3000lb Minimum Bend Radius: 7”
  Brake Control Cable Assembly Pull Only With Optional Threaded End Rod 4

Grooved End Fittings
Brake Control Cable Assembly Pull Only With Optional Threaded End Rod 5

Threaded End Fittings 48°Clip-Lock End Fitting Clip-Lock End Fitting
Brake Control Cable Assembly Pull Only With Optional Threaded End Rod 6

Ball End Eye End Cable Stop
Brake Control Cable Assembly Pull Only With Optional Threaded End Rod 7


【 Pull-Only Brake Specifications 】

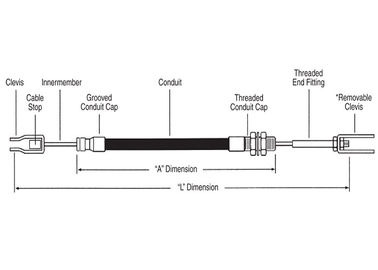

Brake Control Cable Assembly Pull Only With Optional Threaded End Rod 8



Brake Control Cable Assembly Pull Only With Optional Threaded End Rod 9

All line art dimensions are represented in inches



【 Pull-Only Brake Order Code 】

Industrial Pull-Only Brake

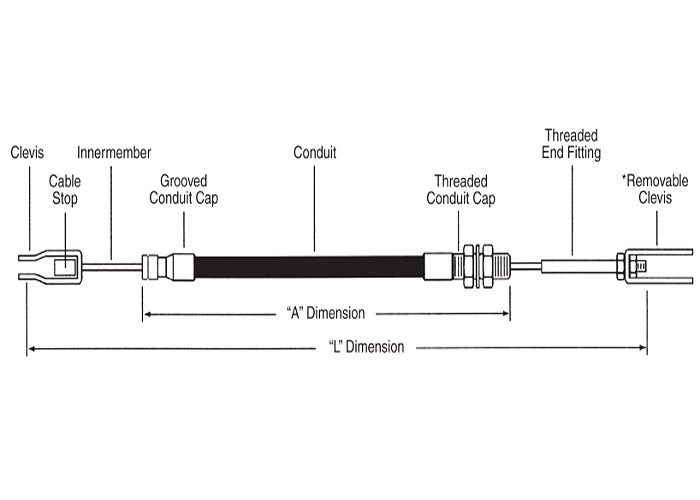

Brake Control Cable Assembly Pull Only With Optional Threaded End Rod 10

To specify a pull-only brake, the following information must be given in the order listed:

1. Left innermember end fitting part

    number.
2. Left conduit end fitting part number.
3. Length “A” between conduit fitting

    reference points in inches.
4. Right conduit end fitting part number.
5. Right innermember end fitting part

     number.





6. Length “L” of innermember assembly

     between fitting reference points in inches.
7. Travel of the innermember in the conduit

      in inches.(Note: dimensions “L” must be

      sufficiently greater than dimension “A” to

      allow desired travel).
*Removable items should be listed separately.

Brake Control Cable Assembly Pull Only With Optional Threaded End Rod 11
