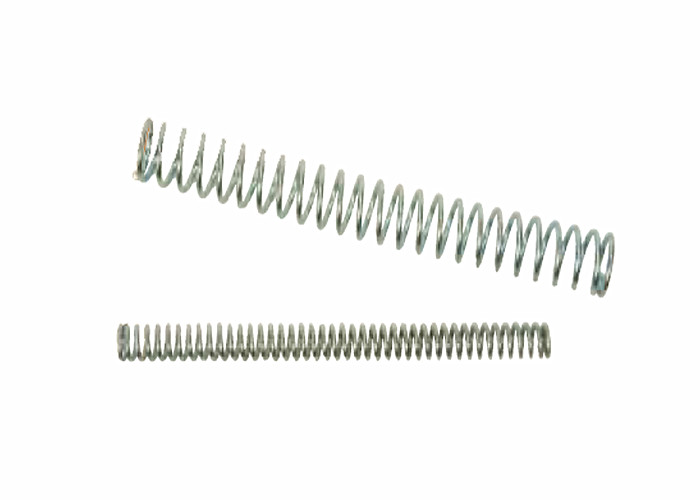

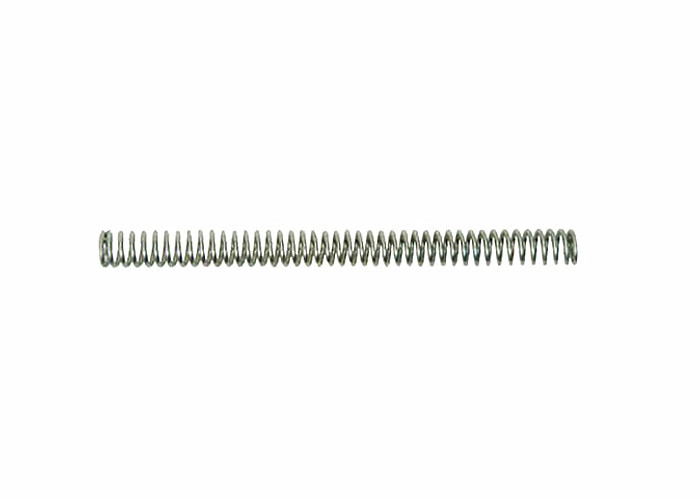

Cable End Fittings Hardware / End Fittings Industrial & Performance — Compression Springs (for brake cables)
【 Product Description 】
These hardware end fitting offers wide array of solutions to many mechanical applications. One of these tools is the compression spring for attachment in brake cables.
This compression spring is offered in five part number namely 175-923-001,175-923-002, 175-923-006 and 175-923-003 with different lengths from 4.3, 5.7, 6.4, 10.0, 12.0 and solid height of 1.00, 2.87, 3.20, 4.60, 6.62.
|
【 Other Related Products 】 |
【 Applications 】
|
【 Compression Springs (for brake cables) 】
| Part Number | Inside Dia. | Outside Dia. | Length | Solid Height | Spring Rate |
| 175-923-001 | .30 | .437 | 12.0 | 4.6 | 3.93lb/inch |
| 175-923-002 | .30 | .437 | 6.4 | 3.20 | 5.75lb/inch |
| 175-923-006 | .30 | .437 | 5.7 | 2.87 | 6.23lb/inch |
| 175-923-001 | .26 | .437 | 10.0 | 6.62 | 15.97lb/inch |
| 175-923-003 | .40 | .500 | 4.3 | 1.00 | 4.47lb/inch |
All dimensions are represented in inches
