Home /Products/Cable End Fittings/High Performance Cable End Fittings Bellows For Use With VLD/LD/MD Cables

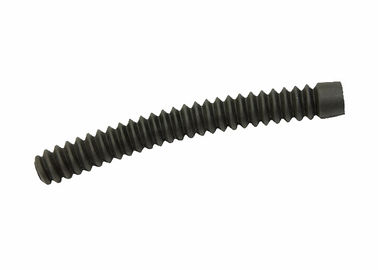

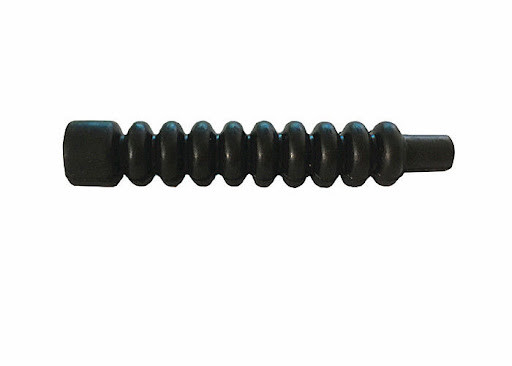

High Performance Cable End Fittings Bellows For Use With VLD/LD/MD Cables

10 Piece/Pieces
MOQ
Negotiation
Price
High Performance Cable End Fittings Bellows For Use With VLD/LD/MD Cables
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Wire Rope End Fittings
For Use With Cable Size: VLD/LD/MD
Compressed Length: 3.0",3.4",4.5"
Extended Length: 8.0,9.7,11.3
Max: 6.0
Material: Plastic
Highlight:

female threaded eye bolt

,

throttle wire stop
Basic Infomation
Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Bellows (trim to length)
Payment & Shipping Terms
Packaging Details: carton or wood case
Delivery Time: 7-40 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece/Pieces per Month
Product Description



Cable End Fittings Hardware / End Fittings Industrial & Performance - Bellows (trim to length)



【 Product Description 】

We offer a wide range of hardware available for most purposes which includes Slip Clevis, Threaded Pivots. The high quality tool also features female threaded eye ends, end rod thread adapters, wire stop and more. The controls has several components to provide a good quality performance such as the spherical bearings, ball joints, manual transition systems, control cable assemblies and modulator assemblies.



【 Other Related Products 】
• Linkages
• Control Cable Assemblies
• Control Heads
• Hand Control Assemblies
• Foot Control Assemblies
• Manual Transmission Shifter



【 Bellows (trim to length) 】

Part

Number

For Use With

Cable Size

Compressed

Length

 Extended Length

Max

Travel
175-522-001 VLD 3.0" 8.0 6.0
175-524-001 LD 3.4" 9.7 6.0
175-525-001 MD 4.5" 11.3 6.0

Maximum recommended travel is shown.
Must be trimmed shorter for use on shorter travel cables.
See cutting matrix #CC-111. Adapter rings to mount bellows to conduit fittings.



【 Adapter Ring 】

Part Number For Use With Cable Size
175-435-072 VLD
175-435-081 LD
175-435-082 MD



All dimensions are represented in inches
