Customized Parking Brake Cable / Long Brake Control Cable Construction Machinery Parts

Custom All Kinds Of Construction Machinery Parts , Brake Control Cable , Parking Brake Cable , Long Brake Control Cable

【 Pull-Only Industrial 】

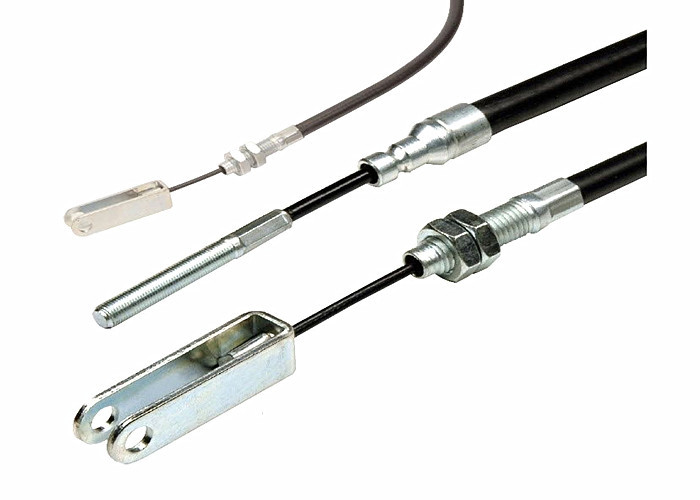

A flexible control designed to transmit pull motion between two mechanical devices without the use of rods, bellcranks, or other rigid mechanical linkage. Pull controls are specifically designed for applications which require a high load capability and low deflection. The cable often used for operating a vehicle parking brake is a typical example. Simple to install and easy to maintain, our versatile pull controls are found on many types of mechanical equipment.

【 Pull-Only Brake 1500lb Series 】

Ultimate Load: 1500lb	Minimum Bend Radius: 5”
Grooved End Fittings
Threaded End Fittings	48°Clip-Lock End Fitting	Clip-Lock End Fitting
Ball End	Eye End	Cable Stop

【 Pull-Only Brake 3000lb Series 】

Ultimate Load: 3000lb	Minimum Bend Radius: 7”
Grooved End Fittings
Threaded End Fittings	48°Clip-Lock End Fitting	Clip-Lock End Fitting
Ball End	Eye End	Cable Stop

【 Pull-Only Brake Specifications 】

All line art dimensions are represented in inches

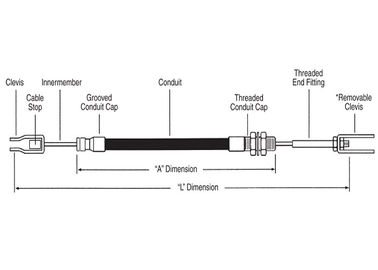

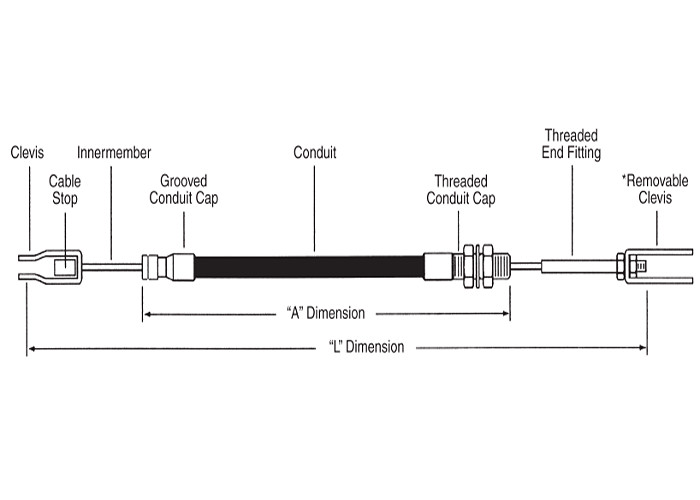

【 Pull-Only Brake Order Code 】

Industrial Pull-Only Brake
To specify a pull-only brake, the following information must be given in the order listed:
1. Left innermember end fitting part     number. 2. Left conduit end fitting part number. 3. Length “A” between conduit fitting     reference points in inches. 4. Right conduit end fitting part number. 5. Right innermember end fitting part      number.		6. Length “L” of innermember assembly      between fitting reference points in inches. 7. Travel of the innermember in the conduit       in inches.(Note: dimensions “L” must be       sufficiently greater than dimension “A” to       allow desired travel). *Removable items should be listed separately.
