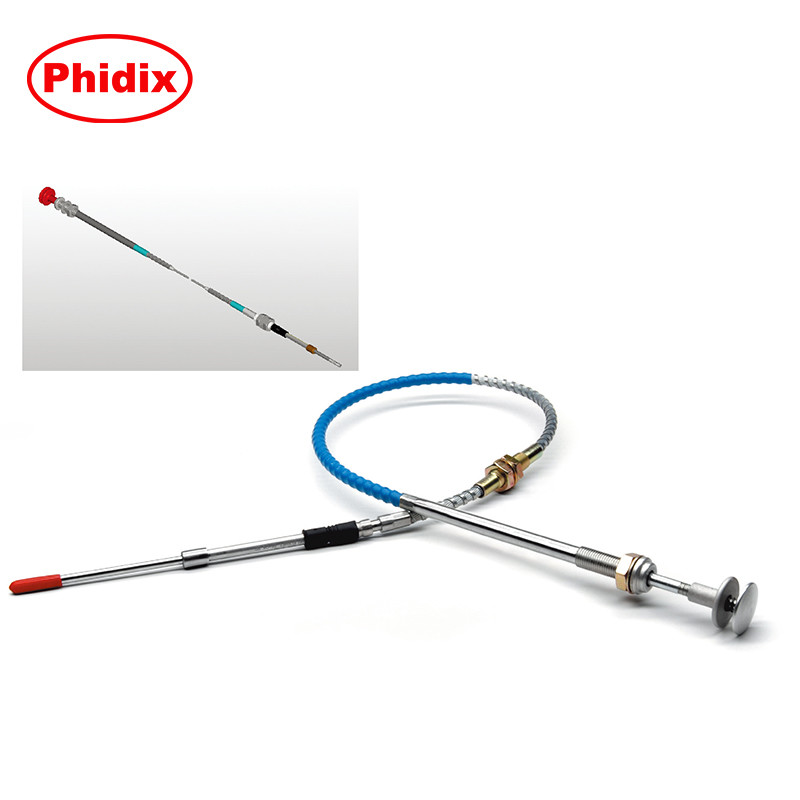

Button Lock Push-Pull Control Head
Product Description

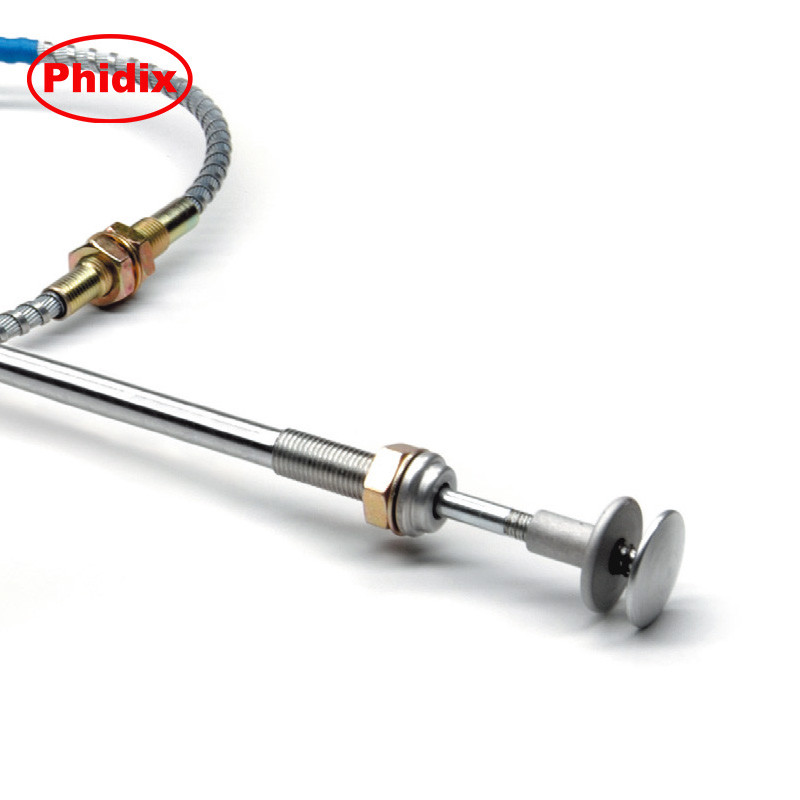

Button lock control heads offer more features than conventional heads. By depressing the center button, cable position can be altered, and therefore offers more options than a fixed control head. They can operate on temperatures ranging from -65 deg;F to 230 deg;F, with a bend radius of 3.00quot; or 7.00quot;. They feature a 120lb tension and a 25lb compression. Made out of stainless steel or plated carbon steel, with plastic seals and knobs, they can be used for heat, vent, A/C and engine cowl control.
Features
• Travel: 3.00" minimum
• Bend radius: 3.00" minimum& 7.00" minimum
• Operating temperature: -65°F — 230°F
• Normal load (with swivel output fitting)
• 120lb tension
• 25lb compression

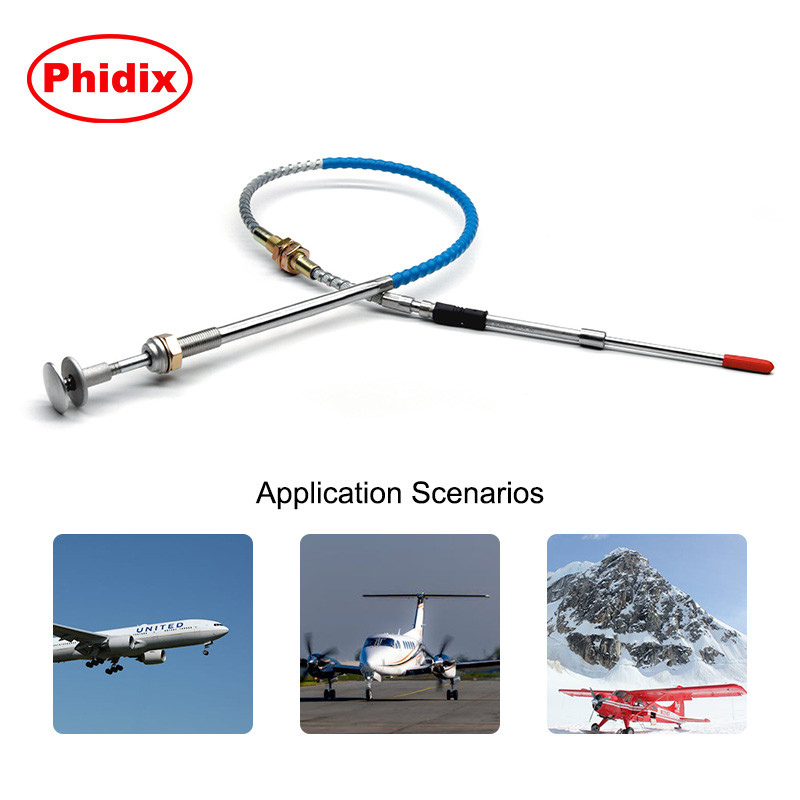

Applications
• Aircraft
• Heat control
• Vent control
• A/C control
• Engine cowl control
Technical Parameters

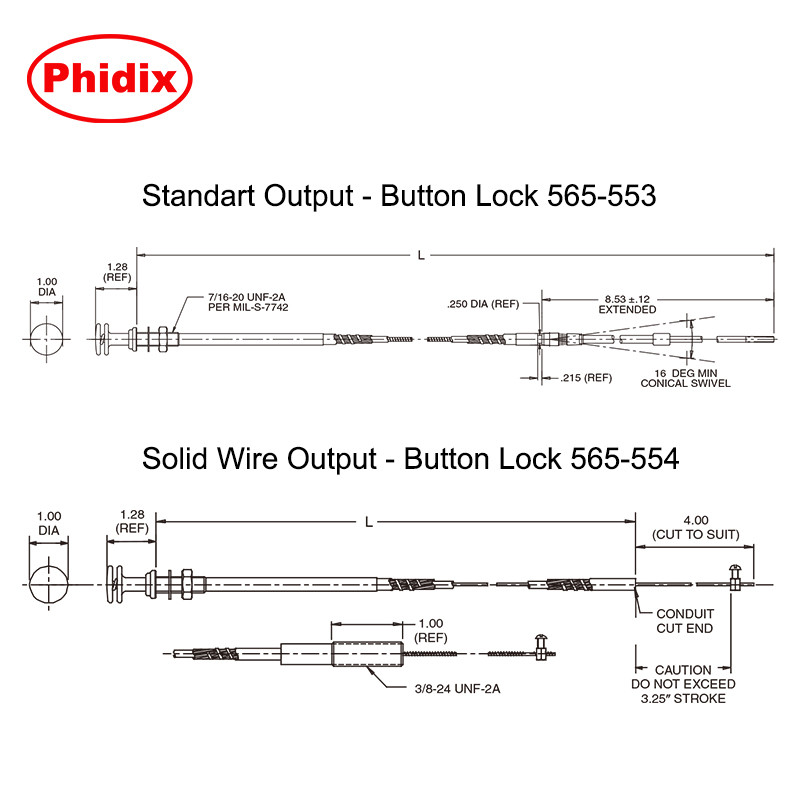

A.Standard Output - Button Lock 565-553
| Notes: (Design Parameters) | Operating temperature: | Normal load: |
| Stroke: 3.00" | from -65°F — +165°F at input end/+230°F at output end |
120lb tension 25lbcompression |
| Minimum bend radius: 3.00" |
B.Solid Wire Output - Button Lock 565-554
| Notes: (Design Parameters) | Operating temperature: |
Normal load: |
| Stroke: 3.00" | from -65°F — +165°F at input end/+230°F at output end |
Unspecified(determined by installation configuration) |
| Minimum bend radius: 7.00" |

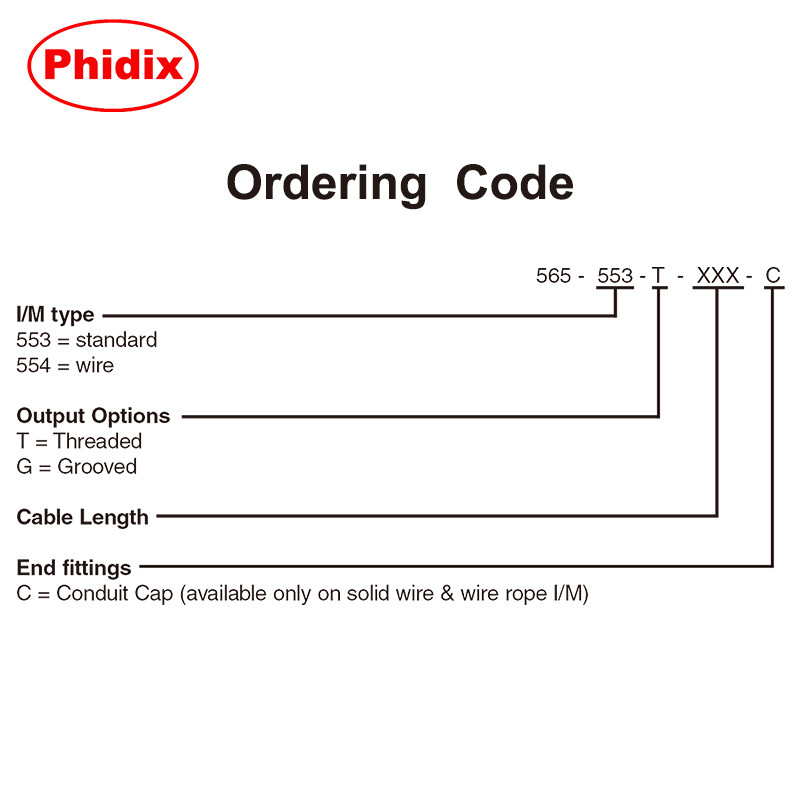

C.Ordering Codes
All line art dimensions are represented in inches
Material
• Stainless Steel or Plated Carbon Steel

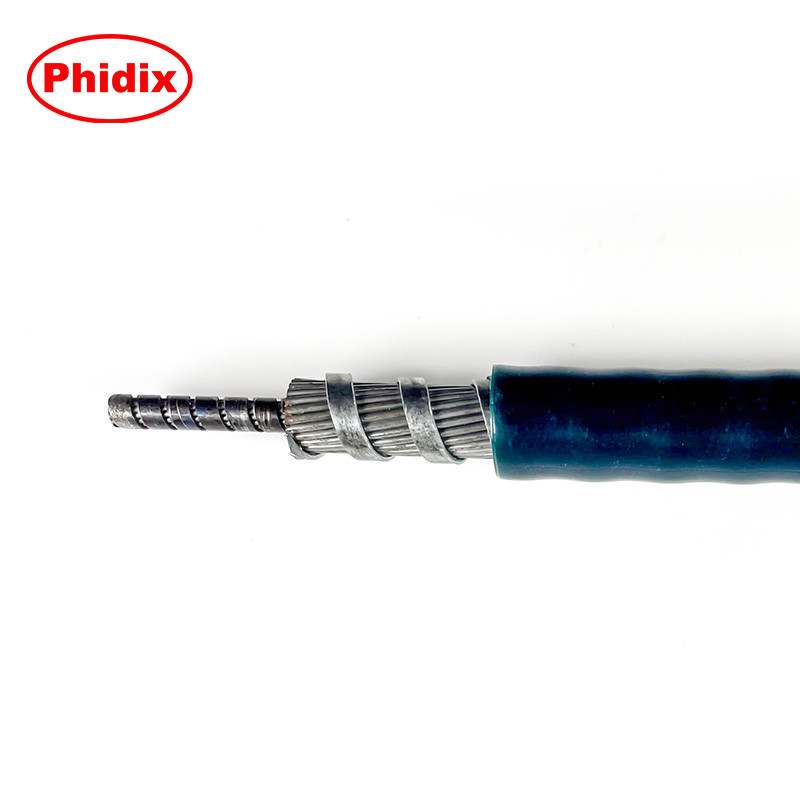

• Plastic Coated Carbon Steel Conduit and Innermember
• Plastic Seal
• Plastic Knob
Packing and Shipping
Ordering Codes — UNF Threads
Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX
Ordering Codes — Metric Threads
Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX
