Steel And Plastic Locking Hand Control Brake Lever Assembly Maximum Travel 2-7/16

Steel And Plastic Locking Hand Control Brake Lever Assembly Maximum Travel 2-7/16

Brand Name: PHIDIX
Model Number: Brake Lever
MOQ: 100 Piece/Pieces
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece/Pieces per Month
Detail Information
Place of Origin:
China
Certification:
IATF16949
Name:
Locking Hand Control Brake Lever Assembly
Material:
Steel And Plastic
Size:
Can Be Customized
Loads:
1000lb
Travel:
2-7/16 Maximum
Applications:
Mobile Equipment / Industrial Equipment
Packaging Details:
carton or wood case
Supply Ability:
888 Piece/Pieces per Month
Highlight:

Locking Hand Control Brake Lever Assembly

,

Plastic Hand Control Brake Lever Assembly

,

Steel Hand Control Brake Lever Assembly

Product Description



Locking Hand Control Brake Lever Assembly



【 Product Description 】

The lever has two distinct positions, over-center and off, which are approximately 90° apart. There is no ratcheting to limit travel or secondary unlocking required for operation. A heat-treated 4130 load link provides an excellent combination of qualities for durability and reliability. An integral adjusting knob allows for setting the initial cable tension, travel, and to compensate for system wear. Side or flange mounted configurations are available for increased adaptability.



【 Material 】

• Coated Carbon Steel

• Non-corrosive Bushings

• Plastic Knob



【 Applications 】

• Mobile equipment

• Industrial equipment



【 Features 】

• Loads: 1000lb

• Travel: 2-7/16 maximum

• Side and flange mounting

• Epoxy finish or electrostatic paint on lever and side plates

• Corrosion-resistant components

• Attachment hardware included

• Tamper-resistant knob (option)

• Weather-resistant switch (option)

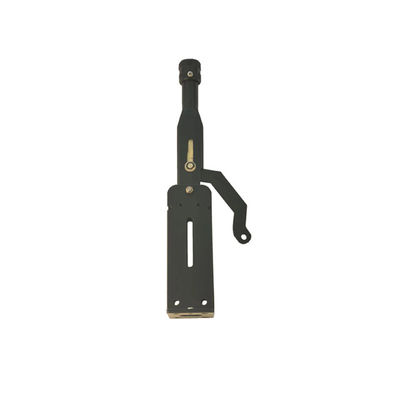

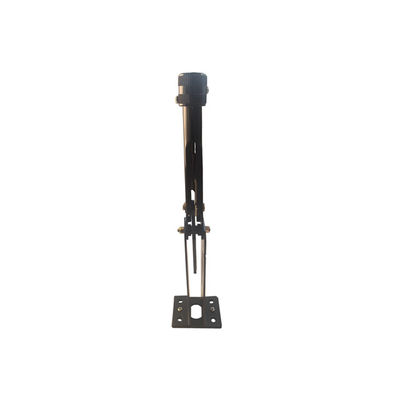

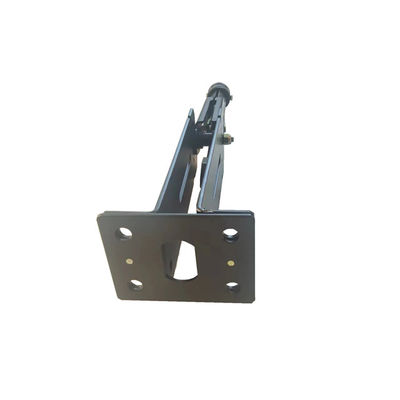

【 Real Pictures 】

Steel And Plastic Locking Hand Control Brake Lever Assembly Maximum Travel 2-7/16 0
