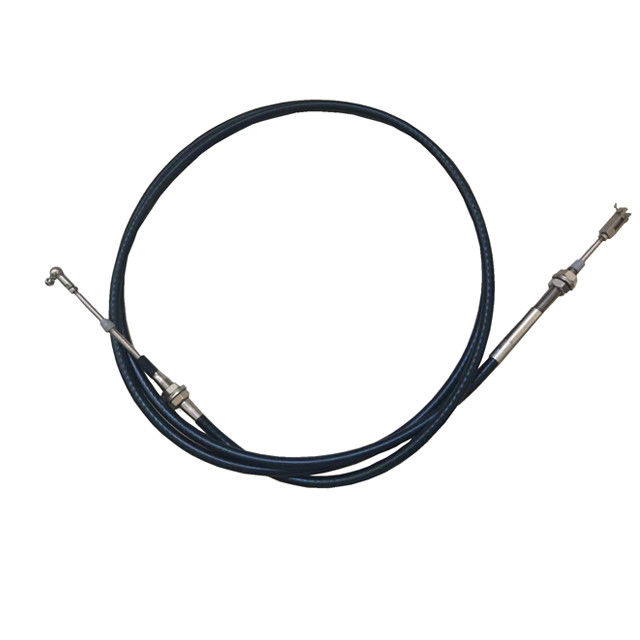

Control Cable Assembly Push-Pull Throttle Cable

Control Cable Assembly Push-Pull Throttle Cable

Brand Name: PHIDIX
Model Number: Customized
MOQ: 100 piece
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece/Pieces per Month
Detail Information
Place of Origin:
Shanghai, China (Mainland)
Certification:
IATF16949
Name:
Control Cable Push-Pull Throttle Cable
Parts Material:
Stainless Steel Or Carbon Steel
Feature:
High Temperature Resistance, Low Loss , Long Service Life
Length:
Can Be Customized
Certificate:
IATF16949
Common Applications:
Truck, Bus, Wheel Loader,Road Roller And Etc.
Cable Color:
Black, Green Or Grey
Character:
Smooth,Tough And Durable
Packaging Details:
carton or wood case
Supply Ability:
888 Piece/Pieces per Month
Highlight:

Carbon Steel Throttle Cable Assembly

,

Push-Pull Throttle Cable Assembly

Product Description



Control Cable Push-Pull Throttle Cable



【 Product Description 】

Push-pull cables are remote controls to transfer push-and-pull movements. In many cases, they replace rigid and agile pole connections. The push-pull cables are high flexible, very smooth and maintenance-free. Furthermore, our push-pull cables are high transmission and three-dimensional applicable. Through the heat- and frost-resistant the cables can be used everywhere. Our push-pull cables are available in galvanized or stainless steel. Besides our low-cost standard products we also offer customized solutions. On request, we deliver the push-pull cables with different hand gears.



【 Features 】

• Constructed of high-quality materials for durability;

• Available in a variety of styles, including twist-to-lock and push-pull;

• Different lengths, diameters, and knob designs available.



【 Cable Considerations 】

There are many factors that affect cable operation and performance.Please consider the following when planning your cable applications.

Bend Radius: All cables have a minimum bend radius that should not be exceeded (see push-pull cable specifications). Any excessive bends or kinks will prevent the cable from operating properly.

Total Degrees of Bend: As the degrees of bend increase, cable efficiency decreases. Keep the bend radius as large as possible and the degrees of bend to a minimum for optimal performance.

Backlash (lost motion): Motion lost between the input end rod and the output end rod is due to factors such as the amount of clearance between the conduit and innermember, applied loads, degrees of bend, overall length and material characteristics.

Efficiency: The amount of force lost between the input load and the output load is due to factors such as friction, increasing loads, etc. As efficiency decreases, the cable becomes harder to operate.

Length: As length increases, cable efficiency may decrease. Maximum lengths depend on materials, degrees of bend, load, etc.

Loads: All cables have limited load capacities (see push-pull cable specifications). Prudent choice of cable capability/size will enhance life and performance.

Environment: Factors such as temperature, moisture, dirt/contamination can significantly affect cable performance and life.



【 Push-Pull Cable Specifications 】

Control Cable Assembly Push-Pull Throttle Cable 0



【 Push-Pull Standard Order Code 】

Control Cable Assembly Push-Pull Throttle Cable 1



【 Real Pictures 】

Control Cable Assembly Push-Pull Throttle Cable 2
