Brand Name: | PHIDIX |
Model Number: | Customized |
MOQ: | 100 piece |
Price: | Negotiation |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 888 Piece/Pieces per Month |
Standard Push-Pull Cables Universal Throttle Cable
Product Description
Push-Pull Cables are dual cable assemblies that offer a full range of push-pull controls which provide a means of transmitting linear motion from one location to another.
If you choose the push-pull cable, in case the spring fails, the throttle linkage will go back to its idle status when you twist and pull the throttle. Providing better machine accessibility when moving hand gears, brakes, sliders, switch controls, couplings and other machine maintenance works.
advantage
• Smooth and high transmission
• For universal use
• Minimal risk of corrosion
• Extreme flexibility – Easy to Install
Note:
Our Cables Push-Pull Cables offer ease of installation as well as superior performance. Each of our cables for industrial purposes features super rigid structuring and various lengths, depending on your requirements. |
Application
• Implement control
• Throttle control
• PTO/4WD activation
• Valve actuation
• Remote battery disconnect
• Remote electrical disconnect
• Transmission shift
• Hydrostatic drives
• Latches
Installation And Maintenance
• Always check and ensure the routing of the original cable and its dimensions to be identical to the new cable before installing.
• Lubricate the cables with some light oil prior to installation
• When routing cables, make sure that there’s enough gap between the cable and any heat source to allow the cables to move.
• Once installed, check the cable’s operation from steering lock to lock to make sure it works both ways (Push/Pull)
• For maintenance, cables should be removed and flushed with a blast of air to prolong cable’s life. However, replacing the cables at regular intervals should always still be the best option.

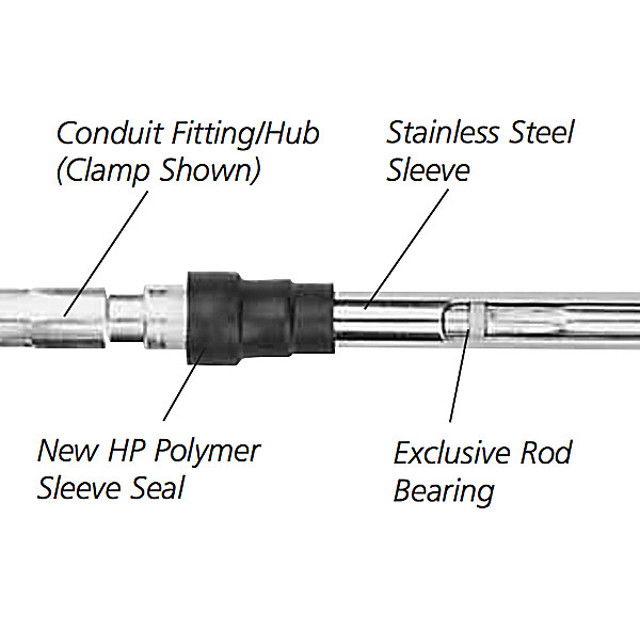

Sealed Cable Systems
Rod and sleeve seals protect against moisture egression. Seals keep strand lubricant inside cable and dirt/water out.
A thick wall polymer jacket is extruded onto the cable casing to protect against water, dirt, and abrasion.

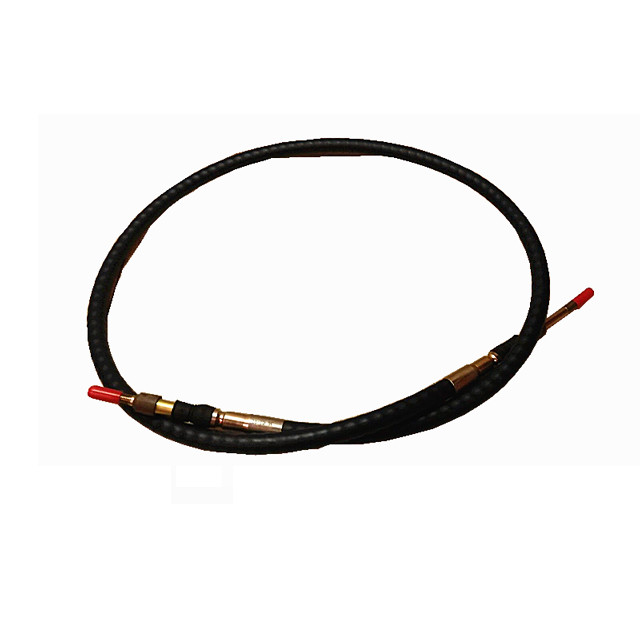

Real Pictures
Packing and Shipping
Ordering Codes — UNF Threads
Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX
Ordering Codes — Metric Threads
Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX
FAQ
Q: What is the brand of the Control Cables?
A: The brand of the Control Cables is PHIDIX.
Q: What is the model number of the Control Cables?
A: The model number of the Control Cables is PHIDIX.
Q: Where is the Control Cables manufactured?
A: The Control Cables is manufactured in Shanghai.
Q: What are the specifications of the Control Cables?
A: Please contact us for the specifications of the Control Cables.
