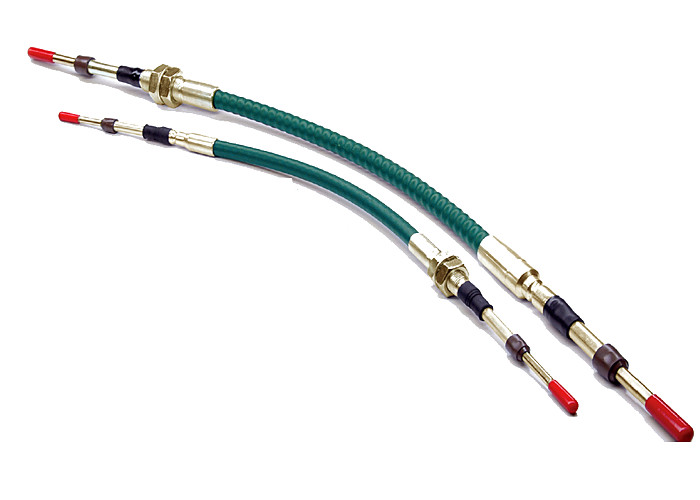

Hot Sale Heavy Truck Power Transmission Gear Shift Control Cable
Product Description
We offer a full range of push-pull controls that provide a means of transmitting linear motion from one location to another. They offer ease of installation as well as superior performance.
The Bristow® Type-control is an economical construction for applications which do not require tight bend radii, and are temperature rated for use from a low of -65°F to a peak of +230°F.
The Utility Style-adds a binder wire for structural integrity and a tighter minimum bend radius than other controls.
Low Friction EXT controls- have the same advantages as utility with an added plastic covered innermember which provides improved efficiency.
Low Friction controls-provide the standard of excellence for industrial controls. Features include a binder wire for structural integrity, tight minimum bend radius, and PTFE covered innermember for the ultimate in efficient, smooth operation. Temperature rated for use from a low of -65°F to a peak of +230°F, they will provide long life in the most demanding applications.
Features
• Typical temperature range
-65°F — 230°F (Bristow)
-65°F — 230°F (Utility)
-65°F — 230°F (Low Friction EXT)
-65°F — 230°F (Low Friction)
• Tough/durable materials
• Long lasting seals
• Environmentally protected
Suggested End Fittings
• Full Range
Technical Parameters
A.Parameter Table
| Type | Minimum Turning Radius (inch) | Stroke Loss Coefficient / Degree |
| VLD | 2 |
0.00015 |
| LD | 3 | 0.0002 |
| MD | 5 | 0.00025 |
| HD | 6 | 0.0003 |
B.Specifications
| Efficiency Factor | For Bristow & Utility Efficiency | For Low Friction EXT & Low Friction |
| Input Force = (Output Load x Total Degrees of Bend x Efficiency Factor) + Output Load | Factor = .002 | EXT Efficiency Factor = .001 |
Note: Efficiency will be slightly reduced in applications when output load is substantially less than rated loads.
C.Ordering Codes
D.Conduits & Inner-Members With Different Loads
Material
• Stainless Steel or Plated CarbonSteel
• Plastic Coated Carbon Steel Conduit and Innermember
• Plastic Seals

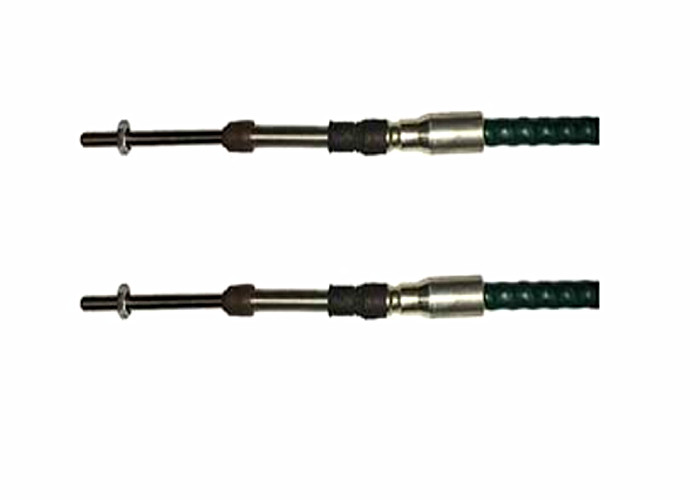

Real Pictures
Our Services
Each of our push pull control cables for industrial purposes feature super rigid structuring and various lengths, depending on your requirements.
Additionally, these products are easy to install for repair jobs, maintenance or construction. Perfect for industrial vehicles and purposes, all of our goods are flexible enough to be used around corners, or to run along walls with small openings.
Best of all, they are able to withstand weather, corrosion and environmental damage.
Packing and Shipping
Ordering Codes — UNF Threads
Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX
Ordering Codes — Metric Threads
Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX
