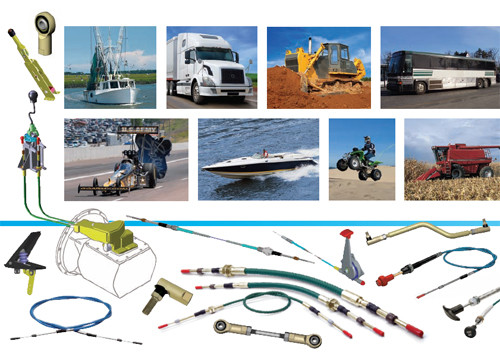

Mechanical Control Cable , Push Pull Control Cable For Construction Machinery

Mechanical Control Cable , Push Pull Control Cable For Construction Machinery

Brand Name: PHIDIX
Model Number: Customized
MOQ: 1 piece
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece/Pieces per Month
Detail Information
Place of Origin:
Shanghai, China (Mainland)
Certification:
IATF16949
Features:
Tough/durable Materials , Long Lasting Seals
Name:
Flex Control Cable
Material:
Stainless Steel Or Plated Carbon Steel
Applications:
Transmission Shift , Implement Control , Hydrostatic Drives
Typical Temperature Range:
-65°F — 230°F
EXT Efficiency Factor:
.001
Packaging Details:
carton or wood case
Supply Ability:
888 Piece/Pieces per Month
Highlight:

custom throttle cable

,

industrial control cables

Product Description



Custom All Kinds Of Construction Machinery Push Pull Cable




Product Description
We offer a full range of push-pull controls that provide a means of transmitting linear motion from one location to another. They offer ease of installation as well as superior performance.
The Bristow® Type control is an economical construction for applications which do not require tight bend radii, and are temperature rated for use from a low of -65°F to a peak of +230°F.
The Utility Style adds a binder wire for structural integrity and a tighter minimum bend radius than other controls.
Low Friction EXT controls have the same advantages as utility with an added plastic covered innermember which provides improved efficiency.
Low Friction controls provide the standard of excellence for industrial controls. Features include a binder wire for structural integrity, tight minimum bend radius, and PTFE covered innermember for the ultimate in efficient, smooth operation. Temperature rated for use from a low of -65°F to a peak of +230°F, they will provide long life in the most demanding applications.





Features

• Typical temperature range
  -65°F — 230°F (Bristow)
  -65°F — 230°F (Utility)
  -65°F — 230°F (Low Friction EXT)
  -65°F — 230°F (Low Friction)
• Tough/durable materials
• Long lasting seals
• Environmentally protected





Suggested End Fittings

• Full Range





Technical Parameters

Technical Parameters Table

Type Minimum Turning Radius (inch) Stroke Loss Coefficient / Degree
VLD 2 0.00015
LD 3 0.0002
MD 5 0.00025
HD 6 0.0003



Mechanical Control Cable , Push Pull Control Cable For Construction Machinery 0



Efficiency Factor For Bristow & Utility Efficiency For Low Friction EXT & Low Friction
Input Force = (Output Load x Total Degrees of Bend x Efficiency Factor) + Output Load Factor = .002 EXT Efficiency Factor = .001

Note: Efficiency will be slightly reduced in applications when output load is substantially less than rated loads.



Orderding Code



Mechanical Control Cable , Push Pull Control Cable For Construction Machinery 1



Conduits & Inner-Members With Different Loads

Mechanical Control Cable , Push Pull Control Cable For Construction Machinery 2





Material

• Stainless Steel or Plated Carbon Steel
• Plastic Coated Carbon Steel Conduit and Innermember
• Plastic Seals





Real Pictures

Mechanical Control Cable , Push Pull Control Cable For Construction Machinery 3



Mechanical Control Cable , Push Pull Control Cable For Construction Machinery 4





Packing and Shipping

Ordering Codes — UNF Threads
Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX
Ordering Codes — Metric Threads
Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX





FAQ

Q: What is the brand of the Control Cables?

A: The brand of the Control Cables is PHIDIX.

Q: What is the model number of the Control Cables?

A: The model number of the Control Cables is PHIDIX.

Q: Where is the Control Cables manufactured?

A: The Control Cables is manufactured in Shanghai.

Q: What are the specifications of the Control Cables?

A: Please contact us for the specifications of the Control Cables.
