Phidix Motion Controls (Shanghai) Co., Ltd. 86-021-37214606 lisa.tu@phidixglobal.com
Custom Control Cables Accessories , Auto Parts & Connections , Rod Ends , Ball Joints

Custom Control Cables Accessories , Auto Parts & Connections , Rod Ends , Ball Joints

  • High Light

    ball bearing rod end

    ,

    metric spherical rod ends

  • Features
    Can Be Used In A Wide
  • Name
    Custom Control Cables Accessories , Auto Parts & Connections , Rod Ends , Ball Joints
  • Material
    Low Carbon Steel , Zinc Plated , Bronze
  • Range Of Temperatures (Including Ultra High Temp)
    30°F — 300°F (-34°C —149°C)
  • Applications
    Mechanical Motion Transfer
  • HS Code
    87084050 / 87084020
  • Package
    Wood Case /carton/ Bubble Film
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    10 Piece/Pieces
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7-40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece/Pieces per Month

Custom Control Cables Accessories , Auto Parts & Connections , Rod Ends , Ball Joints





Custom Control Cables Accessories , Auto Parts & Connections , Rod Ends , Ball Joints



【 Applications 】
Numerous precision mechanical motion transfer devices/applications,
including:
• Industrial equipment
• Precision machinery


【 Features 】
• Oil impregnated bronze raceway delivers longer wear life and lowers maintenance cost (high

   precision, frictionless performance)
• Can be used in a wide range of temperatures (including ultra high temp):
   -30°F — 300°F(-34°C —149°C)
• Offered in studded and right or left-handed versions
• Special custom alloy construction available
• Custom assemblies can be built to your specifications
• Meets ISO 12240 (DIN 648)



【 Material 】
Ball

• 52100 Steel Rc 56 Min.
• Hard Chrome Plated
Body
• Low Carbon Steel
• Zinc Plated, Clear Dichromate Treated
Race
• Sintered Phosphor Bronze
• Oil Impregnated

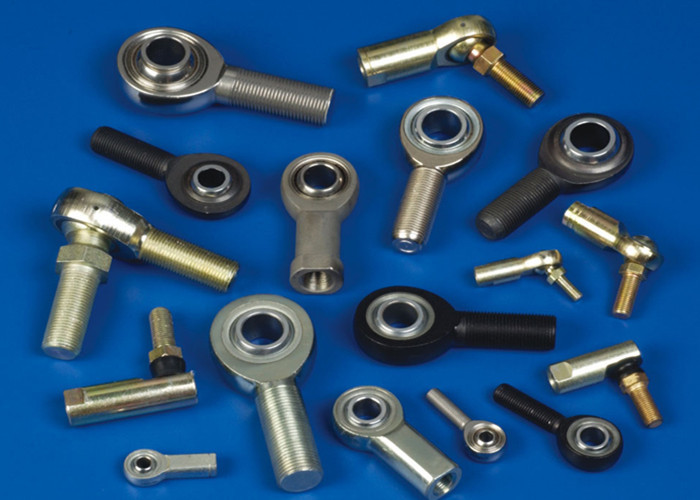

【 Rod Ends Industrial / Commercial
Suitable for many high precision/mechanical motion transfer applications, the Cablecraft DBM/DBF Series offers a four-piece, bronze race design in metric thread sizing. Its oil impregnated bronze raceway delivers precise and extremely low friction performance, leading to longer wear life, higher temperature performance and lower maintenance costs. Ball materials are produced from bearing quality steel that is thru hardened and finish ground, adding to its precision fit and increased wear performance. Body materials are produced from economical low carbon steel and are zinc plated for extended corrosion resistance. Its clear chromate treatment is suited for high visibility exposed surfaces requiring aesthetically pleasing bright metal finishes. It can be used in a wide operating temperature range. Studded and right or left-handed thread versions are available.Grease fittings are optionally available.
The DBM/DBF Series is just one of many within our broad line of industrial/commercial rod ends. For full product line detail, contact us for a comprehensive catalog or visit www.cablecraft.com and download individual product data sheets and other product information.

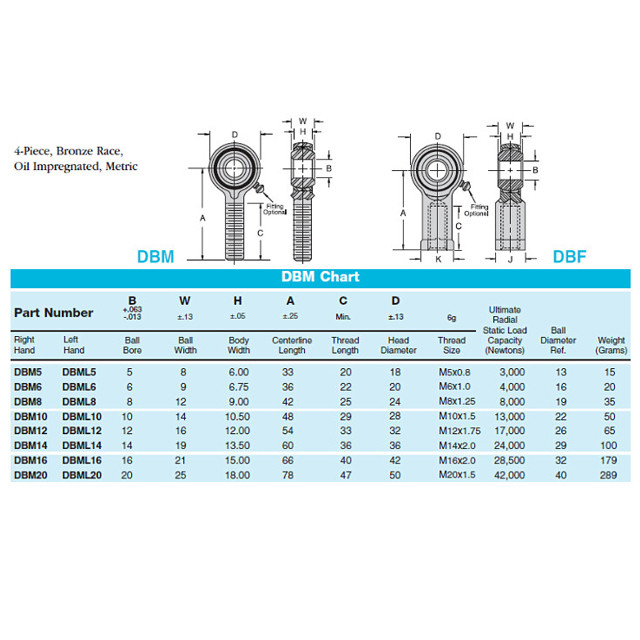

【 DBM/DBF 】

Custom Control Cables Accessories , Auto Parts & Connections , Rod Ends , Ball Joints 0

Custom Control Cables Accessories , Auto Parts & Connections , Rod Ends , Ball Joints 1



Custom Control Cables Accessories , Auto Parts & Connections , Rod Ends , Ball Joints 2



Custom Control Cables Accessories , Auto Parts & Connections , Rod Ends , Ball Joints 3



【 Company Information 】

American TUTHILL Corporation is headquartered in Chicago, has a history of one hundred years of family enterprises and multinational companies, with a wide range of business scope. The company is named by "TUTHILL group" in China. The control group is the independent subsidiary. By the end of 2010, the control group from TUTHILL group split up for independent operation. Control group have factories in the United States, Britain and Germany, offering high-end drive control products and engineering solutions. The product line includes control flexible shaft of the various specifications, cab units and a category range of standard parts, widely used in high-end industrial customer markets, such as luxury bus, heavy truck, aerospace, construction machinery, rail transportation, agricultural machinery, gardening equipment, racing cars, military vehicles, tanks etc. as selection of shift control, throttle cable, clutch cable, brake line, valve and other mechanical transmission control. In China, as imports of high-end brands on behalf of "TUTHILL flexible shaft" with its exquisite craftsmanship and quality, these products have received high reputation from the industry.

PHIDIX company became the partner of TUTHILL China group in the early 2004. And just after the independent of control group, PHIDIX became the only authorized “Global Assembler” certification, responsible for the production, assembly, sales, technical support, after-sales service, acted as the multi functional management and development center. For the convenience of management and provide better service and technical support for the terminal clients, PHIDIX, in September 2011, incorporated the wholly owned subsidiary of "PHIDXI motion control technology (Shanghai) Co., Ltd." for drive control technology R&D, production and operations management. PHIDIX Traing Co., Ltd. Is acted as the imported parts procurement platform. At the same time, it takes the domestic terminal customer development and maintenance tasks as well.



【 Certifications 】

Custom Control Cables Accessories , Auto Parts & Connections , Rod Ends , Ball Joints 4    Custom Control Cables Accessories , Auto Parts & Connections , Rod Ends , Ball Joints 5



【 Our Services

If you are interested in our products,please tell us which model,quality you want to order.
A performa invoice will be made for your order.
We will deliver the product ASAP when we receive your payment.


Please contact us without hesitation, we are pleased to welcome to you!!!

PHIDIX MOTION CONTROLS(SHANGHAI) CO.,LTD
Add: Building #21, Block 9299, Tingwei Road, Jinshan District, Shanghai 201505
Tel: (86-21)37214606/ 07/ 08/ 09
Fax: (86-21)37214610
MP: 13816744282

Website: www.mechanical-controlcable.com
E-mail: info @phidixglobal.com
