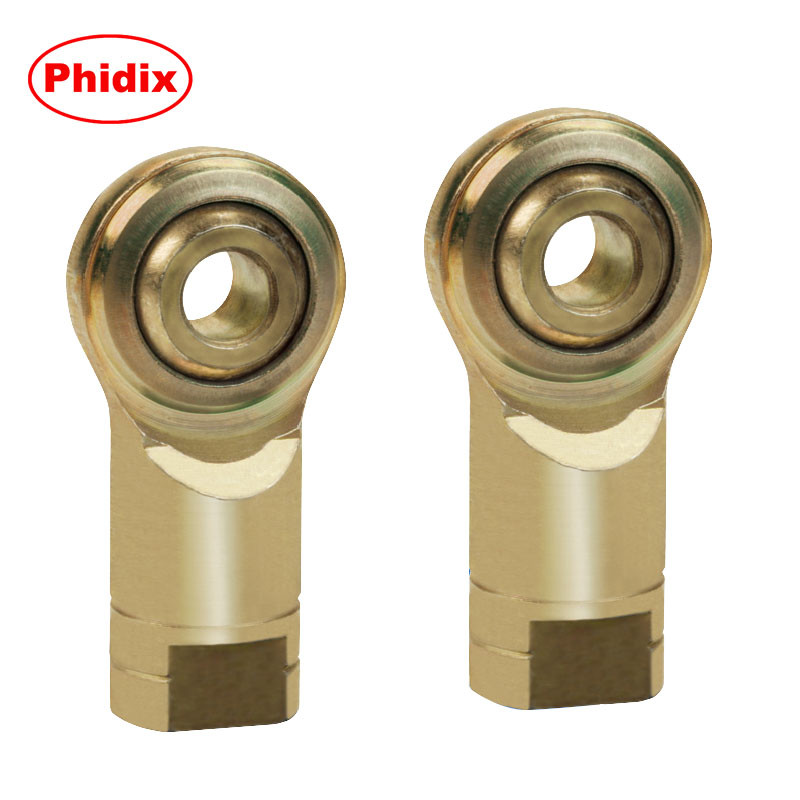

EM - M / EF - M Metric Spherical Rod Ends 2-Piece Metal To Metal For Construction

EM - M / EF - M Metric Spherical Rod Ends 2-Piece Metal To Metal For Construction

Brand Name: PHIDIX
Model Number: EM - M / EF - M
MOQ: 10 Piece/Pieces
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece/Pieces per Month
Detail Information
Place of Origin:
China
Certification:
IATF16949
Features:
Can Be Used In A Wide
Name:
Industrial Rod Ends
Material:
Low Carbon Steel , Zinc Plated
Range Of Temperatures:
-65°F — 250°F (-54°C — 121°C)
Applications:
Construction Equipment / Lawn And Garden / Truck / Bus
HS Code:
87084050 / 87084020
Packaging Details:
carton or wood case
Supply Ability:
888 Piece/Pieces per Month
Highlight:

ball bearing rod end

,

spherical bearing rod ends

Product Description



EM - M / EF - M Stainless Steel Rod Ends / Commercial Rod Ends 2-Piece, Metal to Metal, Metric






Product Description

The 2-piece metal to metal EM-M/EF-M Series are perfect for different kinds of motion transfer applications.

The materials for the ball and the body are made out of low carbon steel. They are zinc plated and treated with yellow dichromate to prevent corrosion. To increase resistance to ball, it is case hardened.

PTFE liner can be added as optional choice (is self lubricating and moisture resistant) to increase durability, reduce maintenance and increase rod end life. PTFE version has an electroless nickel plated ball. The metal rod can succumb to a varied range of temperatures. Different versions of the PTFE lined bearings are available. Grease fittings are also possible as an available option.

There is an oil impregnated bronze raceway helping in longevity of the device while lowering maintenance costs. Used with variable temperature ranges of -30°F — 300°F.





Features

• 2-piece metal to metal design offers economical metric alternative
• Suited for higher axial loads where side loading strength is critical
• Can be used in a wide range of temperatures:-65°F — 250°F (-54°C — 121°C)
• Offered in studded and right or left-handed versions
• Special custom alloy construction available
• Custom assemblies can be built to your specifications
• Meets SAE spec J1259





Applications

Numerous mechanical motion transfer devices/applications, including:
• Construction equipment
• Lawn and garden
• Truck/bus





Other Related Products

• EM/EF Commercial, 2-Piece, Metal to Metal,English
• EM-T/EF-T Commercial, 2-Piece, PTFE Lined,English





Specifications

EM - M / EF - M Metric Spherical Rod Ends 2-Piece Metal To Metal For Construction 0





Performance Comparison

EM - M / EF - M Metric Spherical Rod Ends 2-Piece Metal To Metal For Construction 1

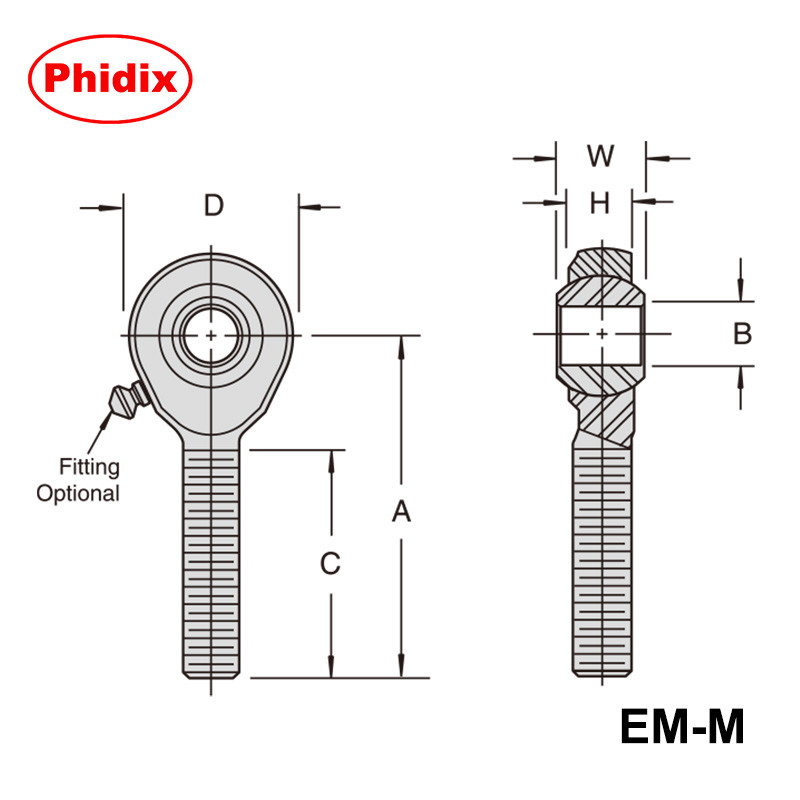

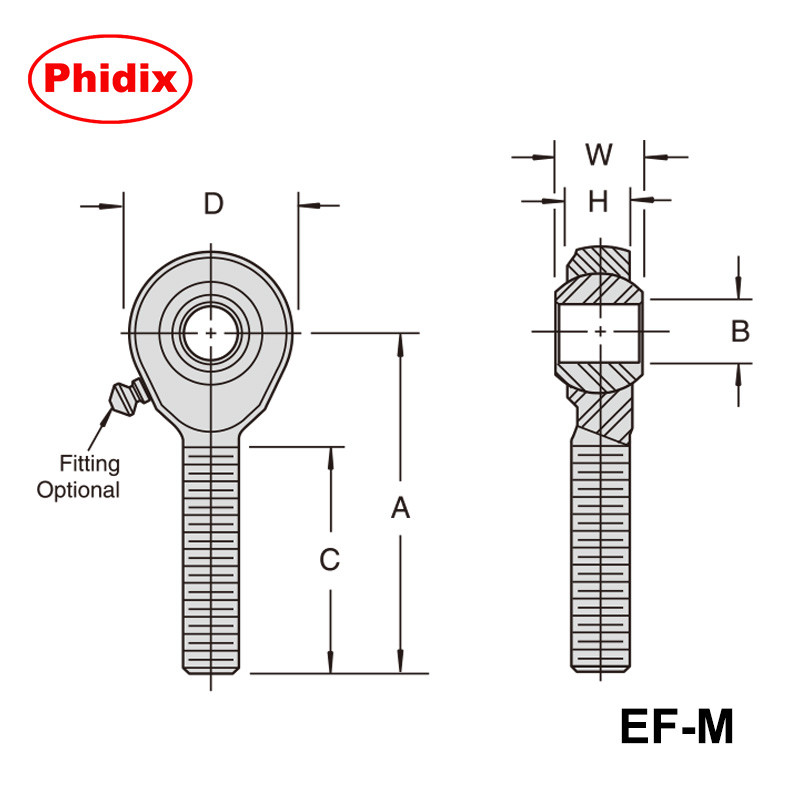

Technical Parameters

Commercial,2-piece, Metal to Metal,Metric

EM - M / EF - M Metric Spherical Rod Ends 2-Piece Metal To Metal For Construction 2

EM - M / EF - M Metric Spherical Rod Ends 2-Piece Metal To Metal For Construction 3

Chart Notes:

1. For standard lubrication fitting, add "Z" to suffix. Example: EM10Z
2. This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S



EM - M / EF - M Metric Spherical Rod Ends 2-Piece Metal To Metal For Construction 4





Material

Ball and Race
• Low Carbon Steel Case Hardened
• Zinc Plated, Yellow Dichromate

Treated
• Electroless Nickel Plated (for PTFE
 version)
Liner (optional)
• PTFE, bonded to body I.D.





Packing and Shipping

Ordering Codes — UNF Threads
Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX
Ordering Codes — Metric Threads
Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX
